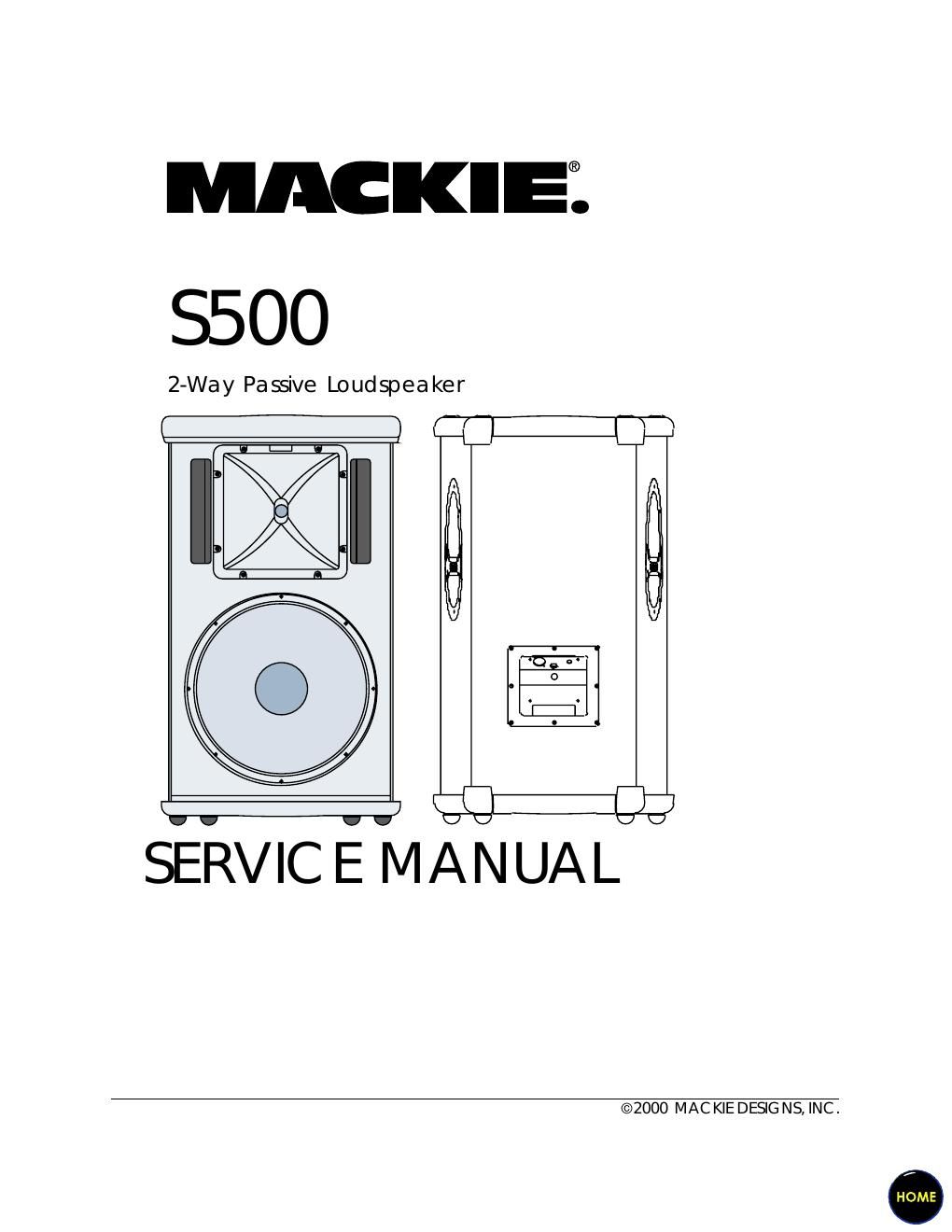

Mackie S500 Passive Speaker Service Manual
This is the 9 pages manual for Mackie S500 Passive Speaker Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Mackie S500 Passive Speaker Service Manual (Ocr-read)
Page 1
2 Duration Per Day Sound Level dBA,Typical In Hours Slow Response Example 8 90 Duo in small club 6 92 4 95 Subway Train 3 97 2 100 Very loud classical music 1.5 102 1 105 Patrice screaming about deadlines 0.5 110 0.25 or less 115 Loudest parts at a rock concert The S500 can produce a maximum SPL of 127 dB @ 1m SAFETY Exposure to extremely high noise levels may cause permanent hearing loss\ . Individuals vary considerably in susceptibility to noise-induced hearing loss, but n\ early everyone will lose some hearing if exposed to sufficiently intense noise for a period \ of time. The U.S. Governments Occupational Safety and Health Administration (OSHA) h\ as specified the permissible noise level exposures shown in this chart. According to OSHA, any exposure in excess of these permissible limits co\ uld result in some hearing loss. To ensure against potentially dangerous exposure to high s\ ound-pressure levels, it is recommended that all persons exposed to equipment capable \ of producing these levels use hearing protectors while this unit is in operation. Ear\ plugs or protectors in the ear canals or over the ears must be worn when operating this amplifi\ cation system in order to prevent a permanent hearing loss if exposure is in excess of the limits set forth here.
Page 2
3 CONTENTS Safety........................................................................\ ........ 2 Introduction ..................................................................... 3 Overview ........................................................................\ .. 4 Specifications ................................................................... 5 Parts ........................................................................\ ........... 6 Fold-out Sections Wiring diagram and PCB ................................... Wiring-1 Introduction This manual contains basic service information. It is essential that you\ have a copy of the users manual as this contains the complete operating instructions. SERVICE TECHNICAL ASSISTANCE Mackie Designs, Service Technical Assistance, is available 8AM - 5PM PST\ , Monday through Friday for Authorized Mackie Service Centers, at 1-800-258-6883. Feel free to call with any questions and speak with a carefully-calibrated technician. If one is n\ ot available, leave a detailed message and a qualified Mackoid will return your call asap. DISCLAIMER The information contained in this manual is proprietary to Mackie Design\ s, Inc. The entire manual is protected under copyright and may not be reproduced by any means without express written permission from Mackie Designs, Inc. SERVICE ON THIS EQUIPMENT IS TO BE PERFORMED BY EXPERIENCED REPAIR TECHNICIANS ONLY
