Mackie Onyx 1640 Parts

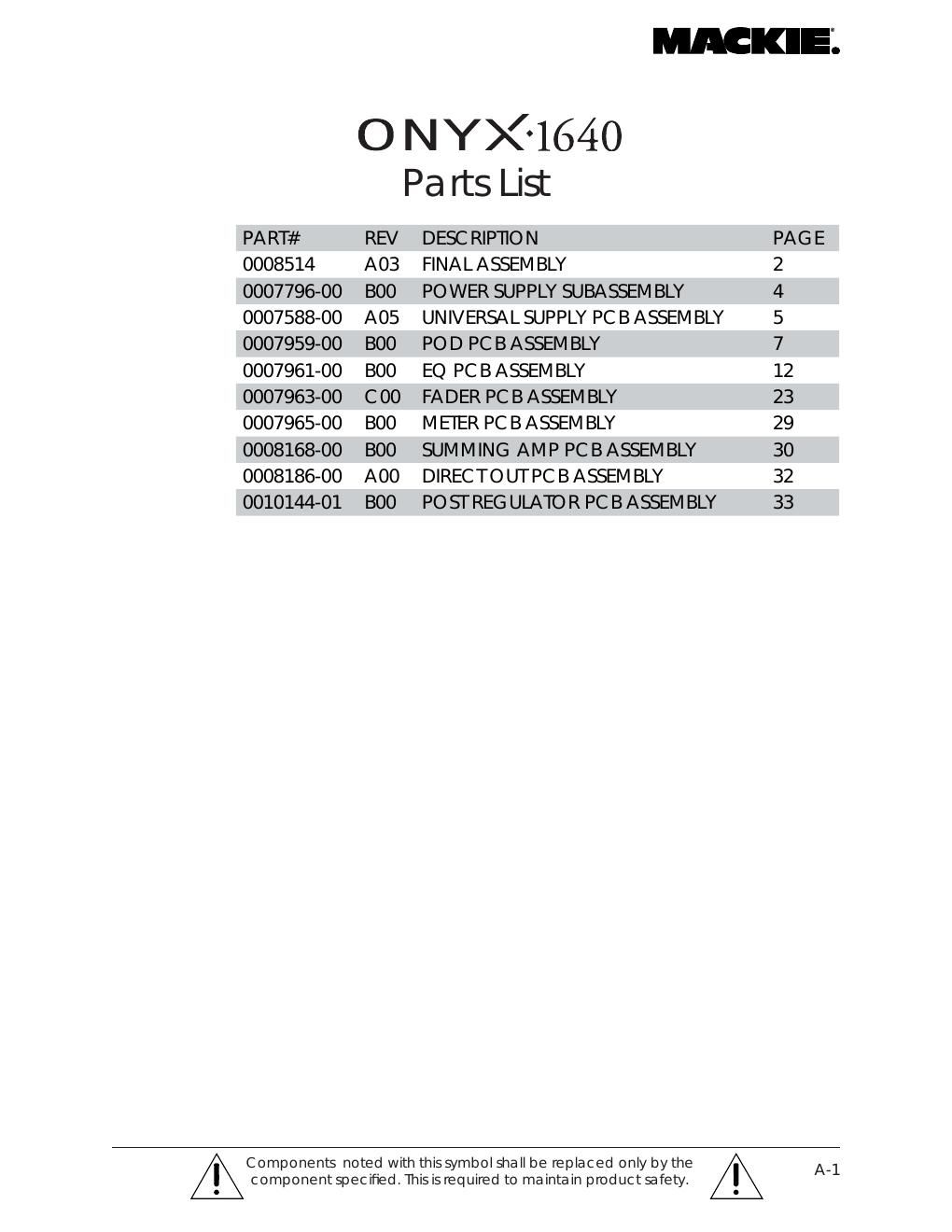

Page 1

v
mKIE.

O NYX1640

Pa rts List
PART# REV DESC RIPTIO N PAG E
0008514 A03 FINA L ASSEM BLY 2
0007796-00 BOO POWER SUPPLY SUBASSEM BLY 4
000758800 A05 UNIVERSAL SUPPLY PC B ASSEM BLY 5
0007959-00 BOO PO D PC B ASSEM BLY 7
0007961-00 B00 EQ PC B ASSEM BLY 12
000796300 C 00 FADER PC B ASSEM BLY 23
0007965-00 B00 M ErER PC B ASSEM BLY 29
0008168-00 B00 SUM MING AM P PC B ASSEM BLY 30
000818600 A 00 DIREC TO UT PC B A SSEM BLY 32
001014401 B00 PO STREG ULATO R PC B ASSEM BLY 33
A-l

Components noted with thissymbol shall be replaced only by the
component specified. This is required to maintain product safety.

&

Page 2

"MKIE; ONYX'1640 Service Manual

Aug ust 2004
00085 14 REV A03 FINA L A SSEM BLY
PART# REV DESCRIPTION OTY NOTES
0001381-01 coo ANALOG KNOB MILLENNIUM RED 210 34
000138102 000 ANALOG KNOB MILLENNIUM MILLENNIUM GREEN 38
000138103 000 ANALOG KNOB MILLENNIUM BLUE 320 64
000138105 000 ANALOG KNOB MILLENNIUM WHITE 100 57
000138108 C00 ANALOG KNOB MILLENNIUM BLACK 00 18
000138107 000 ANALOG KNOB MILLENNIUM ORANGE 34
& 0007597 A00 SWITCH ROCKER DPST POWER 250V SA on 1
A 0007796-00 B00 SUBASSY, ONYX 1840 SUPPLY 1 SEE PAGE 4
000947501 A00 SCREW M3.5 X 8MM TRUSS HD MCH PHIL SS BLK 58
000795900 B00 PCB ASSY POD 1 SEE PAGE 7
0007961-00 B00 PCB ASSY, EC 1 SEE PAGE 12
0007963-00 coo PCB ASSY, FADER 1 SEE PAGE 23
000798500 B00 PCB ASSY, METER, 1 SEE PAGE 29
000818800 Boo PCB ASSY, SUMMING AMP 1 SEE PAGE 30
000818800 A00 PCB ASSY, DIRECT OUT 1 SEE PAGE 32
0008233 A00 CABLE ASSY 8 PIN 2.5MM TJC3 SINGLE ROW 1175 IN 8
0008234 A00 CABLE ASSY 3 PIN 2.5MM TJC3 SINGLE ROW 11 INCHES WITH ONE 1
BARE END
0008241 A00 CABLE ASSY 6 PIN 2.5MM TJC3 SINGLE ROW 8 IN
0008242 A00 CABLE ASSY 2 PIN 2.5MM TJC3 SINGLE ROW 28 INCHES WITH ONE 1
END BARE WIRE
0008243 A00 CABLE ASSY 13 PIN 2.5MM T303 SINGLE ROW 3 IN 1
0008244 A00 CABLE ASSY 15 PIN 2.5MM TJC3 SINGLE ROW 3 IN 1
0008258 A00 CABLE ASSY 30 PIN DUAL ROW 2MM PHD JST 5.0 IN 1
0008335 A00 COVER ONYX PIREWIRE SLOT 1
0008508 A00 CHASSIS MIXER 1804 VLz2 1
0008507 B00 TOP MIXER 1840 1
0008508 A00 CHASSIS POD 1604 VLz2 1
0008509 A00 TOP POD ONYX 1840 1
0008510 A00 PANEL POD I/O ONYX 1840 1
0008511 D00 PANEL POD BACK 1840 1
0008512 Boo BRACKET POD MOUNTING 1840 2
0010597 A00 KEPNUT, M4 18
0008555 A00 PANEL BO'I'I'OM COVER 1804 VL22 1
0008849 A00 BOX ONYX 1640 1
0008853 A00 BOX SLEEVE ONYX 1840 1
000885700 100 FOAM LEFT ONYX 1840 1
0008657-01 100 FOAM RIGHT ONYX 1640 1
0008889 B00 OWNERS MANUAL ONYX 1640 - ENGLISH 1
0008780 A00 LIP SEAL ONYX 1840 1
& 400-288-00 A IEC MALE RECP 10A 1870K 1
A 640-001-00 D LC IEc SJT 10A/125V 6FT 1
A 840-002-01 B LC EURO 10A 250V 6FT 7IN 1
790-011-00 A BAG POLY 20 X 7 x 30 4MIL 1
continued

Components noted with thissymbol shall be replaced only by the
A'2 component specified. This is required to maintain product safety.
