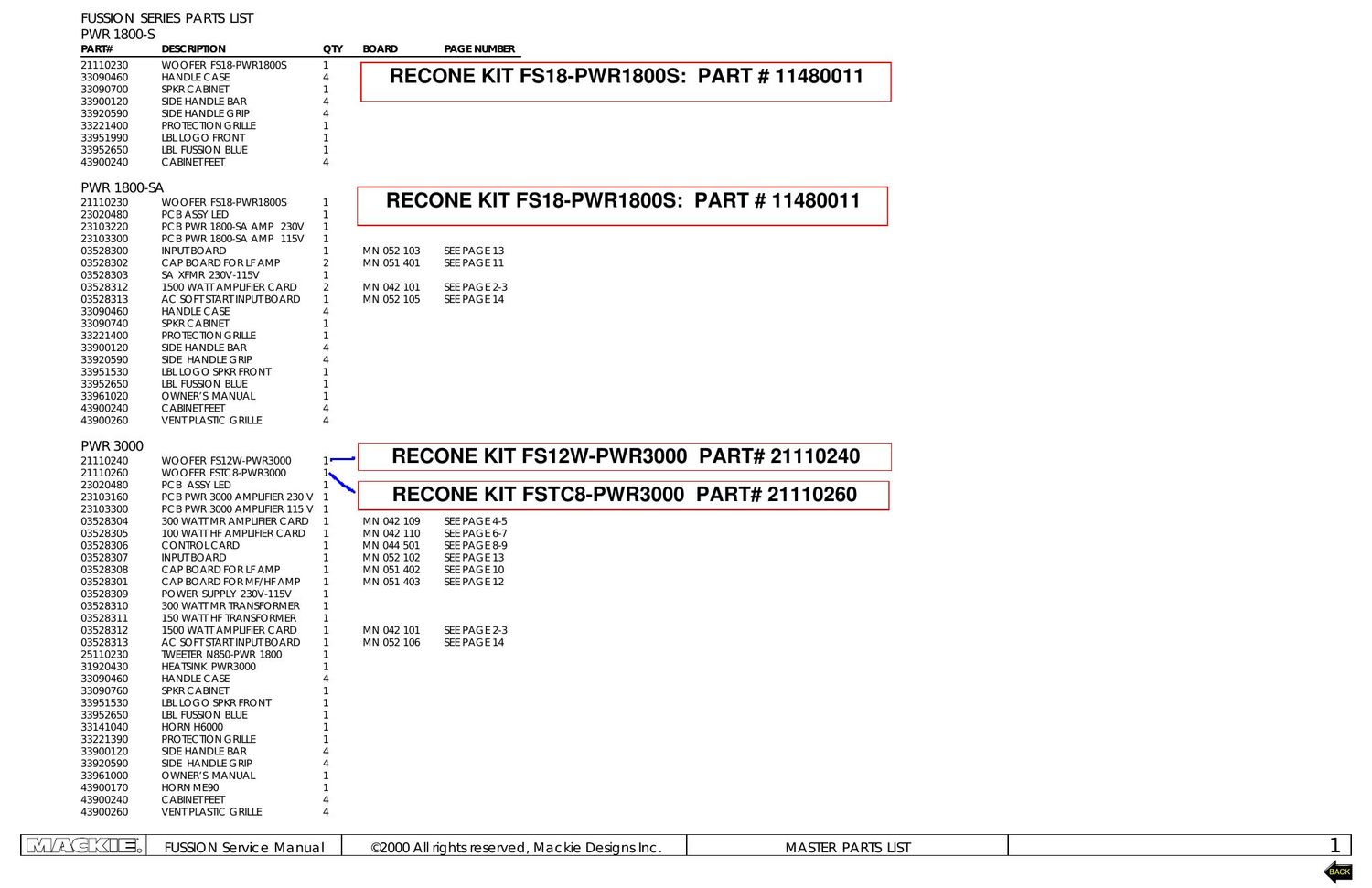

Page 1
FUSSION SERIES PARTS LISI'
PWR 1800-S
PART# DEC RIPIION ow BOARD PAGE NuVIBER
21110230 WOOFER FSl8-PWR18OOS 1
33090460 HANDLE CASE 4 RECONE KIT FS18-PWR18OOS: PART # 11480011
33090700 SPI
33920590 SIDE HANDLEGRIP 4
33221400 PROTECTION GRILLE 1
33951990 LBL LOGO FRO NT 1
33952650 LBL FUSSION BLUE 1
43900240 CABINErEEEr 4
PWR 1800-SA
21110230 WOOFER FSl8-PWR18005 1 RECONE KIT FS18-PWR18OOS: PART # 11480011
23020480 PC B ASSY LED 1
23103220 PCB PWR 1800-SA AMP 230v 1
23103300 PCB PWR 1800»SA AMP 115v 1
03528300 INPUTBOARD 1 MN 052 103 SEE PAG E 13
03528302 CAP BOARD FORLFAMP 2 MN 051 401 SEE PAGEll
03528303 SA XFMR 230v-115v 1
03528312 1500 WAITAM PLIFIER CARD 2 M N 042 101 SEE PAG E 2-3
03528313 AC SOFI'SI'ARTINPUTBOARD 1 MN 052 105 SEE PAG E 14
33090460 HANDLE CASE 4
33090740 SPKR CABINEr 1
33221400 PROTECTION GRILLE 1
33900120 SIDE HANDLE BAR 4
33920590 SIDE HANDLE G RIP 4
33951530 LBL LOGO SPKR FRONT 1
33952650 LBL FUSSION BLUE 1
33961020 OWNERS MANUAL 1
43900240 CABINErEEEr 4
43900260 VENTPLASI'IC G RILLE 4
PWR 3000
21110240 WOOFER FS12W.pWR3000 1--- RECON E KIT FS12W-PWR3000 PART# 21 110240
21110260 wo O FER FSI'C 8-PWR3000 1
23020480 PCB ASSY LED 1
23103100 pcs PWR 3000/11410050 230v 1 RECONE KIT FSTC8-PWR3000 PART# 21 110260
23103300 PCB PWR 3000 AM PUFIER 115 v 1
03528304 300 WAITM R AM PLIFIER CARD 1 M N 042 109 SEE PAG E 45
03528305 100 WAIT HF AM PIJFIER CARD 1 M N 042 110 SEE PAG E 67
03528306 CO NTROLCARD 1 M N 044 501 SEE PAG E 8-9
03528307 INPUTBOARD 1 MN 052 102 SEE PAG E 13
03528308 CAP BOARD FORLFAMP 1 MN 051 402 SEE PAGElO
03528301 CAP BOARD FORMF/HFAMP 1 MN 051 403 SEE PAGE12
03528309 POWER SUPPLY 230v-115v 1
03528310 300 WAITMRTRANSFORM ER 1
03528311 150 WAITHF TRANSFORMER 1
03528312 1500 WAITAM PLIFIER CARD 1 M N 042 101 SEE PAG E 23
03528313 AC SOFI'SI'ARTINPUTBOARD 1 MN 052 106 SEE PAG E 14
25110230 TWEEI'ER N850PWR 1800 1
31920430 HEATSINK PWR3000 1
33090460 HANDLE CASE 4
33090760 SPKRCABINEr 1
33951530 LBL LOGO SPKR FRONT 1
33952650 LBL FUSSION BLUE 1
33141040 HO RN H6000 1
33221390 PROTECTION GRILLE 1
33900120 SIDE HANDLE BAR 4
33920590 SIDE HANDLE G RIP 4
33961000 OWNER'S MANUAL 1
43900170 HO RN M E90 1
43900240 CABIN ErEEEr 4
43900260 VENTPLASI'IC G RILLE 4
mmEo FUSSION Service Manual ©2000A|| rights reserved, Mackie Designslnc. MASTER PARTS LISI'
