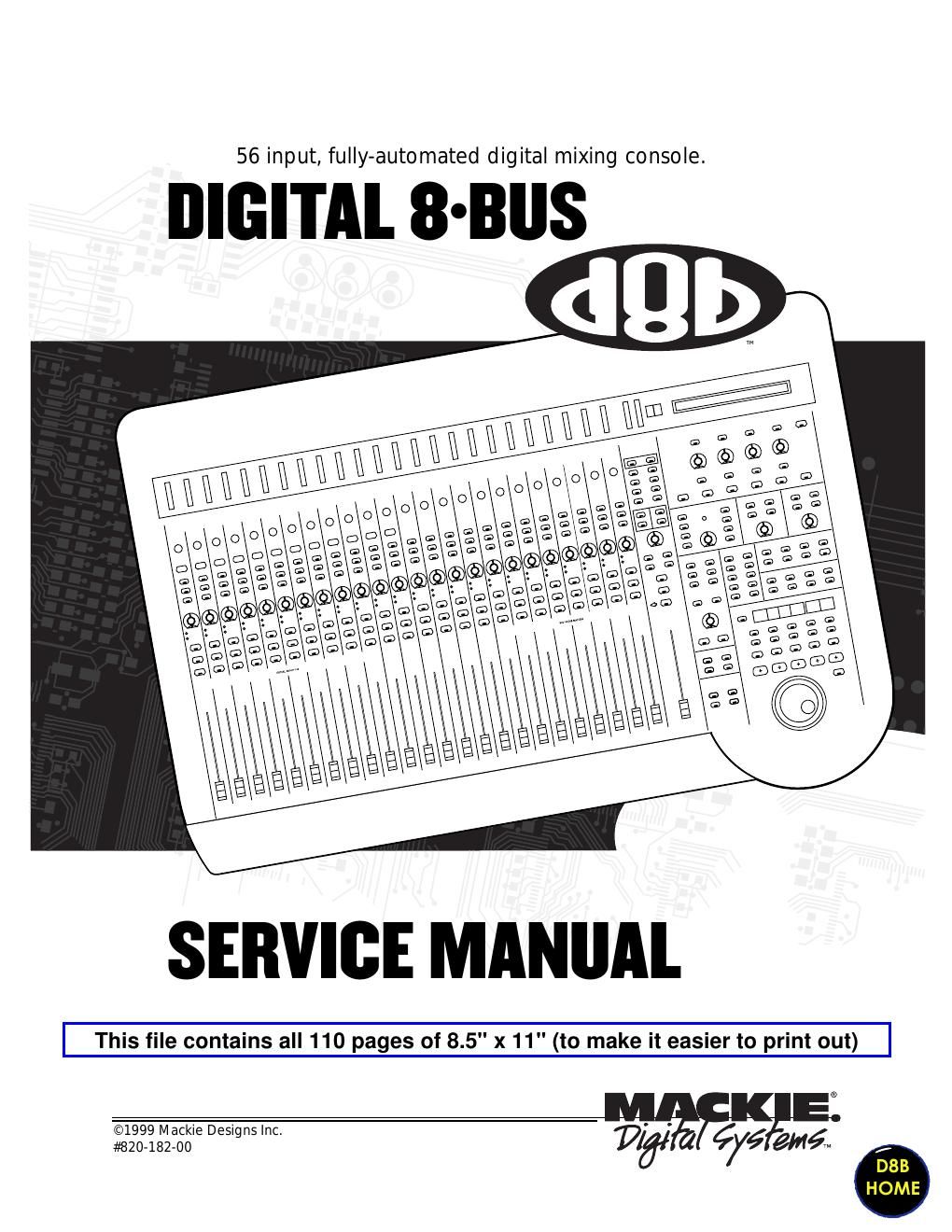

Mackie d8b Service Manual

Page 1

56 input, fully-automated digital mixing console.

DIGITAL 8°Bl|S

SERVICE MANUAL

This file contains all 110 pages of 8.5" x 11" (to make it easier to printout)

to

V?! 4/46114 I

©1999 Mackie Designs Inc.

#820-182-00

Page 2

WEE, d8b SERVICE MANUAL

CAUTION AVIS

RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISOUE DE CHOC ELECTRIOUE
NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT REMOVE
THE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
PERSONNEL

WARNING: TO REDUCE THE RISK OF

FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE

TO PREVENT ELECTRIC SHOCK, DO
NOT USE THIS POLARIZED PLUG WITH
AN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT

BLADE EXPOSURE.

ATTENTION: POUR EVITEFI LES
FIISQUES DE CHOC ELECTRIQUE, NE
PAS ENLEVER LE COUVERCLE. AUCUN
ENTFIETIEN DE PIECES INTERIEUFIES
PAH L'USAGEFI. CONFIEFI LENTFIETIEN
AU PERSONNEL QUALIFIE.

AVIS:POUR EVITEFI LES HISQUES
DINCENDIE OU D'ELECTROCUTION,
N'EXPOSEZ PAS CETAHTICLE A LA

PLUIE 0U A L'HUMIDITE.

POUR PREVENIR LES CHOCS
ELECTRIOUES NE PAS UTILISEFI CETTE
FICHE POLAR/SEE AVEC UN
PROLONGATEUFI, UN PFIISE DE
COURANT OU UNE AUTRE SORT/E DE
COURANT, SAUF SI LES LAMES

PEUVENT ETFIE INSEREES A FOND
SANS LAISSEFI AUCUNE PART/E A
DECOUVERT.

This apparatus does not exceed the Class A/Class B (whichever is applicable) limits for radio
noise emissions from digital apparatus as set out in the radio interference regulations of the
Canadian Department of Communications.

ATTENTION :Le present appareil numérique n'émet pas de bruits radioélectriques depassant
Ias limites applicables aux appareils numériques de class A/de class B (selon le cas) prescrites
dans ie reglement sur le brouillage radioelectrique edicté par les ministere des communications
du Canada.

This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio energy and, if not
installed properly and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.

The lightning llash With arrowhead sympol within an equilateral
triangle is intended to alert the user to the presence or uninsulated
dangerous voltage Wilhln the product's enclosure, that may be

oi sullictenl magnitude to constitute a risk or electric shock to persons

Le symbole eclair auec point de tteche a rinterieur durl triangle
equilateral est utilise pour alerter i'ulillsaleur de la presence a
Ilnlérleur du coilret de voltage dangereux non isole d'ampieur

sullisante pour constituer un risque d'éiéctrocullon. ""9' d '"S'mwo" accompagmm I BPPaTSL

The exclamation point within an equilateral triangle is intended to
alert the user or the presence or important operating and maintenance
(sen/icing) tnslrucuons in the literature accompanying the appliance.

Le point dexclamation a l'interieur dun triangle equilateral est
empiuyé pour alerter les utilisateurs de la presence dlnstructlans
importantes pour le ioncttonnemenl et l'enlretien (service) dans le
