Mackie CR1604 VLZ Service Manual Schematics
This is the 21 pages manual for Mackie CR1604 VLZ Service Manual Schematics.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 21
Extracted text from Mackie CR1604 VLZ Service Manual Schematics (Ocr-read)

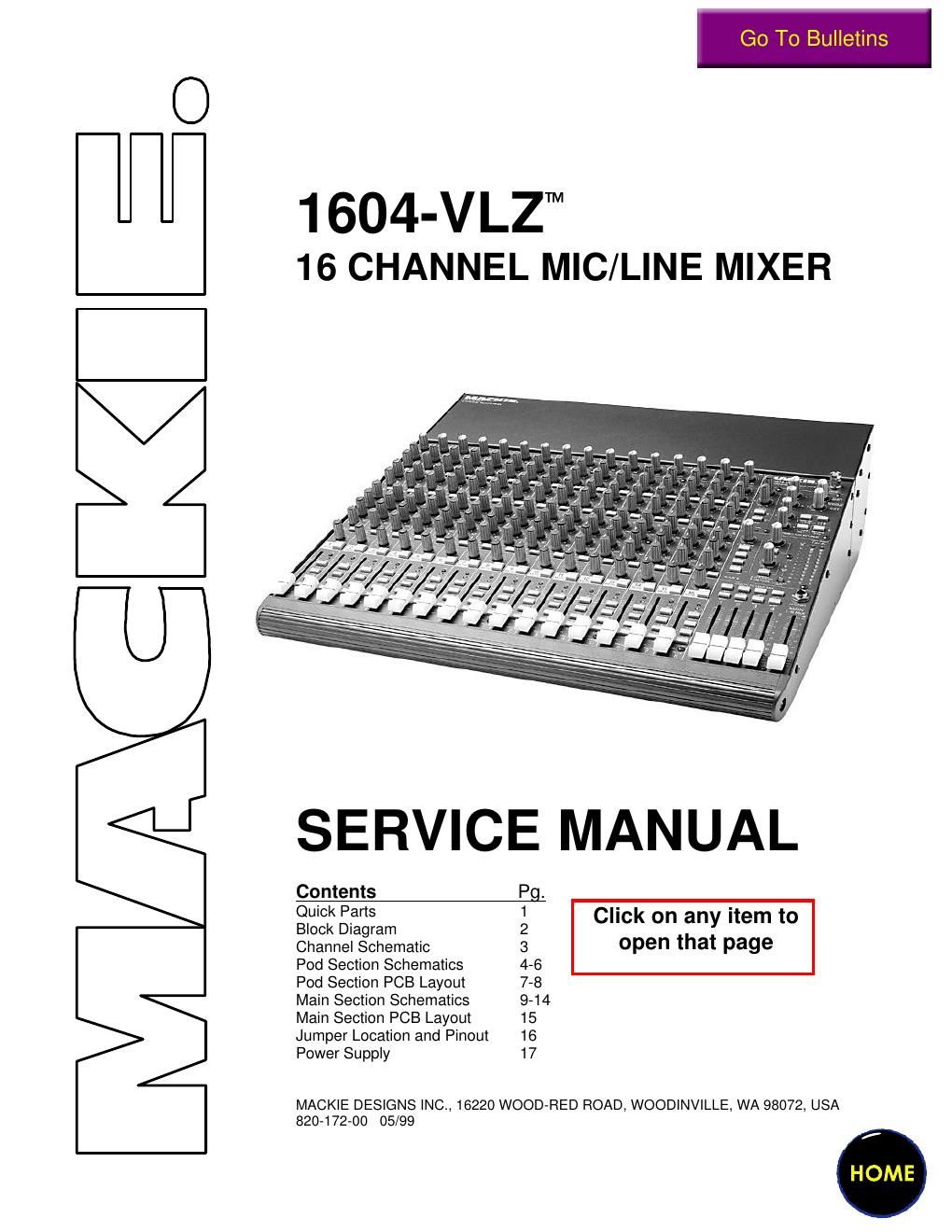

Page 1
LVA
1604-VLZT
16 CHANNEL MIC/LINE MIXER
SERVICE MANUAL
Contents Pq.
Quick Parts 1 ' '
Block Diagram 2 Click on any Item to
Channel Schematic 3 Open that page
Pod Section Schematics 4-6
Pod Section PCB Layout 7~8
Main Section Schematics 914
Main Section PCB Layout 15
Jumper Location and Pinout 16
Power Supply 17
MACKIE DESIGNS [NC., 16220 WOOD-RED ROAD, WOODINVILLE, WA 98072, USA
820472-00 05/99
