Luxman U 100 Service Manual
This is the 21 pages manual for Luxman U 100 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Luxman U 100 Service Manual (Ocr-read)
Page 1

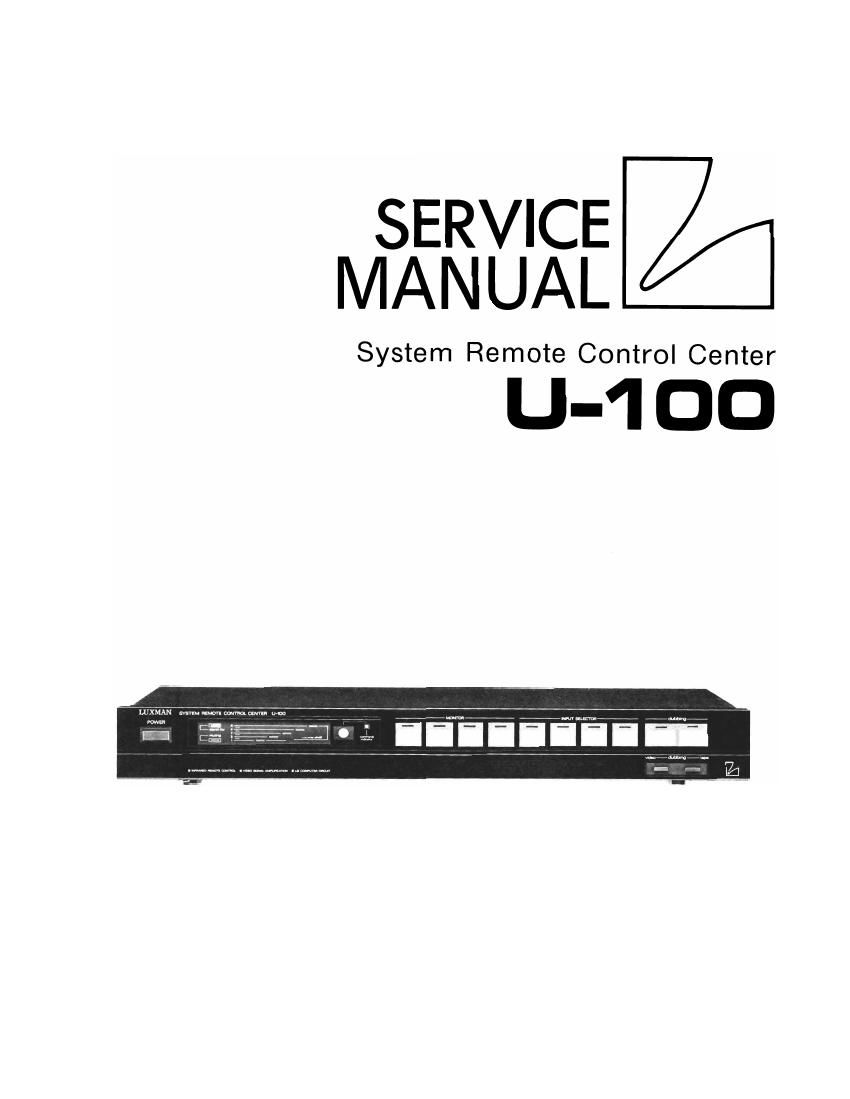

SERVICE g3
MANUAL
System Re eom te Control Center
U-1 DD
Page 2
Contents
Specifications ................................................................... 2
Parts Locations and Disassembly Instructions ........................................... 3 to 5
Block Diagram .................................................................. 6
Schematic Diagram ............................................................ 7 to 9
Parts Layout on P.C, Board and Wiring Diagram ....................................... 10 to 12
Electrical Parts List .......................................................... 13 to 16
Parts List by the Destination ........................................................ 17
Cabinet Assembly Parts List ........................................................ 18
Exploded View (Cabinet) ...................................................... 19 to 20
Packing Assembly Parts List ........................................................ 21
Packing Method View ............................................................. 21
Semi-Conductor Lead Identifications ............................................... 22 to 26
Specufications
Distortion
Output 2V Input/CD: 20 '\, 20 kHz ..................................................... 0.1%
Output 150mV Input/CD: 20 N 20 kHz ................................................. 0.05%
Input Impedance
CD, TUNER, LlNE/PHONO, AV TAPE 1, TAPE 2, VIDEO 1, VIDEO 2 (STEREO) ................. 45K +15%
Frequency Response
CD, TUNER, LINE/PHONO, AV, TAPE 1, TAPE 2, VIDEO 1, VIDEO 2 ............... 10 Hz N 100 kHz :édB
Noise Level (Input Open)
CD, TUNER, LINE/PHONO, AV, TAPE 1, TAPE 2, VIDEO 1, VIDEO 2 ............................ 8 dB
Signal to Noise Ratio (INPUT SHORT)
CD, TUNER, LINE/PHONO, AV TAPE 1,TAPE 2, VIDEO 1, VIDEO 2
A) Input Level: 150mV ........................................................... 80 dB
B) Input Leve|:2V .............................................................. 100 dB
Residual Noise
CD .......................................................................... 10uV
Cross Talk (INPUT SHORTED 150mV)
CD, TUNER, LlNE/PHONO, AV, TAPE 1, TAPE 2, VIDEO 1, VIDEO 2: 10 kHZ ...................... 50 dB
Power Supply ...................................... AC 100/120/220/240V, 50/60 Hz (AD model only)
AC 120V, 60 HZ (U0 and U2 model only)
Power Consumption .................................................................. 15W
Semiconductors ...................................... 18 IC's, 35 Transistors, 19 Diodes, 1 Bridge Diode
Dimension ....................................................... 438(W) x 58(H) x 240(D) mm
Weight .......................................................................... 2.5 kg
