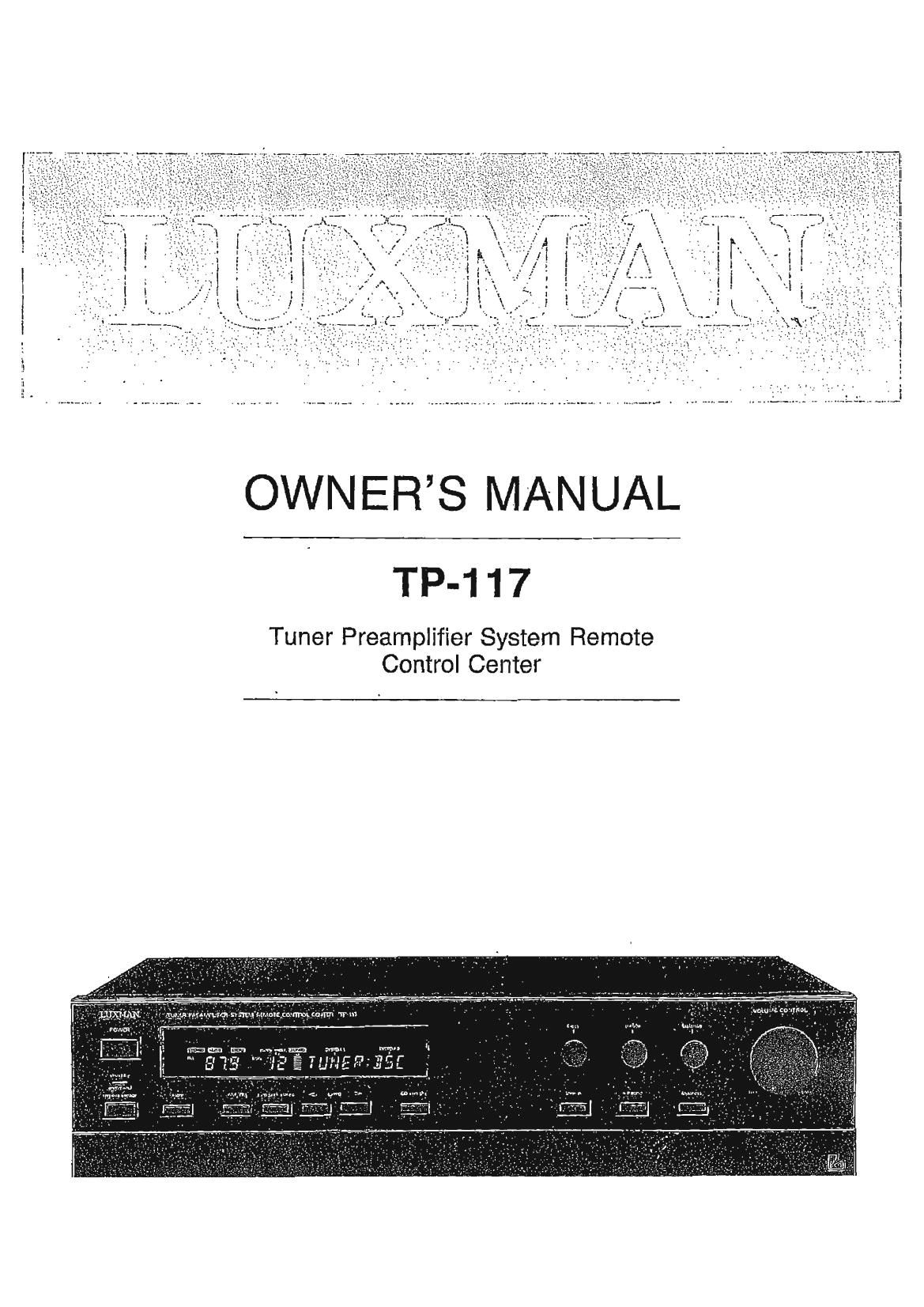

Page 1
,_-. . ........_..-_
m... w ..
OWNERS MANUAL
TP-117
Tuner Preamplifier System Remote
Control Center
Page 2
Introduction ............ ..... ........ 3
Safety Instructions 4
Special Features ..... .......... . .......................... . ........ ......... ........ . 5, 6
Controls & Switches-Front Panel ................ . .......... ...................... ...... . ......... . ........... 7, 8, 9
Jacks 8: Terminals-Rear Panel ..... ....... ................... . .................................. . 10, 11, 12
Connection Diagrams ..... ..... ........... . .............. . ................ ................ 13, 14, 15, 16
Connection Guldelines ......... . 17, 18, 19, 20, 21, 22, 23, 24
Operation Guidelines ....... . ..... .......... ........... 25, 26, 27, 28, 29,30, 31, 32
Care & Maintenance 32
In Case Of Difficulty ....... .................... . ........ .............................................. 33
Specifications ..... . ....... . ........... ..... ...... ........... . ..... .......... .............. 34
Block Diagram ........ . ............. ....... ...................... . ............................ 35
WARNING: To reduce the risk of fire or electric
shock, do not expose this appli-
ance to rain or moisture
Note to the CATV
system installer: This reminder is provided to call the CATV system installer s attention to
Article 820-22 of the NEG that provides gdidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to
' the grounding system of the building, as close to the point of cable entry
as practical.
CAUTION: To prevent electric shock, do not use this (polarized) plug with an
extension cord, receptacle or other outlet unless the blades can be
fully inserted to prevent blade exposure.
The lightning-flash with arrowhead
symbol, within an equilateral tri-
angle, is intended to alert the user
to the presence of uninsulated
"dangerous voltage" within the
products enclosure that may be of
The exclamation point within an
equilateral triangle is intended to
, alert the user to the presence of
important operating instructions in
the literature accompanying the
appliance.
sufficient magnitude to constitute a
risk of electric shock to persons.
CAUTION
RISK OF ELECTFllC SHOCK
DO NOT OPEN
CAUTION82TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE COVER (OR BACK) N0 USEfi-SER-
VICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
2
