Luxman t 117 owners manual
This is the 16 pages manual for luxman t 117 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from luxman t 117 owners manual (Ocr-read)

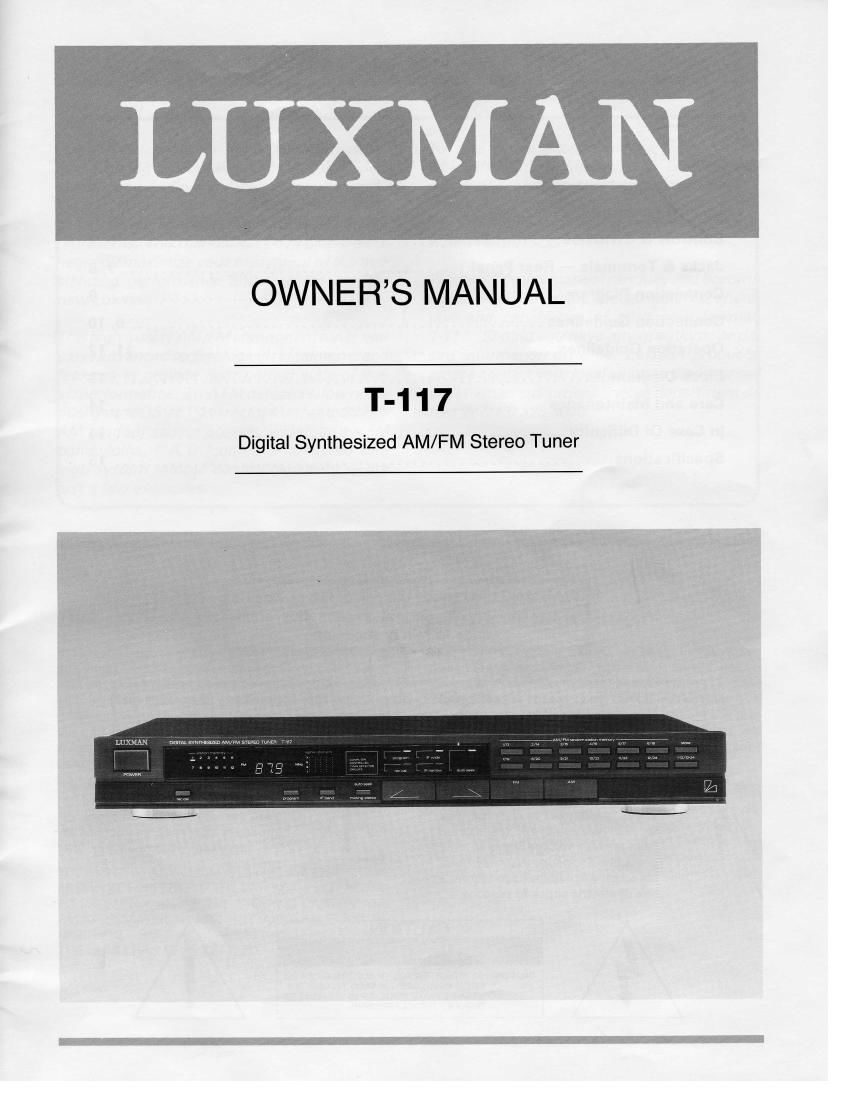

Page 1
OWNERS MANUAL
T117
Digital Synthesized AM/FM Stereo Tuner
Page 2
TABLE OF CONTENTS
f
Introduction ................................................................... 3 1
Safety Instructions ............................................................ 4
Special Features .............................................................. 5
Controls 8: Switches - Front Panel .......................................... 6, 7
Jacks 8| Terminals - Rear Panel ............................................ 7, 8
Connection Diagram .......................................................... 9
Connection Guidelines ..................................................... 9, 10
Operation Guidelines ..................................................... 11, 12
Block Diagram ............................................................... 13
Care and Maintenance ....................................................... 14
In Case Of Difficulty .......................................................... 14
Specifications ................................................................ 15
J
ance to rain or moisture
WARNING: To reduce the risk of fire or electric
shock, do not expose this appli-
fully inserted to prevent blade exposure.
CAUTION: To prevent electric shock, do not use this (polarized) plug with an
extension cord, receptacle or other outlet unless the blades can be
The lightning-flash with arrowhead
symbol, within an equilateral tri-
angle, is intended to alert the user
to the presence of uninsulated
"dangerous voltage within the
products enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating instructions in
the literature accompanying the
appliance.
CAUTION
- r. [m ane' mm.»
l-u .mi i H .
CAUTIONS:TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE COVER (OH BACK). N0 USEFI~$ER-
VICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
