Luxman t 115 service manual
This is the 16 pages manual for luxman t 115 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from luxman t 115 service manual (Ocr-read)
Page 1

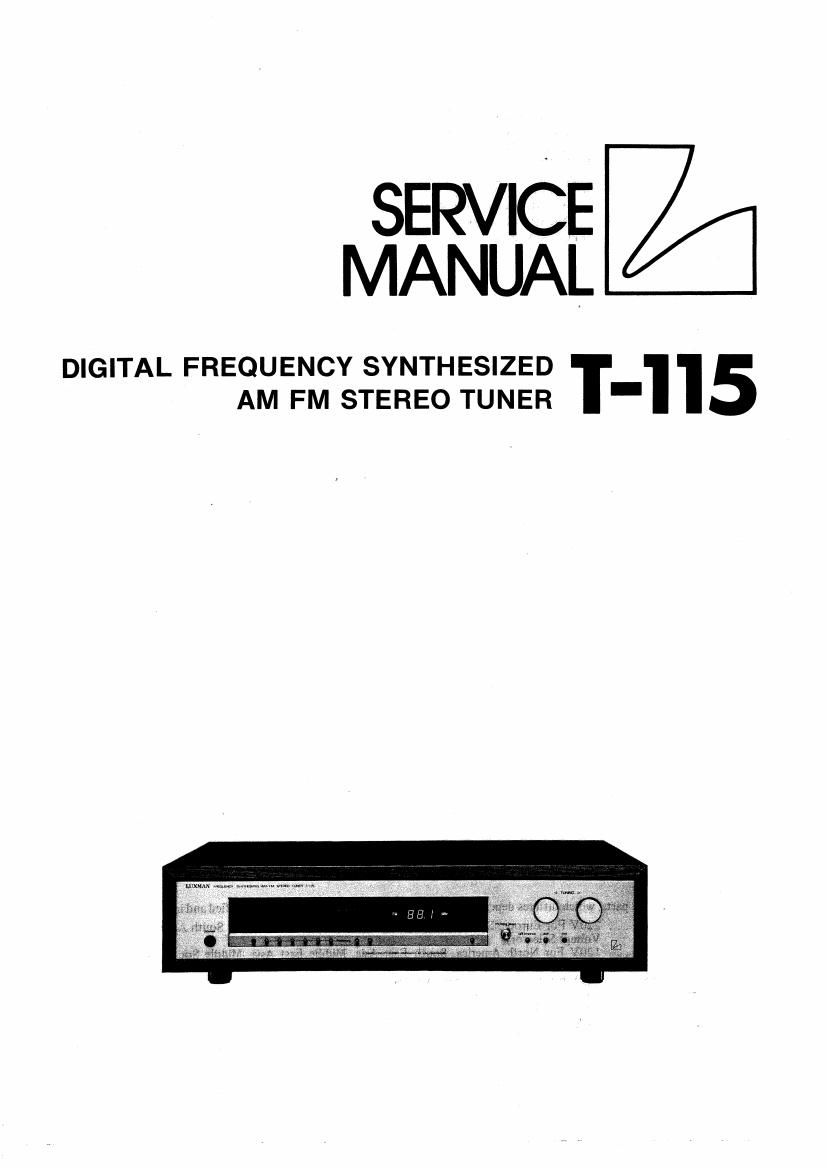

SERVICE
MANUAL
DIGITAL FREQUENCY SYNTHESIZED I'- 11
AM FM STEREO TUNER -
Page 2
CONTENTS BLOCK DIAGRAM ....................... 1
ALIGMENT PROCEDURE ............. 2 » 3 ~ 4
REPLACEMENT PARTS LIST ................ 5
EXPLODED VIEW ........................ 6
Exploded View parts list ..................... 7
PCB PARTS LIST ....... - ......... 9 ~ 10 - 11 - 12
T-115 SCHEMATIC DIAGRAM .............. 13
STANDARD CURVES .................... 14
SPECIFICATIONS . . : .................... 15
NOTE
In this manual the parts, which differes depending on destination andmains voltage, are classified and Indicated as follow.
EK . . . .220V For Europe, South Asia, East Asia Middle East Asia, Middle South America (With Line
E -- Voltage Selector)
-EZ . . . . 120V For North America, South East Asia, Middle East Asia, Middle South America (With
, Line Voltage Selector).
--- SK . . . . 220V For Europe, South East Asia, South America.
S ----- SG . 1 . . 240V For England, Oceania.
---SB . . . . 240V For Australia.
...... 120V For North America.
U J_l:UW . . . 120V For Canada
.............. 100V For Japan
