Luxman SQ 700 X Service Manual

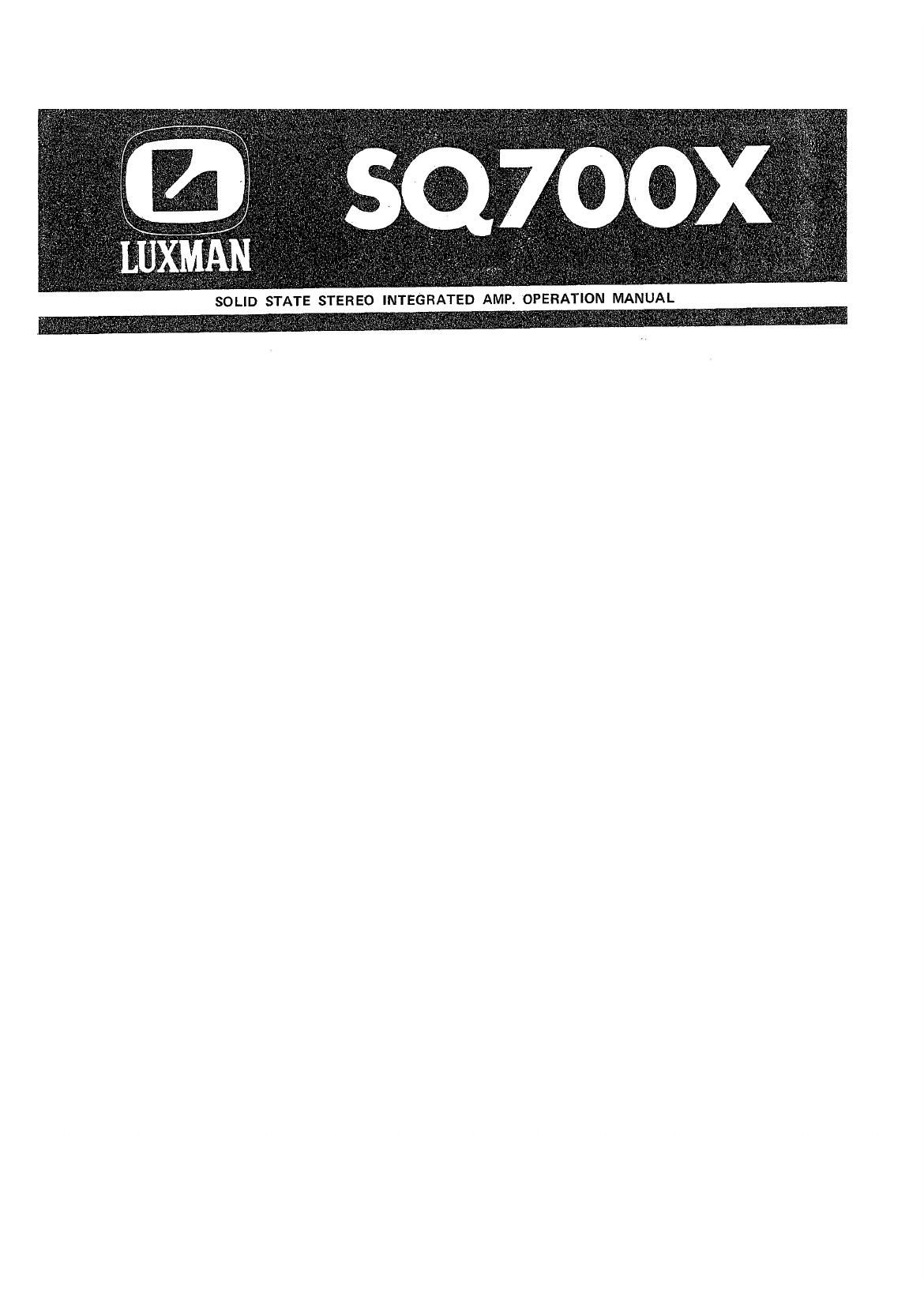

Page 1

SOLID STATE STEREO INTEGRATED AMP OPERATION MANUAL

Page 2

NOMENCLATURE AND USAGE OF EACH CONTROL

1) Input Selector Switch

This switch permits proper selection of desired programme
sources. You may set either of the positions (PHONO-l,
PHONO-2, AUX1, AUX-2). Input selection shali be com-
pleted by setting this switch on the corresponding position
to the desired programme sources after connection of
input.

2) Treble Level Control

This is level control to vary the treble response. A clockwise
turn of the knob boosts the treble response, and counter-
clockwise decreases and cuts off. This knob has the
click-stopper of ii points, and yields flat frequency
response at the centre of rotation angle. You can choose a
turn-over (roll-off) frequency at either of 2.5KH2 or 5KHZ
with the selector switch (3).

This level control is of independent structure, and permits
separate control of both left and right channels. The left
one is for left channel and the right one for right channel.
This is convenient for adjustment of different levels
between both channels due to different output of the
speaker systems.

1. INPUT SELECTOR SWITCH

2. THEBLE LEVEL OONTHO

8. MODE SELECTOR SWlTBN-

3, THEBLE FREQUENCY SELECT

3) Treble Frequency Selector Switch

Treble turn-over or roll-off frequencies of the treble level
controll2) can be selected by this switch. You may choose
2 points (2.5KHz, 5KHz). By setting on 2.5KHz position
you can intensify treble response of tone control for the
purpose of adjusting the treble end response by leaving the
mid range on the flat response this switch shall be set on
5KHz position.

4) Bass Level Control

A clockwise turn of this knob boosts the bass response,
while counter-clockwise decreases and cuts off. This control
is of the same structure as that of Treble Level ControlCZ')
and an operation corresponds to what is expressed in (2).

5) Bass Frequency Selector Switch

Function-wise this is the same with Treble Frequency
Selector Switch expressed in (3). To intensify tone control
effect it shall be set on 500Hz position.

6) Tone Defeat Switch

By setting this switch on defeat" position a flat frequency
response is obtained irrespective of the positions of Bass
Level Control and Treble Level Control.

TO. VOLUME CONTROL

L

ON SWITOH

7. PILOT LAMP

1 UXMAN roux; i»

l2. SPEAKER SWITCH

ll. NEAIIPHONE JACK 4. BASS LEVEL OONTHOL

5. BOSS THEOOENSY
SELECT OH SWITCH

'13.TAPE MONITOR SWITCH

STONE OETEAT SWITCH 15.NllllllS SWITCH

9. BALANCE CONTROL

L-i4. ATTENLIIITOH
