Luxman R 3045 Owners Manual
This is the 16 pages manual for Luxman R 3045 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Luxman R 3045 Owners Manual (Ocr-read)
Page 1

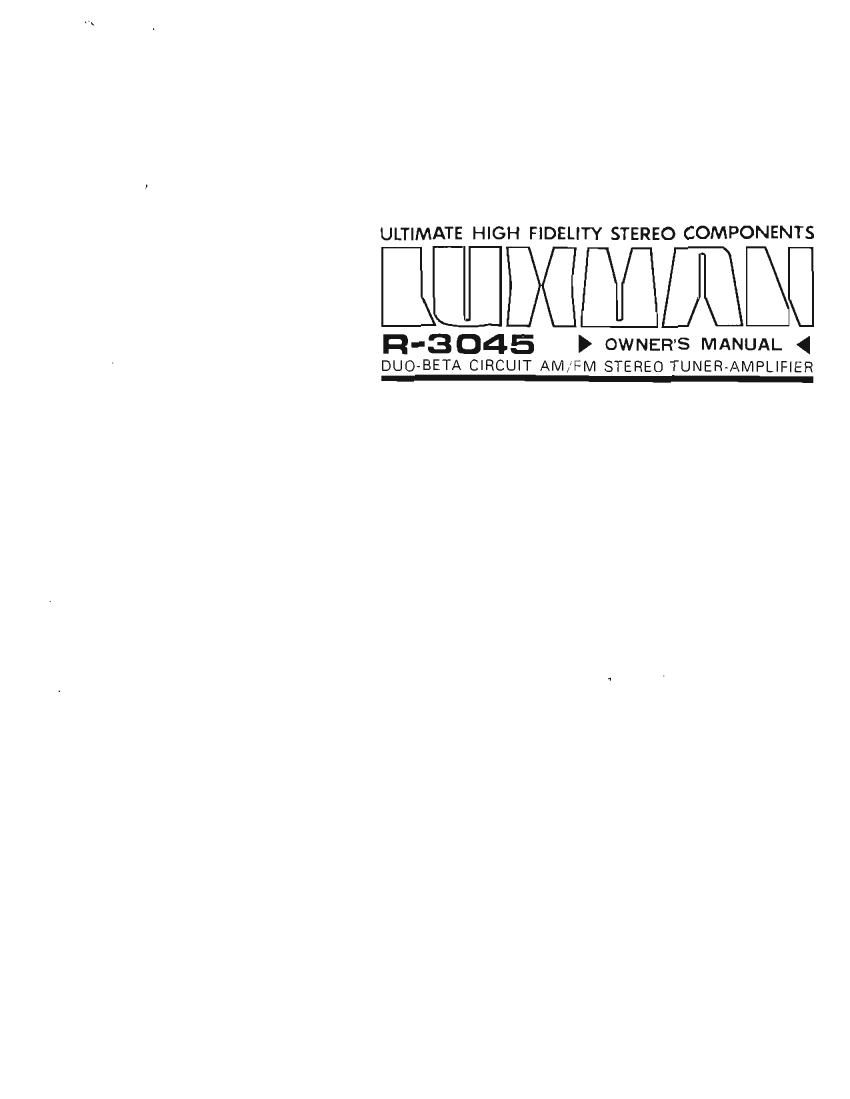

ULTIMATE HIGH FIDELITY STEREO COMPONENTS
IEEDGMJM
9-3045 } OWNERS MANUAL 1
DUO-BETA CIRCUIT AM/FM STEREO TUNER-AMPLIFIER
-
Page 2
-CONTENTS-
Switches 8: Controls .................... 2 ~ 5
Installation ........................... 5~ 6
Connection Procedure .................... A 7
BlockDiagram...,.A....l ............... 8
Operation Procedure ,.A.....,.. ....... 9~ 10
StandardCurves........... ....... ..11~12
Specifications..................A... ,13
_ TO pnsvsm FIRE OR SHOCK HAZARO
WAR _ DO NOT expose THIS APPLIANCE T0
RAIN on MOISTURE
DUE TO ADOPTlON OF PIPE-CENTERED
HEAT SINK, PLACE THE R8045 ALWAYS
IN HORIZONTAL, AS OTHERWISE HEAT
DISSIPATION BECOMES INSUFFICIENT T0
DAMAGE THE POWER TRANSISTORS.
