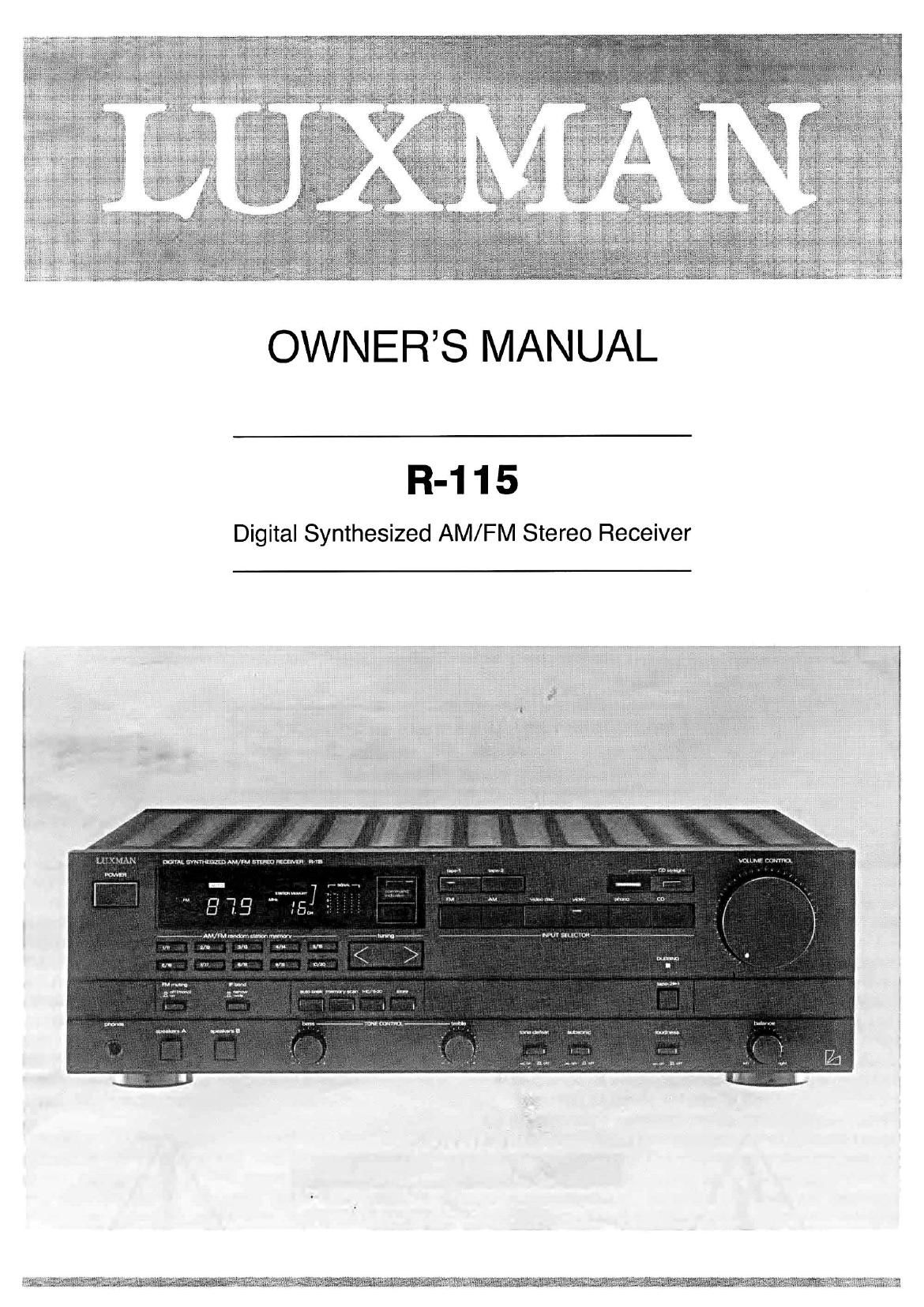

Luxman R 115 Owners Manual

Page 2

Introduction ................................................................... 3

Safety Instructions ............................................................ 4
Special Features ............................................................ 5, 6
Controls & Switches - Front Panel ................................. . ..... 7, 8, 9
Jacks & Terminals - Rear Panel ....................................... 9, 10, 11
Connection Diagram ......................................................... 12
Connection Guidelines ................................................... 13, 14
Operation Guidelines ........................................... 15, 16, 17, 18, 19
Care and Maintenance ....................................................... 19
In Case Of Difficulty .......................................................... 20
Specifications ................................................................ 21
Block Diagram ............................................................... 22

WARNING: To reduce the risk of fire or electric
shock, do not expose this appli-
ance to rain or moisture

CAUTION: To prevent electric shock, do not use this (polarized) plug with an
extension cord, receptacle or other outlet unless the blades can be
fully inserted to prevent blade exposure.

The lightning-flash with arrowhead The exclamation point within an
symbol, within an equilateral tri- equilateral triangle is intended to
angle, is intended to alert the user alert the user to the presence of
to the presence of uninsulated important Operating instructions in
"danger0us voltage within the the literature accompanying the
products enclosure that may be of appliance.

sufficient magnitude to constitute a
risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTIONS:TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT REMOVE COVER (OR BACK). NO USER-SEW
VICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL,
