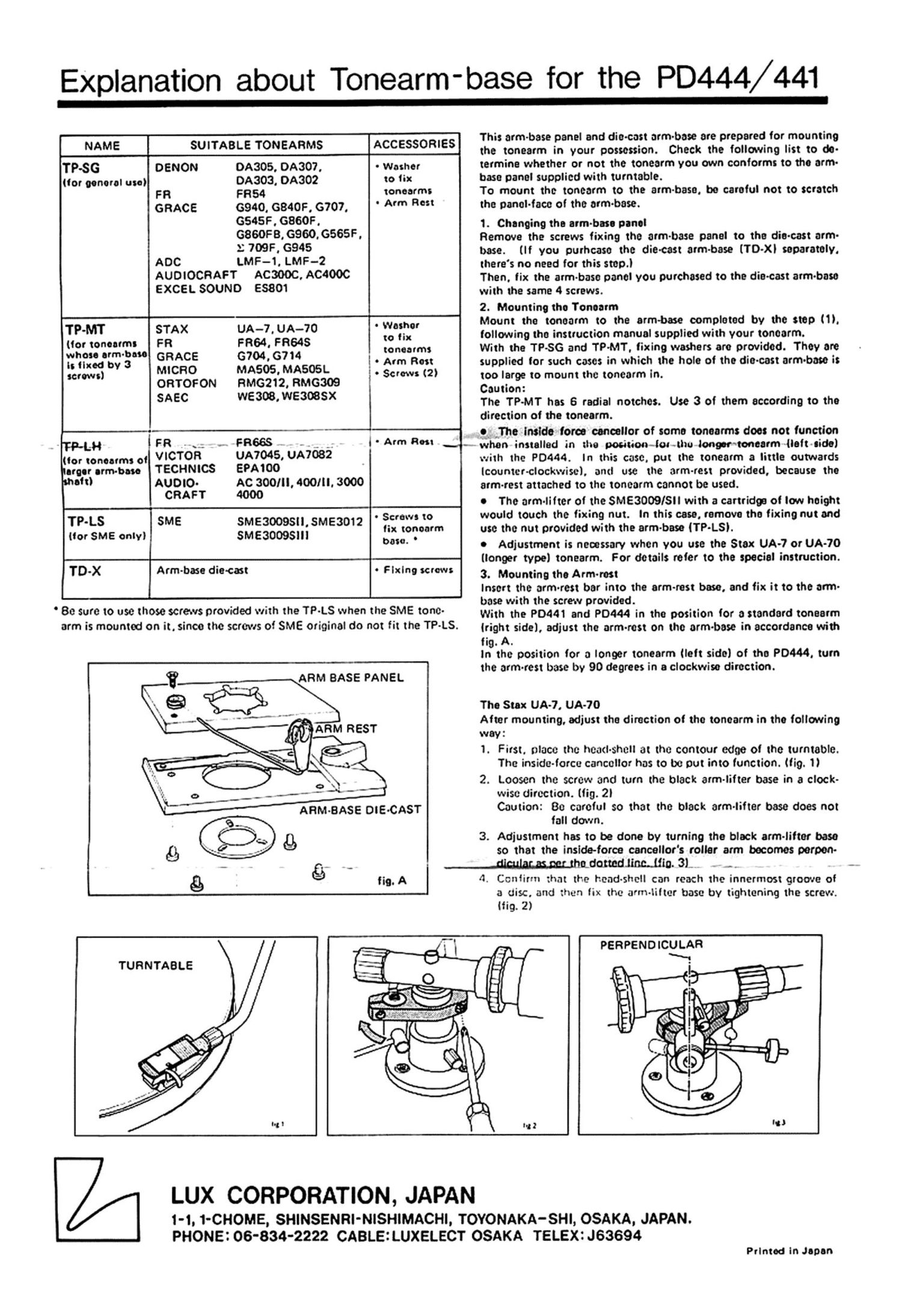

Explanation about Tonearm-base for the PD444/ 441

-

NAME SUITABLE TONEARMS ACCESSORIES
TP-SG oeuon onaos, OA307, - with"
(for genorel use) 0A303. DA302 to fix

FR FR54 tonearms
GRACE 6940, GB4OF, G707, ' 4" Rm
Gsass, oases.
escape. (3960, GSGSF.
.2 709s, (3945
ADC LMF-1.LMF-2
AUDIOCRAFT Acaooc, AC4OOC
excer. sou~o 68801
TP-MT STAX UA-7, UA-7O ° Washer
(for toneatml FR F864, Fnsas ° ""
Who arm-b0 GRACE G704, G714 I . 2:13
3:33 V 3 MICRO MAsos, MASOSL ; , Scum (2,
onrosou RM6212, RM6309
SAEC wesoe.weaoasx
-m. FR H; F8665» - .g ,g' i-Arm Rest __,
o, .21... o, VICTOR UA7045, UA7082
hm: embase Tecumcs EPAIOO
mm AUDIO- AC 300m, 400m, 3000
CRAFT 4000
TP-Ls SME smeaooastl.5M53012 ' s."°" °
ltor SME only) smeaoogsm "" °"°""

beso. °

TD-X

Arm-base die-cast

s Fixing screws

° Be sure to use those screws provided with the TP-LS when the SME tone.
arm is mounted on it. since the screws of SME original do not fit the TP-LS.

?
e

- ARM REST

ARM BASE PANEL

This arm-base panel and dieocest arm-base are prepared for mounting
the tonearm in your possession. Check the following list to de-
termine whether or not the tonearm you own conforms to the arm«
base panel supplied with turntable.

To mount the tonearm to the arm-base. be careful not to scratch
the panel-face of the armbase.

1. Changing the arm-base panel

Remove the screws fixing the arm-base panel to the die-cast arm-
base. (If you purhcase the die-cast arm-base [TD-Xi separately,
theres no need for this step.)

Then, fix the arm-base panel you purchased to the die»cast arm-base
with the same 4 screws.

2. Mounting the Toneerm

Mount the toneerm to the arm-base completed by the stop (1).
following the instruCtion manual supplied with your tonoarm.

With the TP-SG and TP-MT, fixing washers are provided. They are
supplied for such cases in which the hole of the die-cast arm-base is
too large to mount the tonearm in.

Caution:

The TP-MT has 6 radial notches. Use 3 of them according to the
direction of the tonearm.

e The inside force canceilor of some tonearms does not function
when installed in the position-tenth» longertonearm heft-side)

with the P0444. In this case, put the tonearm a little outwards
lcountcr-clocitwisel. and use the arm-rest provided, because the
arm-rest attached to the tonenrm cannot be used.

0 The arm-lifter of the $ME3009ISII with a cartridw of low height
would touch the fixing nut. in this case, remove the fixing nut and
use the nut provided with the arm-base iTP-LSi.

o Adjustment is necessary when y0u use the Stax UA-I or UA-IO
(longer type) tonearm. For details refer to the special instruction.

3. Mounting the Arm-rest

Insert the arm-rest bar into the arm-rest base, and fix it to the arm-
base with the screw provided.

With the P0441 and P0444 in the position for a standard tonaarm
fright side), adjust the arm-rest on the arm-base in accordance with
ii .A.

lrgthe position for a longer tonearm (left side] of the P0444, turn
the arm-rest base by 90 degrees in a clockwise direction.

The Stax UA-l, UA-70

After mounting, adjust the direction of the tonearm in the following

way:

1. First, place the head-shell at the contour edge oi the turntable.
The inside-force cancellor has to be put into function. liig. 1)

2. Loosen the screw and turn the black arm-lifter base in a clock-
wise direction. (fig. 2i
Caution: 80 careful so that the black arm-lifter base does not

fall down.

3. Adjustment has to be done by turning the black arm-lifter base

so that the inside-force cancellor's roller arm becomes carport-

wammm 3i. - ..

4. Confirm that the hend~shell can reach the innermost groove of
a disc. and then fix the arm-lifter base by tightening the screw.
ifig. 2)

TURNTABLE

In; t

PERPENO ICULAR

i.)

LUX CORPORATION, JAPAN

1-1. 1CHOME, SHINSENRI'NISHIMACHI, TOYONAKA-SHI, OSAKA, JAPAN.
PHONE:06-834-2222 CABLEiLUXELECT OSAKA TELEX2J63694
