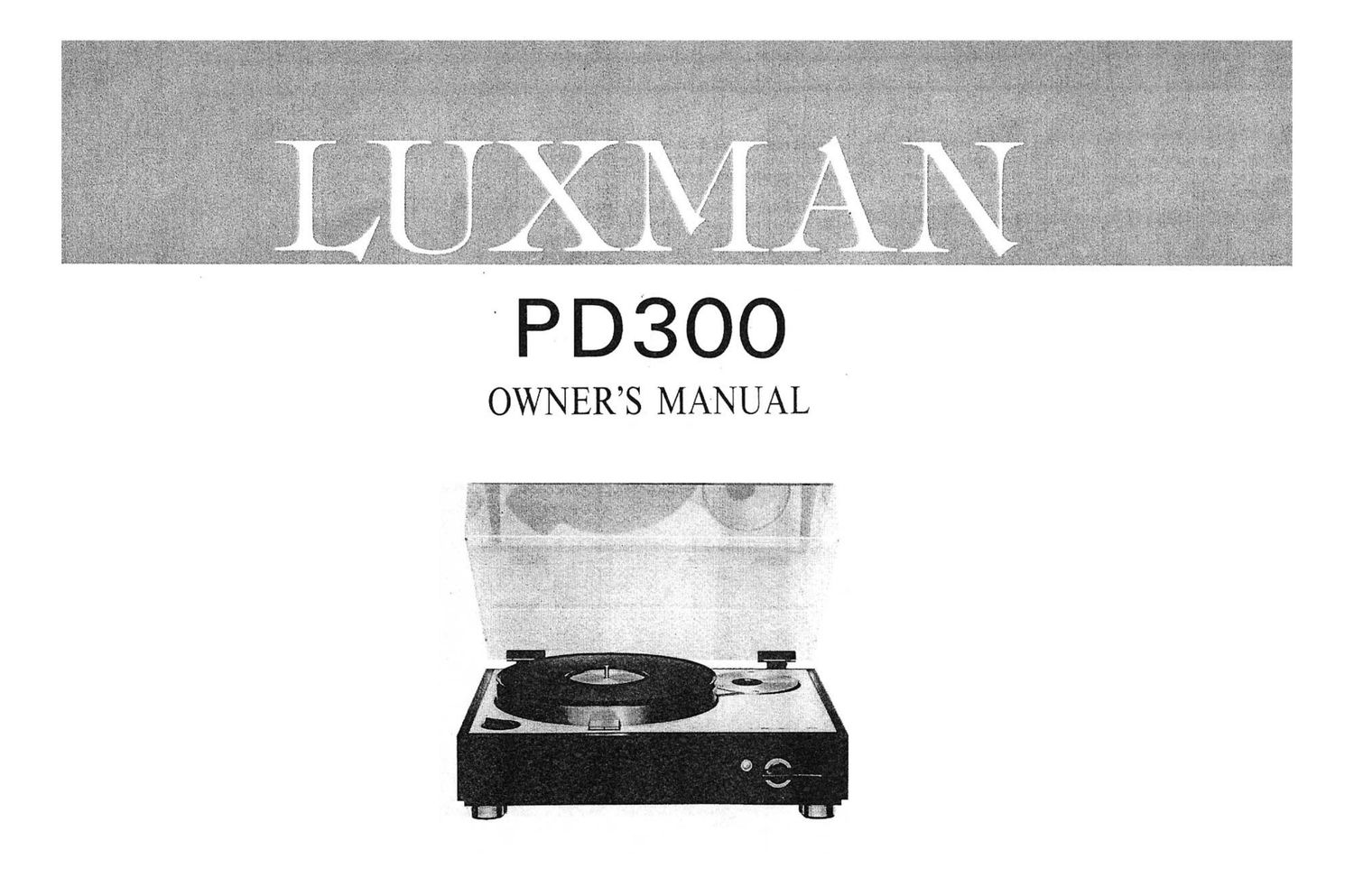

Luxman pd 300 owners manual

Page 2

Switches Termina

M

IM

WARNING: TO PREVENT FIRE OR SHOCK HAZARD

DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.

1. Motor Pulley

This pulley is directly coupled with the rotation axle of
the driving motor. Hang the driving belt on this pulley to
drive the turntable platter.

-- @Motor Puller
®Hinge

- ®Sea|ing pad
- @Turntable Platter

®Air Vent
--®Stroboscope
1 "- @Center Spindle
-®Speed selectar Switch

2. Hinge

The acrylic cover is to be fixed to this hinge. Semi-free
stop construction is employed. With this system, the total
weight of the cover is applied to the bodychassis when it
is closed.

For attachment of the arcylic cover, refer to the step
8" in the Installation Procedure.

3. Sealing Pad

This Pad keeps the space between the disc and turntable
platter airtight. Be careful neither to handle it rough nor
to leave it dirty, as otherwise air-suction may become

@Sub Insulator

insufficient.

4. Turntable Platter

The PD300 employes ultra heavy turntable platter
(3.5 kgs). Further, to realize larger inertia moment suffi-
cient thickness is given to the outer contour of the platter.
Of course the entire designing is made with full considera-
tion of resonance and strength.

5. Tonearm Base
The PD300 comes without tonearm base. Choose an

@Sub Insulator

®AC Power Switch

®Arm Base

@Hi nge

:B-33rpm Speed Adjuster

. @45rpm Speed Ajuster

@Sub Insulator

@Mai n Insulator

@Sub Insulator
