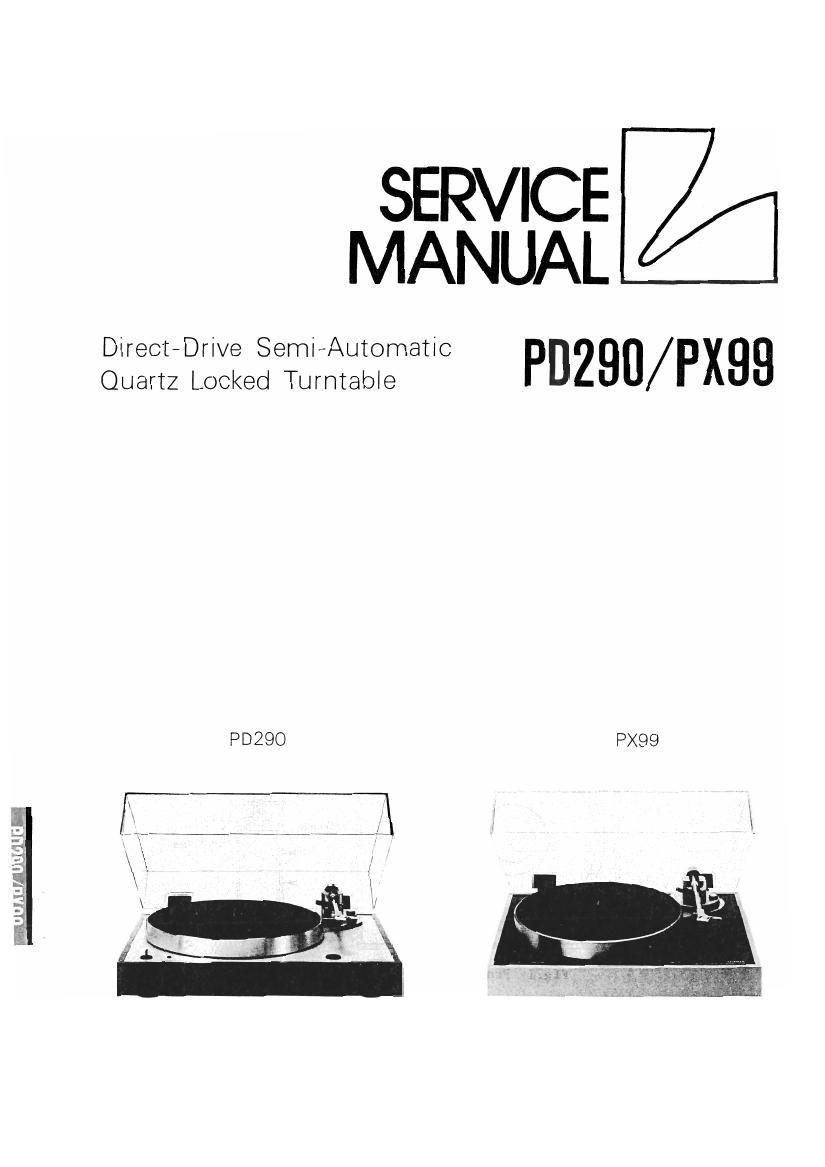

Luxman PD 290 PX 99 Service Manual

Page 2

Contents

Alignment Procedure..........................................l
Packing Material Parts List..................................2
Destination's Parts List.....................................2
Exploded View................................................3
Exploded View Parts List.....................................4 '
Control PCB (1) Parts List...................................5
Control PCB (2)-(7) Parts List...............................6
Wiring Diagram...............................................7
Schematic Diagram............................................8
Motor Circuit................................................9
10 Handling Guide............................................10
Specifications...............................................ll

Alignment Procedure

1. Adjustment of auto-up position

Adjust the auto-up position rotating the hexahead bolt as illustrated (Fig.1).

a) In case the auto-up position is found too late, rotate the hexahead bolt
counter-clockwise.

b) In Case the auto-up position is found too fast, rotate the hexahead bolt
clockwise.

c) In case the motor doesn't stop even after the auto-up completes its operation,
turn the hexahead bolt a little, clockwise-whereas the motor stops.

hexahead bolt

w to J
a solenoid\ -
g 0% t=l.7mm
c:
7% F
><
p.
Fig.1 From top view F1 .2 From bottom view
g

2. Adjustment of the solenoid placement
Fix the solenoid in the position where the "t" in the Fig.2 is 1.7mm.

I
