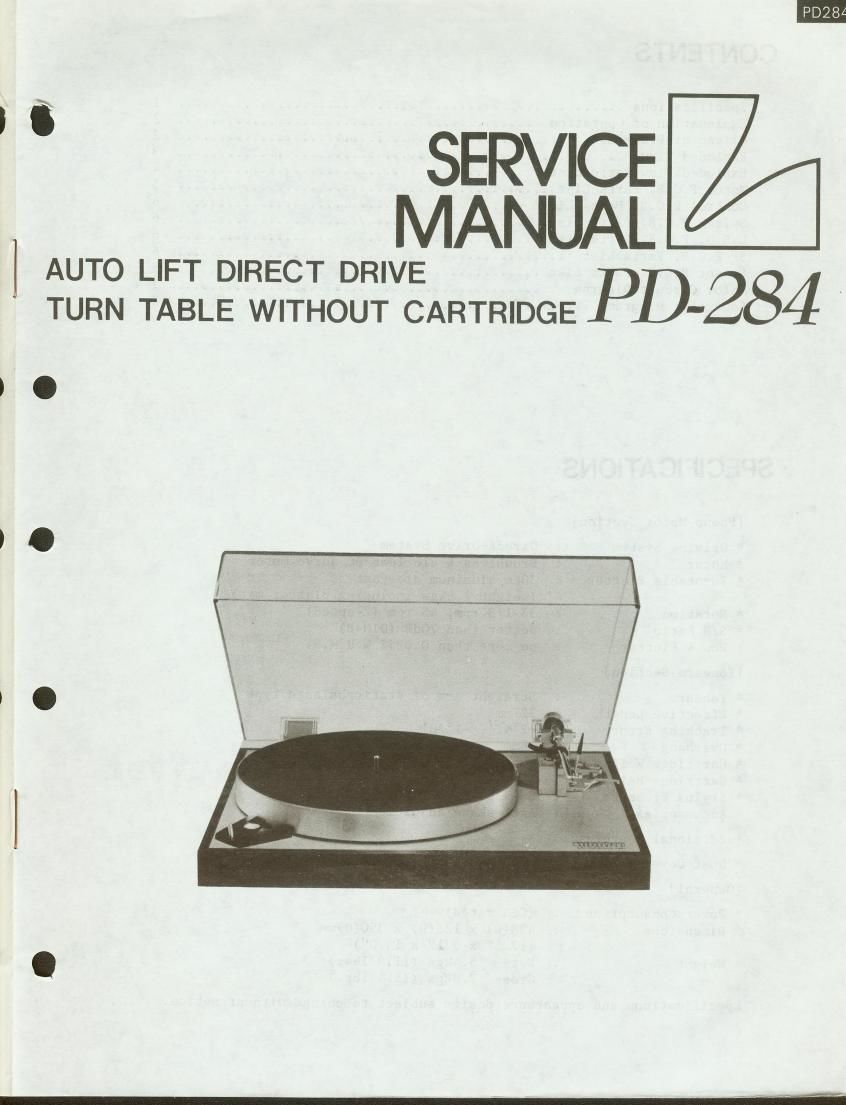

Luxman pd 284 service manual
This is the 8 pages manual for luxman pd 284 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from luxman pd 284 service manual (Ocr-read)
Page 2
CONTENTS
Specifications ...... .. ......... .. ................ . .............. ....
Explanation of Operation
Alignment Procedure
Exploded View . ......... .... ..... . ..................................
Exploded View Parts List .... ........ . ....................... . .......
Motor P.C.B. Parts List .... ....... .......... ........................
Control P.C.B. Parts List . ............... .. ........................
Switch P.C.B. Parts List . ...... ......... .............. .. ...........
L.E.D. P.C.B. Parts List
SP P.C.B. Parts List
Sensor P.C.B. Parts List .... ...... .. .................... . .....
Motor Circuit Diagram
Schematic Diagram
[Phono Motor Section]
* Driving System
* Motor
* Turntable Platter
* Rotation
S/N Ratio
* Wow & Flutter
>I-
[Tonearm Section]
Tonearm
Effective Length
Tracking Error
Overhang
Cartridge Weight
Cartridge Height
Stylus Pressure
Accessories
>I'>I->I->I-X-X->I->(-
[additional Features]
* Dust Cover
[General]
* Power Consumption
* Dimensions
* Weight
SPECIFICATIONS
Direct-Drive System
Brushless & slotless DC servo motor
30cm aluminum die-cast
(weight 1.6kgs including platter mat)
33-1/3 rpm, 45 rpm (2-speed)
better than 70dB (DIN-B)
no more than 0.035% W.R.M.S.
Straight Arm of static balance type
227mm
+2°12', -l°30'
16mm
4.5g - 9.0g
16mm - 19mm (by use of spacers)
O - 3g (direct reading)
Anti-skate adjustment
Detachable with semi-freestop hinge
(CSA rated)
438(W) x 128(H) x 350(D)mm
(17.5" x 5.1 x 14.0)
Net 5.4kgs (11.9 lbs.)
Gross 7.0kgs (15.4 lbs.)
Specifications and appearance design subject to change without notice.
