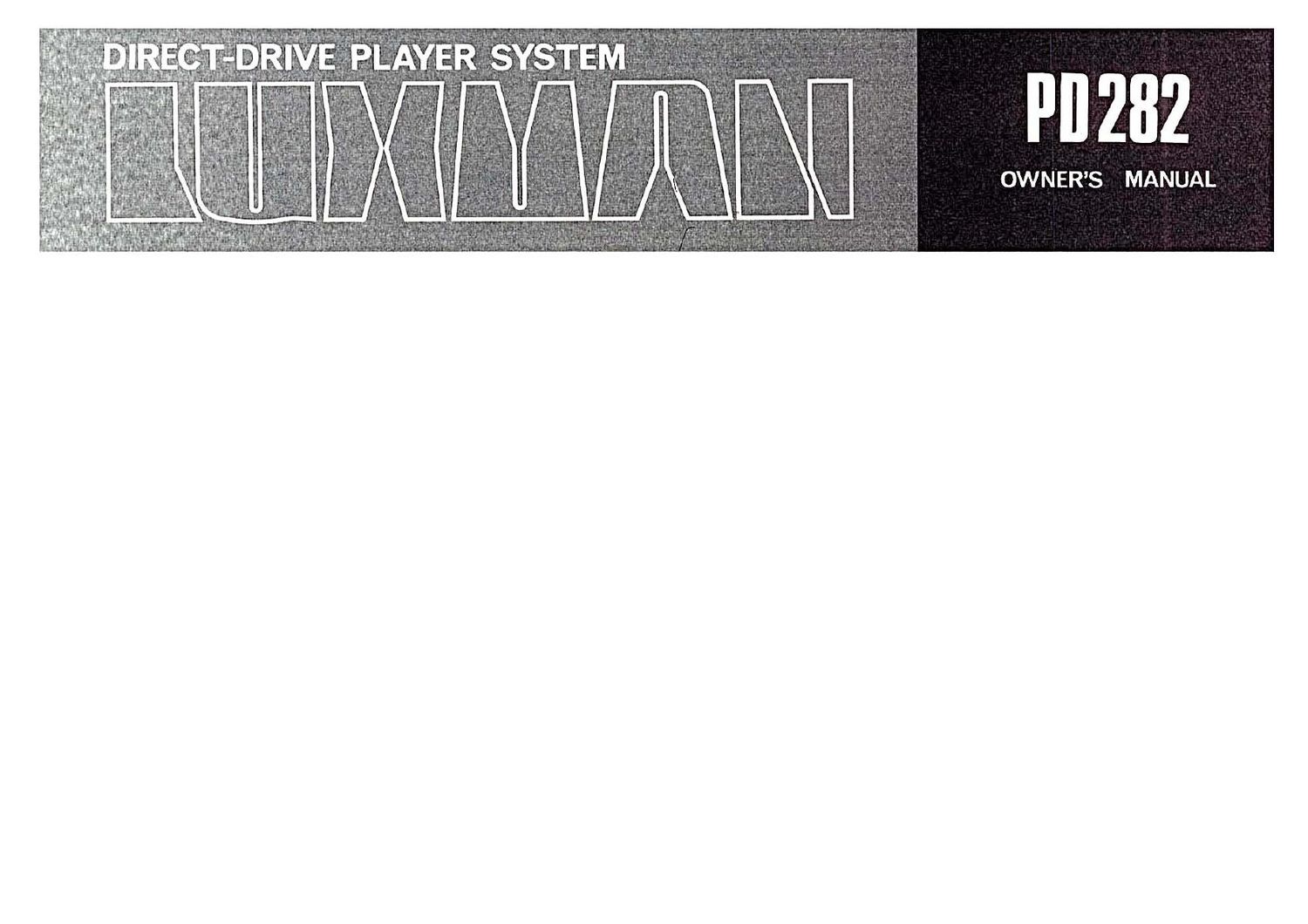

Luxman PD 282 Owners Manual

Page 1

P0282

OWNERS MANUAL

Page 2

The model PD282 is adirc
a?

vided are lateral balancer. insider o
(anti-skating device) and oil-damped cueing system.
The top panel is of a hairline finished aluminium to
make the most of the original beauty of the material.
Further a lot of study has been made on raw
material, thickness. structure etc to obtain the max-
imum resistance against howling. A unique switch
of 1-lever, 2-action type is adopted to permit the
ON-OFF operation of the power and the speed
selection.

With natural care, the P0282 will give you many
years of outstanding performance and personal de-
light. Please read this Owner's Manual carefully
before operating the unit.

ASSEMBLY PROCEDURE
To protect the turn-table from possible damage in
the course of transportation.such heavy components
'as turntable platter,etc.are packed separately from
the main chassis. Further the motor and the trans-
former are firmly fixed to the chassis by means of
clamping screws. Therefore correct assembly in
accordance with the drawing is required. Correct
reassembly is of prime importance. since both the
performance of your player system and the final
tonal quality depend on it.
1. TURNTABLE PLATTER
The turntable platter and the platter mat are
housed at the bottom of the packing case.
After having taken off the mat from the platter,
insert carefully the platter in the center shaft
of the motor, holding it by fingers through the
2 holes. Now turn the platter manually to check
if correct setting-up is obtained. Then put the
mat on the platter.
CAUTION: Do this procedure carefully. since

, latter mat . -
, Q :. ifirig'erthié
g.- '_r 1" sniffiirn'table- platter

. '5' '. fi-cénterflshaft-
