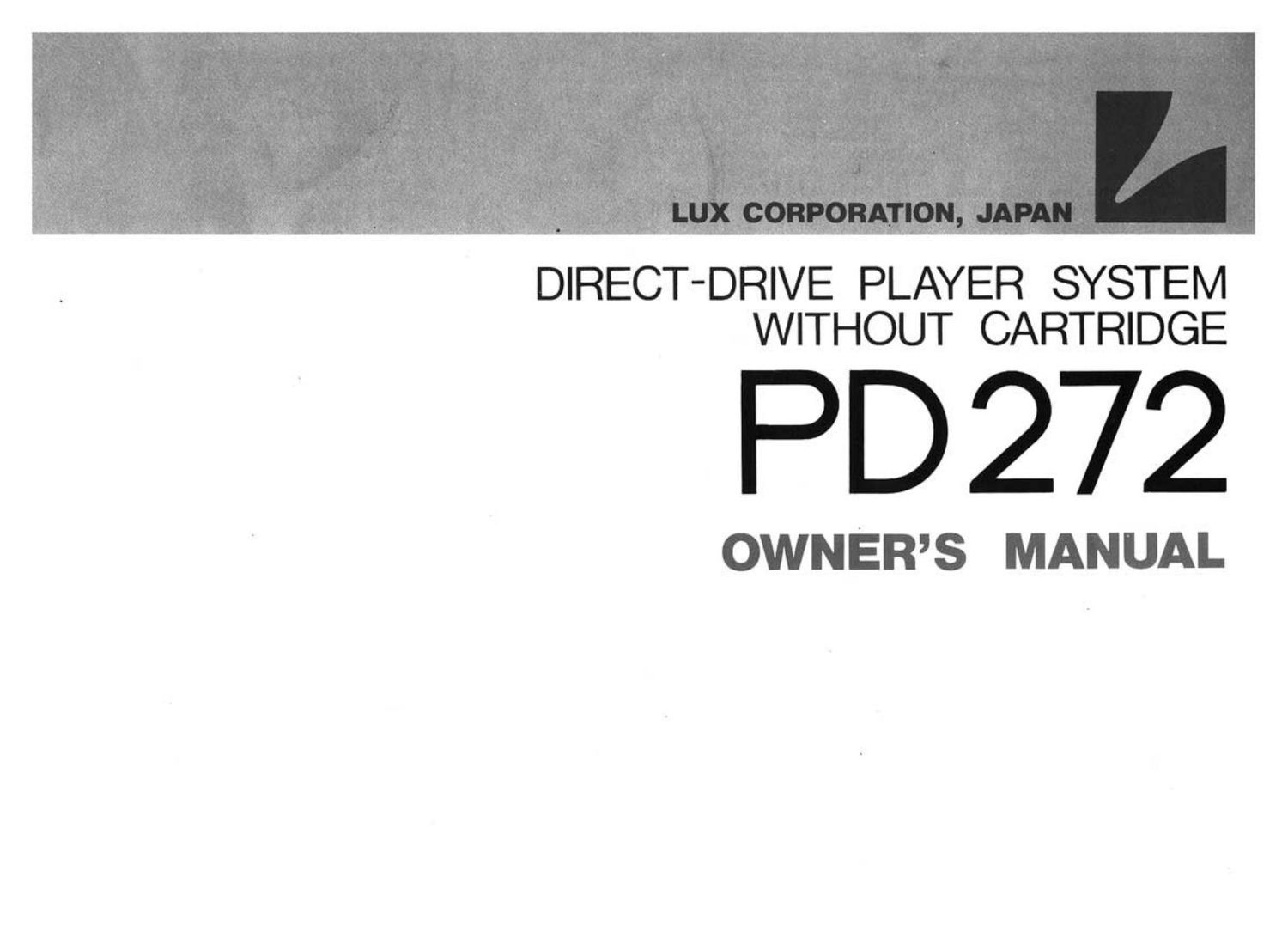

Page 1

DIRECT-DRIVE PLAYER SYSTEM
WITHOUT CARTRIDGE

PD 272

OWNERS MANUAL

Page 2

Thank you for purchasing the PD272.

The P0272 is a disc player using
a Brushless & Slotless DC Servo
Motor Direct-Drive system. Slots
are completely removed to elimi-
nate unevenness of rotation caused
by electromagnetics, and further
provided is a turntable platter of
high inertia with which the large
mass of platter weight is distributed
around the outer contour, thus
realizing excellent Wow & Flutter
characteristics and stable rotation.

For the tonearm, a straight type
is adopted to eliminate resonance
caused by lack of solidity which
tends to be found on the tonearm
exclusively designed for high-com
pliance type cartridge. The root
portion of the tonearm is of double-
pipe structure to strengthen anti-
resonance measures. Further, the
cartridge shell is integrated to the

tonearm, thus the resonance is
suppressed down to_ the minimum.

The acrylic dust cover which
provides excellent characteristic
against howling, ultra-thin type 0|-
core power transformer which
produces the least leakage-flux and
assures stable rotation together
with improved signal-to-noise ratio,
and the platter mat which not only
provides superb contact to disc but
strongly damps even the turntable
platter, etc., thus all these are
important factors for a quality
disc player to improve its perform-
ance.

Please read this Owner's Manual
carefully before you proceed to its
installation and use. This will help
you to realize the excellent capa-
bilities of the P0272.
