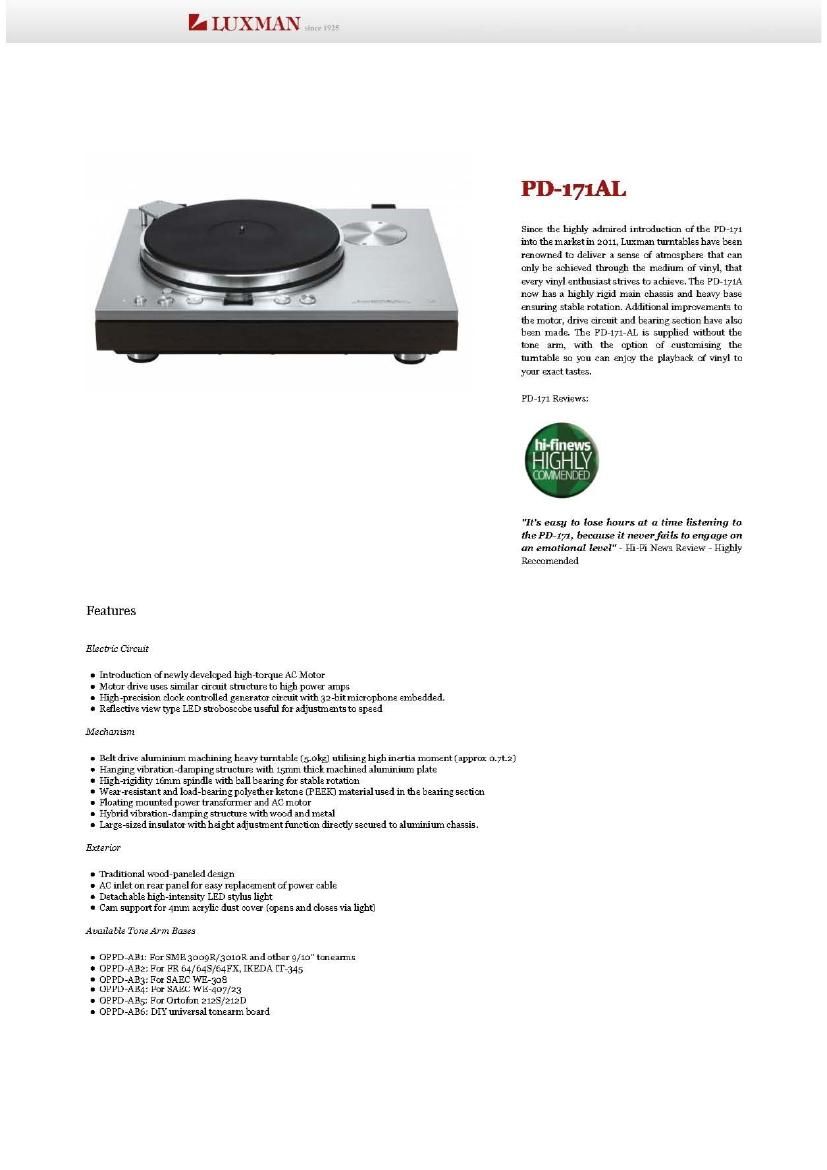

Page 1

h LUXMAN

Features

Electric Circuit

0 Introduction of newly developed high-torque AC Motor

I Motor drive uses similar drouit structure to high powe- amps

. High precision clock cont-died generator circuit with 3 2 -bit miuopbone embedded
0 Reflective View type LED stroboscobe useful for adjustments to speed

Mechanism

a Belt drive aluminium machining heavy turntable (5 0kg] utilising highinertia moment (approx 0.7L?)
0 Hanging vibration-damping structure with 15mm thick machined aluminium plate

a mghrngidiry 16mm spindle with ball bearing fin- stable rotation

I Wear-resistant and load-bearing polyether ketune (PEEK) material used in the bearing sectim

n Floating mounted power transformer and AC motor

I Hybrid vibratianrdamping structure with wood and metal

. Large-shed insulator with ha'ght adjustment function directly secured to aluminium chassis.

Exterwr

a Traditional woodrpaneled design

0 AC inlet on rear panel breasy replacanent of power cable

0 Detachable high-intensity LED stylus light

o Cam suppon for 4mm acrylic dust cover (opens and doses via light)

Available Tone Arm Eases

- OPPD-ABl: For SME3009R/3amR andother 9/10" tonearms
- OPPDVAM: For FR 64/648/64FX, [KEDA r1345

0 OPPD-ABa: For SAEC WE-308

- OPPD-ABq: For SAEC we-4o7/23

o OPPDVAB5: For Ortolun 2125/212D

- OPPD-ABE: DIY universal tonearm board

PD-171AL

Since the highly admired introduction of the PD7171
into the marketin 2011, Luxman turntables have been
renowned to deliver a sense «i atmosphere that can
only be achieved throng: the medium of vinyl, that
every vinyl enthusiast strives to achieve. The PD»171A
now has a highly rigid main chassis and heavy base
ensuring stable rotation. Additional improvements to
the motor, drive circuit and bearing section have also
been made. The PD-l7)vAL is supplied without the
(one arm, with the option of customising the
turntable so you can mjoy the playback (f vinyl to
your exact tastes.

PD-l71 Reviews:

"It's easy to lose ham-s at a time listening to
the .PD-171, because it neuerfmb to engage ml
an ematiorml level" - Iii-Pi News Review - Highly
Recoomended

Page 2

25ur2

SPECIFICATIONS

Item

Drive System

Motor

Platter

Revolution

Revolution adjustment range
Wow and flutter

iner source

iner consumption

Dimensions (WxHxD)

Value

Belt drive system
Reaction and AC synchronous motor

30m machined aluminium plate

33 1/3 rpm, 45 rpm (2 speeds selectable)

5% (each rotation speed adjusts independently)
0.04% or less (W.R.M.S)

230v (5o Hz)

33w

492 x 140 (up to top face of platter), 195 (with dust cover mounted) x 407mm
