Luxman p 102 service manual

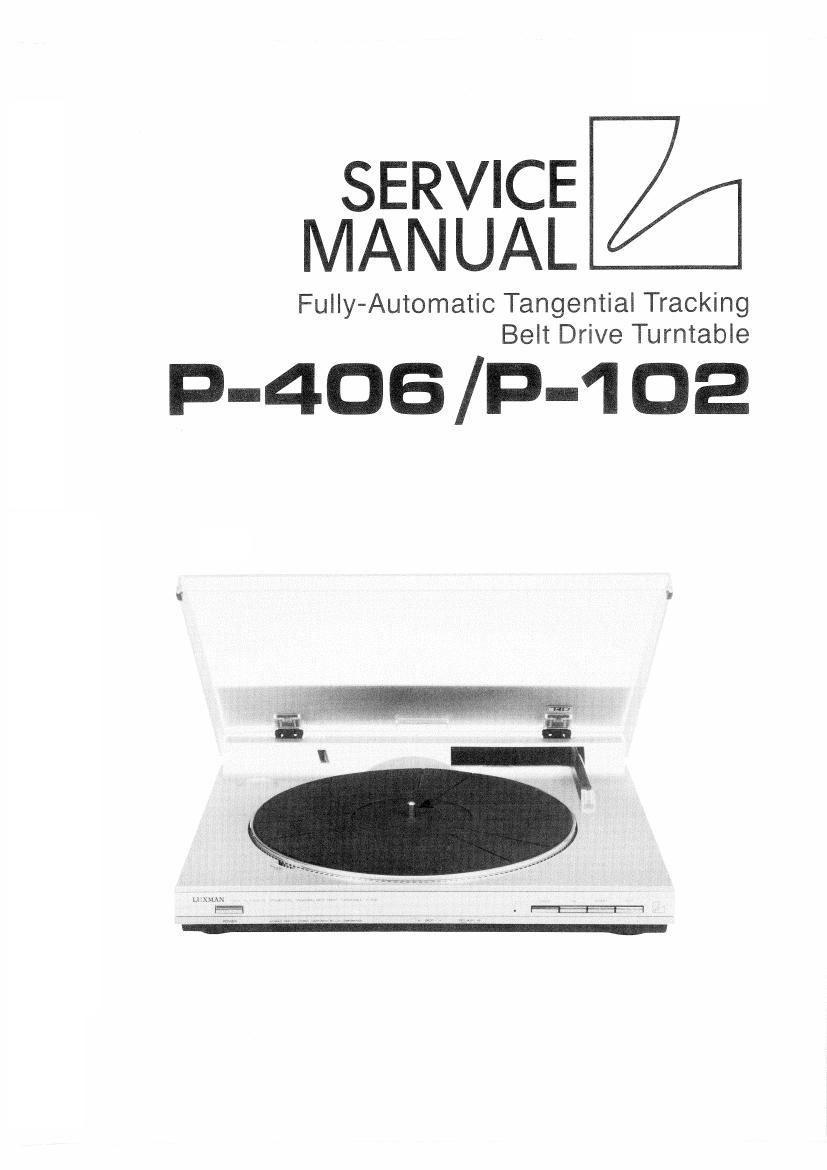

Page 1

SERVICE
MANUAL

Fully-Automatic Tangential Tracking
Belt Drive Turntable

P-4DB /P-1 02

Page 2

P-406/P-102

Contents
Specifications ................................................................. 2
Parts Locations and Disassembly Instructions ......................................... 3 to 7
Adjustment Procedures ........................................................ 8 to 9
Trouble Shooting Guide ........................................................ 10
Parts Layout on P.C, Boards ...................................................... 11
Wiring Diagram ............................................................... 12
Electrical Parts List ....................................................... 13 to 14
Schematic Diagram ........................................................ 15 to 16
Exploded View (Cabinet) .................................................... 17 to 18
Cabinet Assembly Parts List .................................................. 19 to 20
Packing Method View ........................................................... 21
Packing Assembly Parts List ...................................................... 22
Specifications
TURNTABLE
Motor ................................................................. FG Servo DC motor
Speeds ................................................................. 33-1/3 and 45r.p.m.
Wow& Flutter ............................................................... 0.1% (WRMS)
Rumble ......................................................... 60 dB DIN4553QB (weighted)
Turntable Platter ................................................ 296 mm aluminum alloy die-cast
TONEARM
Effective Length .................................................................. 130 mm
Tracking Error ........................................................... Within 01 degrees
Usable Cartridge ....................................................... Universal P-mount type
CARTRIDGE
Type ........................................... P-mount system, with 0.6 mil stylus Dual Magnet type
Frequency Response ......................................................... 20 N 20,000 Hz
Output Voltage ................................................ 2.5mV :3 dB at 1 kHz 3.54 cm/sec.
Channel Balance ......................................................... Within 2 dB at 1 kHz
Channel Separation .................................................... More than 18 dB at 1 kHz
Load Resistance .................................................................. . 47KB
Weight ............................................................................ 6 g

OPERATION: Microcomputer-controlled fully automatic: Automatic start, return, repeat and record size selectcy by beam

sensor

Cueing ................................................................ DC motor controlled
Muting .................................................. Reed relay method avoiding shock noise
Speed Selector ......................... Automatic selection by beam sensor (switchable for manual operation)
GENERAL

Power Consumption ............................................................... 12 watts
Dimensions ..................................................... 416(W) x 94(H) x 134.6(0) mm
Weight ...................................................................... 41 kg (net)

NOTE: Due to continuing product improvement, specifications and design are subject to change without notice.

_2_
