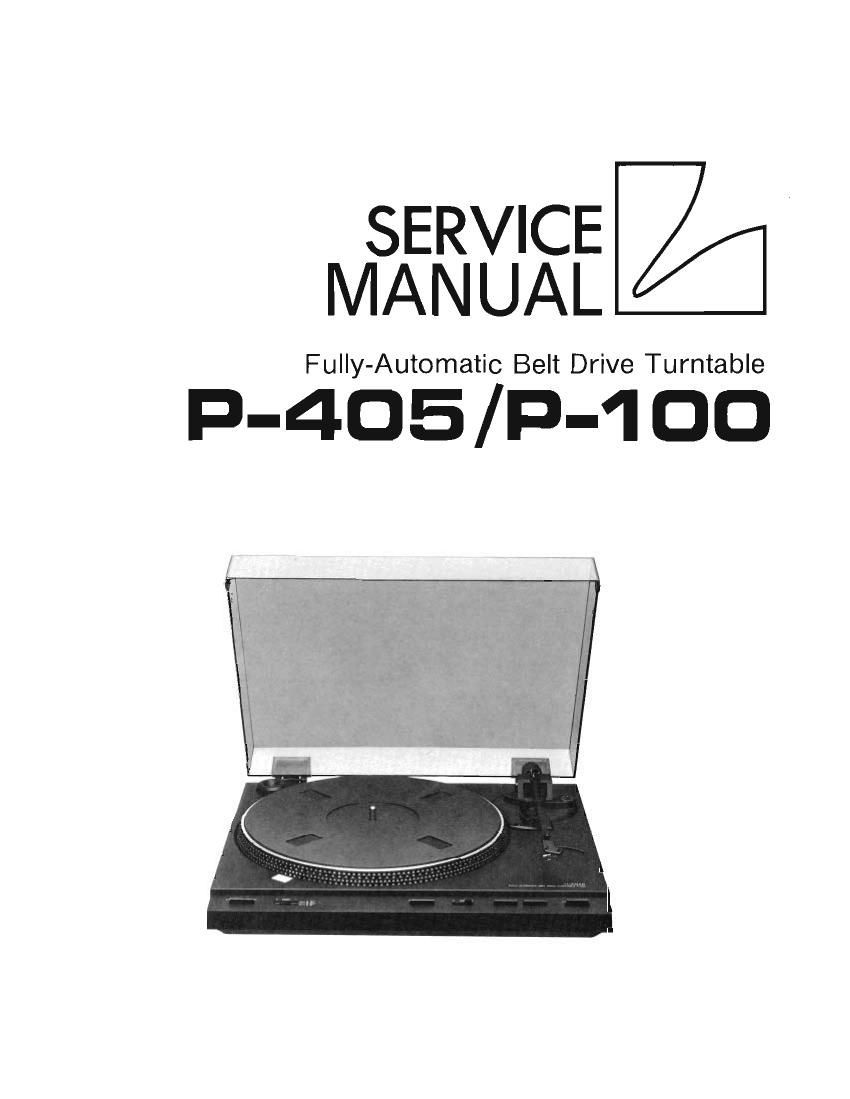

Page 1
SERVICE gj
MANUAL
Fully-Automatic Belt Drive Turntable
P-405 / P-1 DO
Page 2
P-405/P-100
Contents
Specifications ................................................................... 2
Parts Layout on P.C. Board .......................................................... 3
Wiring Diagram .................................................................. 3
Schematic Diagram ............................................................... 4
Electrical Parts List ............................................................... 5
Cabinet Assembly Parts List ...................................................... 6 to 8
Exploded View (Cabinet) ....................................................... 9 to 10
Packing Method View ............................................................. 1 1
Packing Assembly Parts List ........................................................ 12
Specrfications
TURNTABLE
Drive System .................................................................. Belt Drive
Motor ................................................................. FG Servo DC Motor
Platter ............................................................ Aluminum Die-cast, 30 cm
Speeds .................................................................... 33 1/3, 45 rpm
Wow & Flutter ............................................................. 0.05% DIN Wtd.
Rumble ................................................................. 72 dB DIN-B Wtd.
TONEARM
Type ............................................. Straight-Line, Tubelar, Staticbalanced Anti»Skating
Operation ................................................................ Fully-Automatic
Effective Length .................................................................. 222 mm
Overhange ..................................................................... 16.8 mm
Adjustable Tracking Force .......................................................... 0 -- 2.5 g
Usable Cartreidge Weight ....................................... 4.0 - 8.5 9 (With subAcartridge weight)
GENERAL
Power Source ................................................................. 120V, 60 Hz
220V, 50 Hz {AD model only)
Power Consumption ................................................................... 4W
Dimensions ..................................................... 416(W) x120(H)x 375(D) mm
(16.4 x 4.7 x 14.2 inches)
Weight ................................................................ 5.3 kg (11 lb. 11 02,)
Note: Due to continuing product improvement, specifications and design are subject to change without notice.
