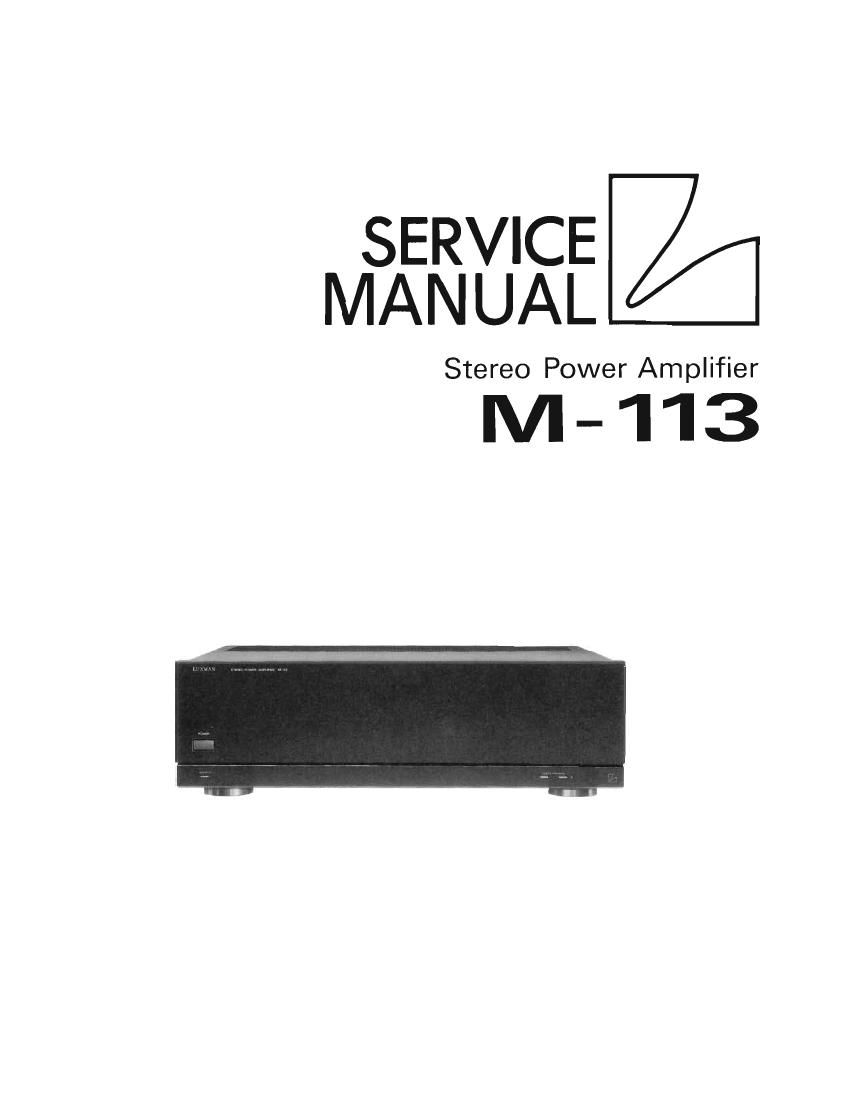

Luxman M 113 Service Manual
This is the 17 pages manual for Luxman M 113 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Luxman M 113 Service Manual (Ocr-read)
Page 2
M-113
Contents
Specifications ........................................................................................................................................ 2
Parts Location and Disassembly Instruction ............ ......... 3 to 5
Adjustment Procedures ........................... ............... 6
Adjustment Location .. 7
Block Diagram ................ 8
Schematic Diagram .................................... 9 to 11
Parts Layout on PC. Boards & Wiring diagram . 12 to 14
Electrical Parts List ........................................... .. 15 to 17
Cabinet Assembly Parts List .......... 18
Exploded View (Cabinet) ........ .. 19 to 20
Packing Assembly Parts List 21
Packing Method View ......................... 22
Semi-Conductor Lead Identifications ............................................................................................ 23 to 24
Specification
Power Supply .................................................................................................................... AC120V/60Hz
Power Consumption
Load Impedance .................................................................................
Power Output (at 0.03% THD, 8 ohm, 20Hz~20kHz)... .. 60 W
Max. Power Output (4 ohm, 1kHz) ............................... 100 W
T.H.D. (Input 1V at 50W Output, 8 ohm. 20Hz~20kHz) .................................................................. 0.33%
Input Sensitivity (at 50W Output, 8 ohm, 1kHz) ............................................................................ 1Vi20%
Input Impedance (1 kHz) .............................................................. 42 kohmi20%
Frequency Response (at 1W Output, 8 ohm) .......................................... 20Hz~20kHz +0, -0.3 dB
5Hz~100kHz :93 dB :33 dB
S/N Ratio (Input Terminal Shorted, 8 ohm) ............................................................................. 105 dB
Cross Talk (at 50W Output, 8 ohm, 1kHz) .. .................................... 70 dB
Semiconductors .......................................................................................... 3|Cs, 42 Transistors, 4 FETs
, 25 Diodes, 7 Zener Diodes
Dimension .................................................................................................. 483(W) x 137(H) x 365(D) mm
Weight ............................................................................................................................................ 8.5 Kg
