Luxman lv 111 service manual
This is the 25 pages manual for luxman lv 111 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from luxman lv 111 service manual (Ocr-read)
Page 1

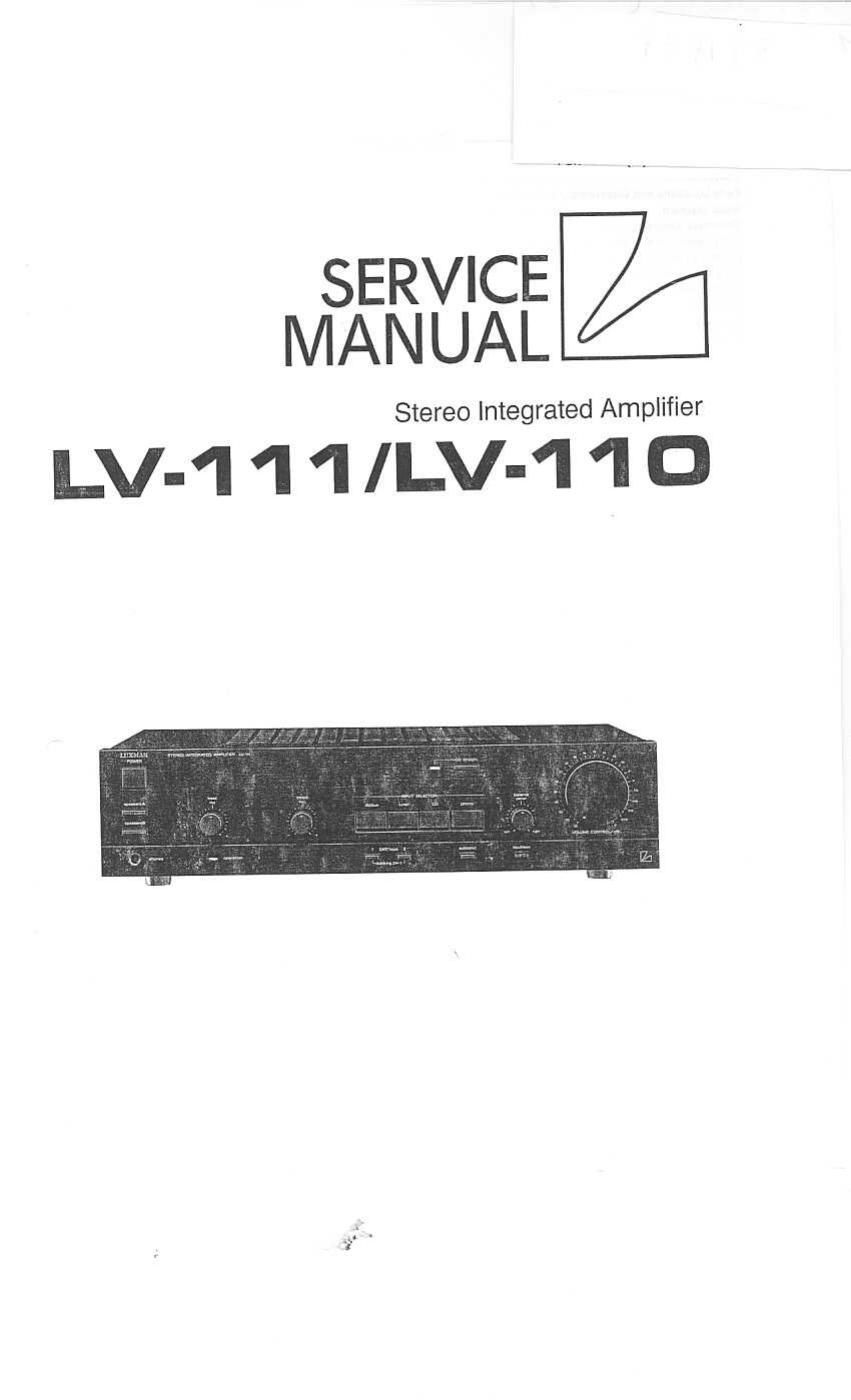

SERVICE 23
MANUAL
Stereo Integrated Amplifier
LV-| 1 I ILV-| 1 D
Page 2
11F
11 /
10
Contents
Specifications ............................................................................ 2
Parts Locations and Disassembly Instructions .................................................. 3 to 5
Block Diagram ............................................................... 5
Schematic Diagram ..................................................................... 7 to 9
Fans Layout on F.C. Board and Wiring Diagram ............................................... 10 to 12
Electrical Pans List .................................................................... 13 to 15
Parts List by the Destination ................................................................. 17
Cabinet Assembly Parts Llst ................................................................ 1B
Exploded View (Cabinet) ............................................................... 19 to 20
Packlng Assembly Parts List ................................................................. 21
Packing Method View .................................................................. 21
Semi-Conductor Lead Identifications ........................................................... 22
SpeCIfIcatIons
Power-Output (LV-111 only] ......................................... 40W (0.05% THD at 20 Hz - 20 kHz)
(LV~11D only) ......................................... 30W (0.05% THD at 20 Hz - 20 kHz)
input Sensitivity 11 kHz] ......................................... PHONO: 2.5 i0.25mV, CD: 150 i15mV
TUNER: 150 i15mV, AV/AUX: 150 115mV
TAPE-2: 1 50 t 1 SmV
DAT: 150 i15mV
Input Impedance (1 kHz] .............................................. PHONO: 47K ohm, CD: 35K ohm
TUNER: 35K ohm, AV/AUX: 35K ohm
TAPE-2: 35K ohm
DAT: 35K ohm
Frequency Response .......................................... FHONO (Rec Out): 100 Hz +1109 11 dB
F'HONO [Rec Out): 10 kHz -13.73 11 dB
AV/AUX (Speaker Terminal): 10 Hz - 70 kHz +1 -3 dB
Signal to Noise Ratio .......................................... FHONO: 76 :13. CD: 88 dB. TUNER: 39 dB
AVIAUX: 89 dB. TAPE-2: 39 dB
DAT: 89 :18
Power Supply ..................................................... AD: 100/ 1 20/2201240V (50/50 Hz)
U0: 120V (60 Hz)
Power Consumption .................................................................... 230W
Semiconductors . . . . . ............................. 4 IC's, 25 Transistors. 20 Diodes, 6 Zener Diodes, 2 LED's
Dimension ........................... 438(W) x 110lHl x 278(0) mm
Weight (Nell ................................................................... LV-111: 6.3 kg
LV-110: so kg
Note: LV-111 ................................................................ AD. U0 model only
LV-110 ........................................................... . . . . AD, U0 model only
NOTE: Due to continuing product improvement, specifications and design are subject to change without notice.
_2_
