Luxman L 4 Owners Manual

Extracted text from Luxman L 4 Owners Manual (Ocr-read)

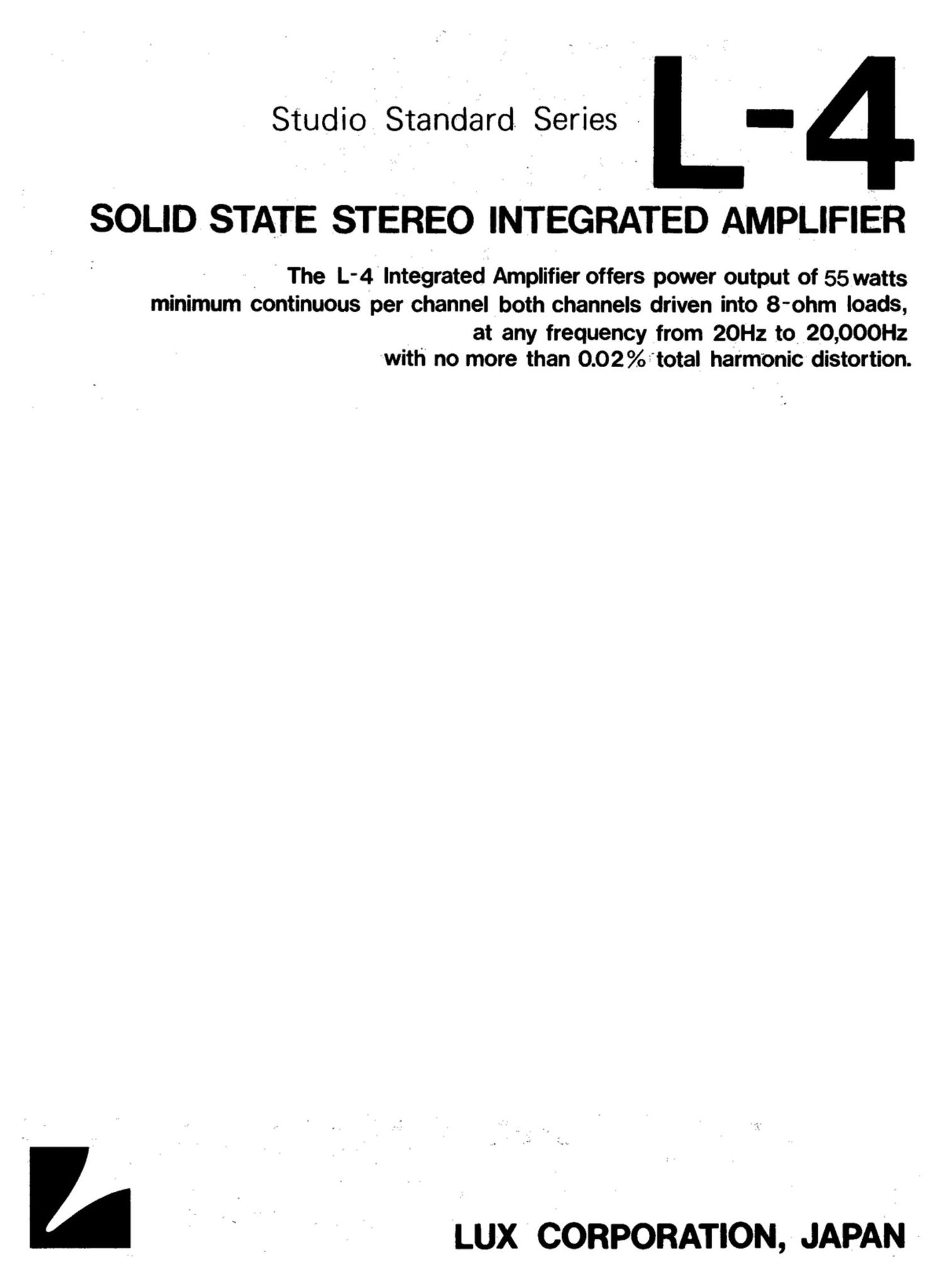

Page 1

Studio Standard. Series , -

SOLID STATE STEREO INTEGRATED AMPLIFIER

. The L-4 Integrated Amplifier offers power output of 55 watts
minimum continuous per channel both channels driven into 8-Ohm loads,

_ at any frequency from 20Hz to 20,000Hz
with no more than 0.02%"total harmonic distortion.

Lux CORPORATION, JAPAN

Page 2

-CONTENTSZ_

OSWITCHES 8: TERMINALS ------------------
OCONNECTION 81 OPERATION OF

RECORD PLAYER & TUNER """""" 6-9
OCONNECTION & OPERATION OF
TAPE DECK """"""" 10-1 1
OOPERATION OF CONTROLS ----------- 12-13
OBEFORE CONSULT|NG A
SERVICE SHOP ..................... 14
OSTANDARD CURVES ........................... 15

.SPECIF'CATIONS ................................. 16
