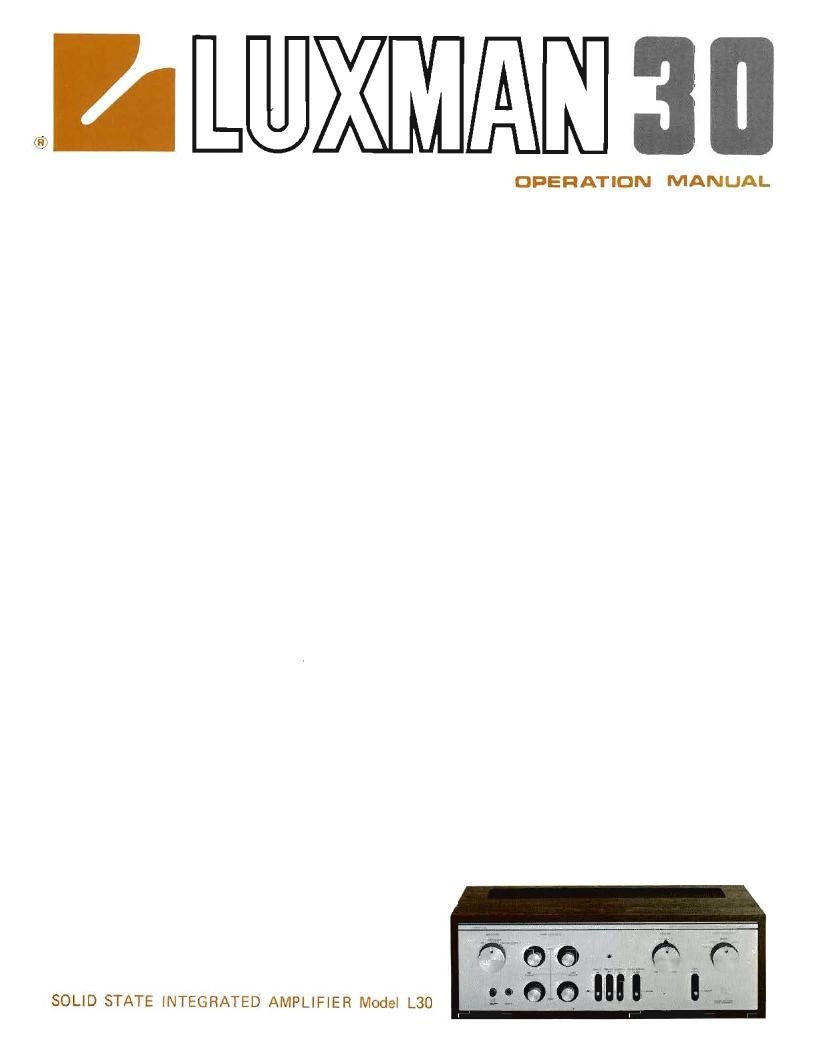

LWJXMR] 3|]

DPERAT ION MANUAL

SOLID STATE INTEGRATED AMPLIFIER Model L30

Page 2

Control & Connectors
Switches 8t Controls

1. Speaker Selector Switch (SPEAKERS)

This amplifier otters convenient use :il 2 sneaker systems,
Main and Remote. You can choose independent drivmg
ol 2 systems as per the indication of the front panel. At
the OFF position, the speakers are disconnected from the
amplifier, and you can enioy private listening by head-
phone.

2. Mains Switch (POWER)
Press altelnately for ON or OFF.

3. Headphone Jack (PHONE)

Connection at a stereophonic headphone to this jack allows
private listening, Output signal is always available regard-
less of the position of the Speaker Selector Switch (ii. For
private listening, however. set the Speaker Selector Switch
at the OFF position.

4. Bass Level Control (BASS)

A clockwise turn of the control boosts the bass response.
and a counter-clockwwe lUrn decreases the bass. It yields
a flat frequency response when set at the center of rotation.
These level controls are independent, and permit separate
control of both left and right channels. The left one for
Ielt channel. This is convenient for adjustment of different
levels between both channels due to differences in the
speaker systems.

[-I Sneaky! Snloclm Swflch (SPEAKERSI

F5. Yreblc Level Control [TREBLEi

5. Treble Level Control (TREBLE)

A clockwise turn ol this knob boosts the treble response,
while a counter-clockwise turn decreases the treble. This
control is of the same construction as that of the Bass Level
Control, and its operation corresponds to that described
in (4).

6. Loudness Switch (LOUDNESS)

This switch has 2 positions offering flat frequency response
and loudness control. Refer to the "Operation of Loud-
ness".

7. Low Cut Filter (LOW CUT)

OFF at the down position. When moved up to the on"
posnion, a bass roll»olt occurs at 70H: at the rate ol
BdB/Oct. For further details, refer to Low Cut Filter
lPage 6 l.

8. High Cut Filter (HIGH CUT)

OFF at the down position. When moved up to the on"
position, the amount ol high frequencies is reduced sharply
at the rate of odB/Oct. For further details, refer to High
Cut Filter (Page 6 l.

9. Tape Monitor Switch (MONITOR)

When this switch is lifted up to the "tape monitor position
playback from "TAPl DECK is possible. The tape cone
nectar lift) is also functionable when the switch is set at
the "ONposmon. Le. it functlons in parallel with "MONI".

ll Input Selector Switch -

to Pilot Lamp

13 Volume Control
lVOLUMEl

4 Bass Level CDnlrol
lBASSl

:i Handyman. Jock (PHONE)
7 Mums Switch (POWER!

. Low Cut Fillet lLOW CUT)

\V

l 7 Mode Selactot Switch
B Loudness Swllch (LOUDNESS)

6 ngh Cut Film! (HIGH CUT?

9. Tape Monitor Swrlch lMONIYORl
