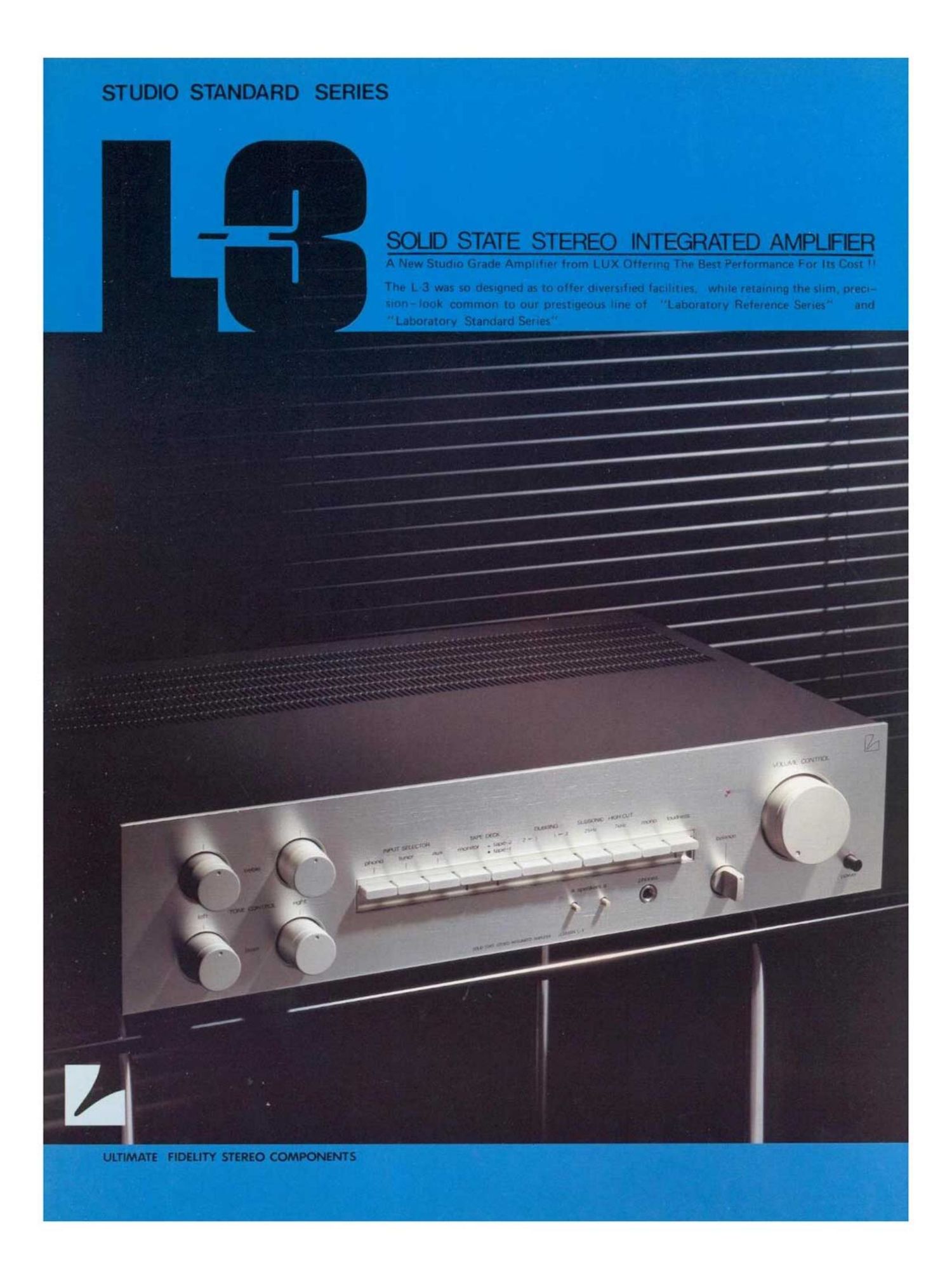

luxman l 3 brochure

Extracted text from luxman l 3 brochure (Ocr-read)


Page 2

Features:

Totally directcoupled amplifier circuitry at the
power amp section with dual rail power supply
offers a high damping factor at the ultra bass range
to ensure eliicient driving of loudspeakers. To
reduce the crossover distortion down to the
minimum level, a thorough complementary
configuration is employed at the output stage by
means of PNP and NPN transistors. while the
driver transistors have extremely good heat-
dissipation to ensure high dependability.
Transistors having high cut-oil lrequency are used
in the driver stage to help reduce distortion in the
treble range.

SpeCially selected low noise transistors and resistors
in conjunction with low leakage type electrolytic
capacitors realize good S/N ratio.

The 2stage equalizer amps using PNP and NPN
transistors not only offer outstanding linearity but
handle sufficiently high input voltage (ISOmV,
tkl-(z. RMS).

LUX's well-known NF type tone controls are
provided independently for both right and tell
channels and make it possible to tailor reproduced
sound according to y0ur own state. At the center-

click point a true flat frequency response is obtained.

A highcut filter is prowdad to remove unpleasant
tape hiss. disc scratch horse etc.. while subsonic
filter is uselul to get rid of all the bad effects at
turntable rumble and intrasonic disc noise. A
loudness control is employed for proper
compensation at low level at listening. 2 pairs of
tape monitor circuits permit dubbing from one
tape to another.

The speaker selector allows you to drive either A
and 8 speakers separately or both of them
simultaneously

Styling:

A truly high quality precision image was achieved
in this audio component thanks to its meticulous
finish nl totally metallic structure Aluminium
extruded (ront panel provides an optimum match
with the elegant case and precision metallic

knobs. The exhaustive study 0' human engineering
is reflected in the placement oi the varioiis knobs
and controls for easiest and most logical operation

Tape Monitor Button
Input Selector Buttons

Treble Control

Bass Control

Tape Reprint Buttons lDUBBlNGl Subsonic Filter
Tape Selector ButIOn

Speaker Selector Buttons -- jl
Headphone Jack

High Cut Filter

Mode Selector Button
Loudness Button

[-W Pilot Lamp

Balance Control

Volume Control

AC Power Switch -'

L-3 SPECIFICATIONS

Power Output:
Total Harmonic Distortion:

Road I.M.:

Frequency Beam:

azwmzw (8 ohms. both channels driven)
no more than 0.03%

(8 ohms. both channels driven)

no more than 0 05%

(8 ohms, 42WIchL60Hz 7kHz = 4 , l)
15H! ~ GUM-(z (Within - IdBl

Input Sensitivity &
Input Impedance:

Signal-to-Noiso Ratio:
(input short-circuitad)

PHONO 2.5 mV 50k ohms
TUNER MSmV 50k ohms
AUX 11)me 50k ohms

MONITOR-I ldij 50k ohms
MONITOR-2 I45mV 50k ohms

PHONO better than 84dB

(IHF~A weighted, lOmV)
TUNER better than 9068

(IHF-A weighted)
AUX better than 90dB

(IHF-A weightedl
MONITOR-l better than 9068

llHF.A weightedl

MONITOR-2 better than 90:18
llHF-A weighted)

Residual Noise:
Tone Control:

no more than lrnV
LUX NF type (lOOHz 9 l ldB, TOkHz HOdBI

Filter: High Cut 7k Hz (~6dB/oct.)
Subsonic 25H: (-6dB/0Cl.)

Channel Separation: PHONO better than 60dB
AUX better than 70dB

Additional Features:

Tape Monitor (dual). Tape Dubbing (dual). Loudness Control.
Mode Selector, Speaker Selector (A, B, A+B. OFF), Extra AC Outlets
(SWITCHED. UNSWITCHED), DlN Connector (Etype. S type only)

Dimensions: 438(W) x 289(0) x 105(H)

(l7-I/4" x 11-3/8" x 4-1/8")

(including Legs. Rear Protrusmns and Knobs)
Woidtt: Net 8.0kgs (17.6 lbs.)

Gross 95st (20.9 lbs.)

Specifications and appearance design subject to change without notice.
