Luxman L 1 L 1 A Service Manual

Extracted text from Luxman L 1 L 1 A Service Manual (Ocr-read)

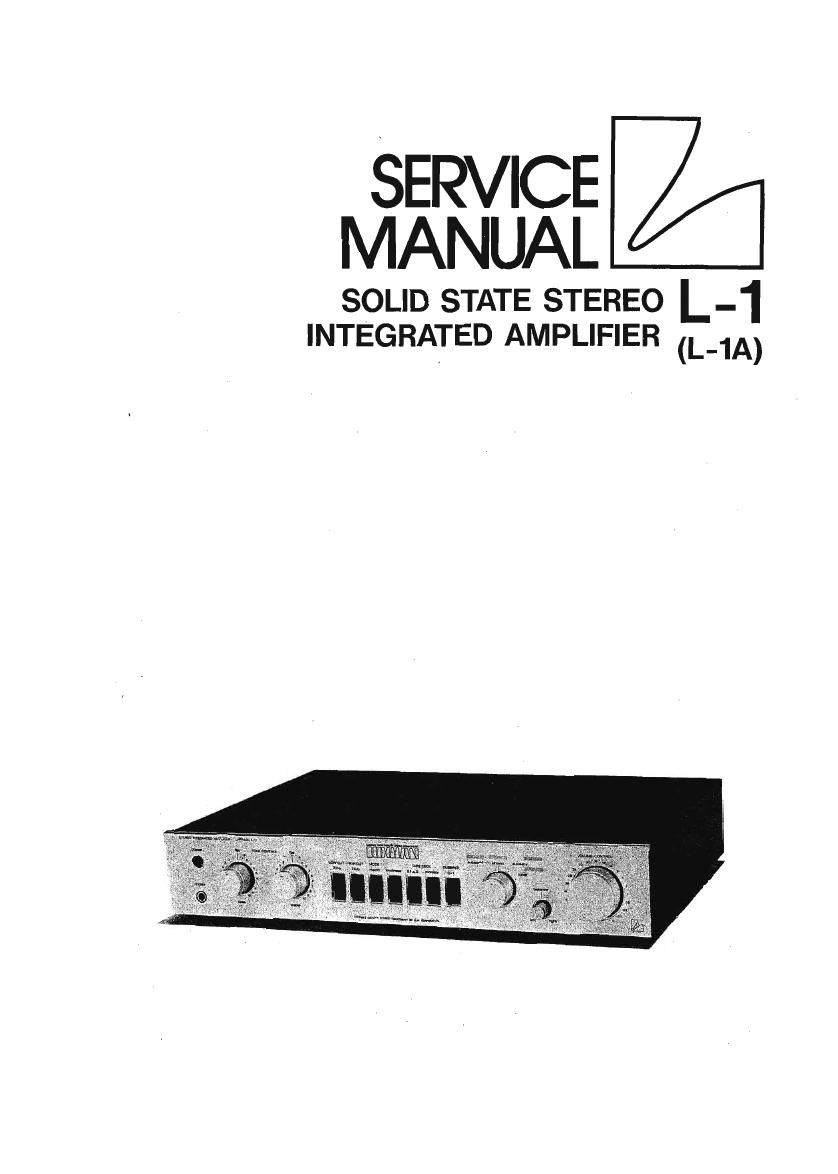

Page 1

SERVICE 23
MANUAL

SOLID STATE STEREO |__1
INTEGRATED AMPLIFIER (HA)

Page 2

L-l, L-lA Alignment Point
Bias Adjustment

1: Turn on the Power.SWitch and wait 3 minutes for Warm-up.

2. Set the VOLUME CONTROL to Minimum.

Take off F2011: and connect DC

amperemeter.
Adjust VRZOlb and set idling
Rea1\Panel current at 50mA.
L
p
I 1 0°
C;
> E2223
+l:l +F201b

|=| +F201a
2|

L_J

Cl
VRZOla

/

Front Panel

Take offFZOla and connect DC
ampere Meter. Adjust VRZOla
and set idling current at 50mA.
