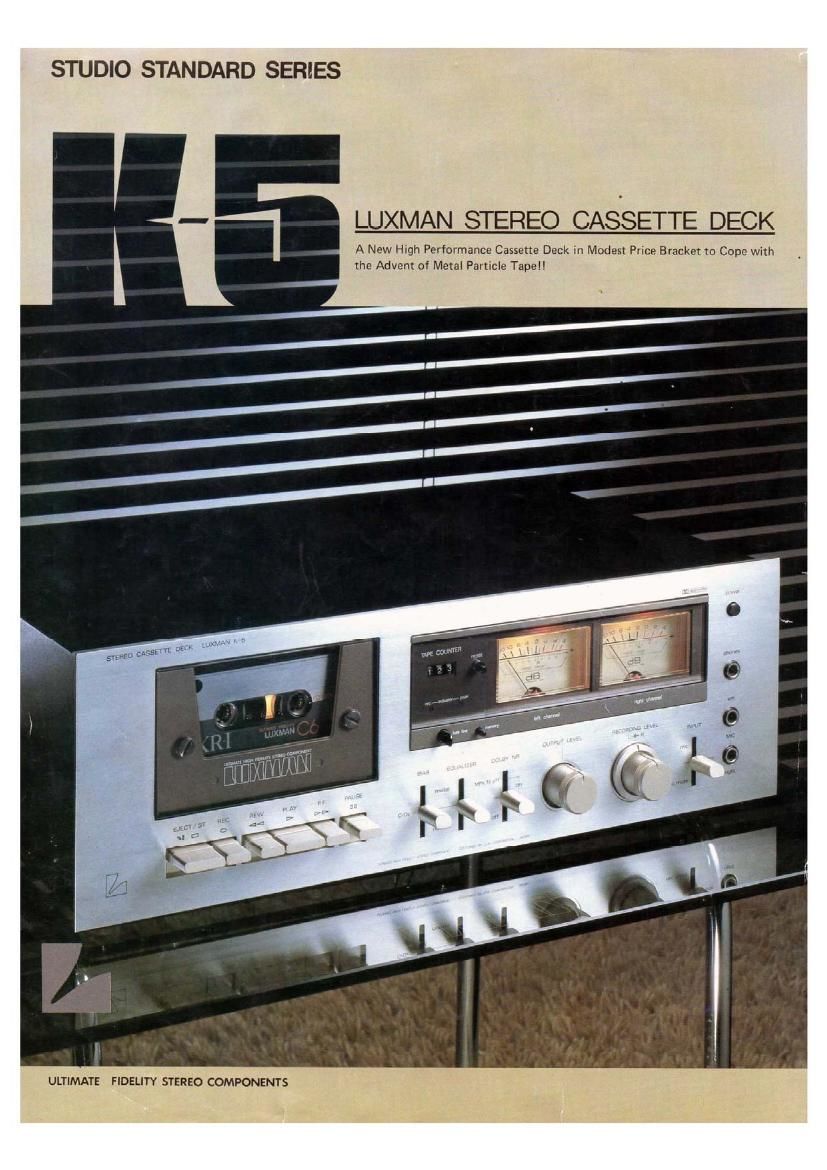

STUDIO STANDARD SERIES

LUXMAN STEREO CASSETTE DECK

A New High Performance Cassette Deck in Modest Price Bracket to Cope with .
the Advent of Metal Particle Tape

ULTIMATE FIDELITY STEREO COMPONENTS

Page 2

[FEATURES]
Use of Metal Particle tun

A total revolution is being brought about in
magnetic tapes with the advent of metal particle
tapes which provide unprecedented high
recording level exceeding 4dB as compared
with existing CrOz tapes. Now, true high
fidelity reproduction is possible with extended
dynamic range and superb S/N ratio. To handle
this epochmaking tape, exclusive positions

are provided for corresponding bias and
equalization. and a bias fine»tu no adjustment

is effective in obtaining the optimum bias

for this new type of tape.

High On lltv Sondust H II

Excellent frequency response and wear
characteristics are ensured through the use of
a pure Sendust alloy record/playback head
capable of handling even the latest line
metal tape. Also. we use an exclusive large
erase head of Sendust alloy lor perfecr
erasure of metal particle tape,

Rugged Tape Transport System

A highly dependable mechanical system
ensures stable tape transport. and a high
quality bridge motor drives the reel and
capstan smoothly. All the control knobs and
buttons are logically placed for the easiest
and most convenient operation,

Doloy' noise reduction system is incorporated
to remove unpleasant tape hiss without
impairing recording signals. and the Rec.

mute position is useful in cutting off
unwanted signals such as FM commercials, etc.
from your precious recordings. The memory-
rewind system is convenient when you want
to start playback at a desired portion or when
playback is to be repeated. An automatic

stop system is employed for all modes to
remove tension applied to tape at the end of
operation. Easy-to-read peak meters make it
possible to set up an appropriate recordan
level even for metal particle tape. The recording
input selector is effective in improving SIN
ratio when line input is used for recording.
Bias line control makes it possible to obtain
the optimum bias amount for the cassette tape
you use.

Included Accessories

Mic lnput Jacks, Hemohone Jacks. 3Fosition-

Bias/Eq. Selectors, bias Fine-Tune Adjuster, .
Memory Counter, Rec. 8: Peak Indicators. Dolby-
MPX Filter, VU Meter, REC. MUTE function etc.

Luxmon Cauette TIM

Coolltlr Reset Button vu mm Hlodnhorll mt
LED Polk Indie-tor
TIDI cot-um

according Indicator
Casio. Lie

Recording Input
Level Control

Elect a Stop auttan
Record an"... Output Lav-l Conlrpl
Dole' we Snitch
nmm auttan
Catt-nu Memory Button

PII Bun '
y Equ-Itui Sollcmr Swltch R""""° 5""

Fl Forward eutttm e... H" mm,

Patn- Button am Solector Switch

AC Pm! Switch

Mlc Imut Jack

LUX's Exclusive Cassette Tape has the following features:

(1) SKEW adiustmenr facility to obtain the optimum azimuth and tilt position.

(2) Wide pod and new holding mechanism to provide constant pressure for stable frequency
response.

(3) 4-guidaroller ayltam to prevent torque loss, offering constant backtension.

(4) High precision roller with reflection plate to endala to read realtima with our decks Models
5K5!) and K-12.
For complete information, ask your nearest LUX dealer.

SPECIFICATIONS

Meade: 2 heads lsendust) Record/Playback Head x l, Erase Head x 1
Drive Motor: Bridge motor
Tape Drive: Single capstan

Wow and Flutter:
signal-to~Nolso Ratio:

no more than 0.06% (W.R,M.S.l

better than 58dB (metal tape. Dolby' of
better than 55113 (metal tape, Dolby on)
better than 56dB lCrOz tape. DOLBY oil)
better than 63dB lCrOz tape. DOLBY on)
better than 50118 (LH tape. Dolby om
better than 60:15 (LH tape, Dolby onl

30 - 20kHz Metal tape
30 - lBkHz CrOz tape
30 -16|

Frequency Response:

Overall Distortion: no more than 1.5% (LH tape, 1kHz.0dBl

Real Analyzed Distortion: no more than 0.7% (LH tape, 1kl-lz. OdBl

Input Somitlvltv: line in: 100 mV
mic: 0.45 mV (recommended microphone impedance;
600 ~10l< ohms)
DIN; 2 mV/l K ohms
Output Level: 580 mV
Headphone Output: 1 MW (8 ohms)
Power Consumption: 20W
Dimensions: 438(W) x 264(0) x 150(Hlmm
(17-1/4" x 10-3/8" x 5-29/32")
(including Rear Protrusions. Legs 8t Knobs)
Weight: Net 5-8 kgs (15.4 lbs.)

Gross 6.8 kgs (18.7 Ibsl
Specifications and appearance design subject to change without notice.
' Dolby is the trade mark of Dolby Laboratories, Inc.
