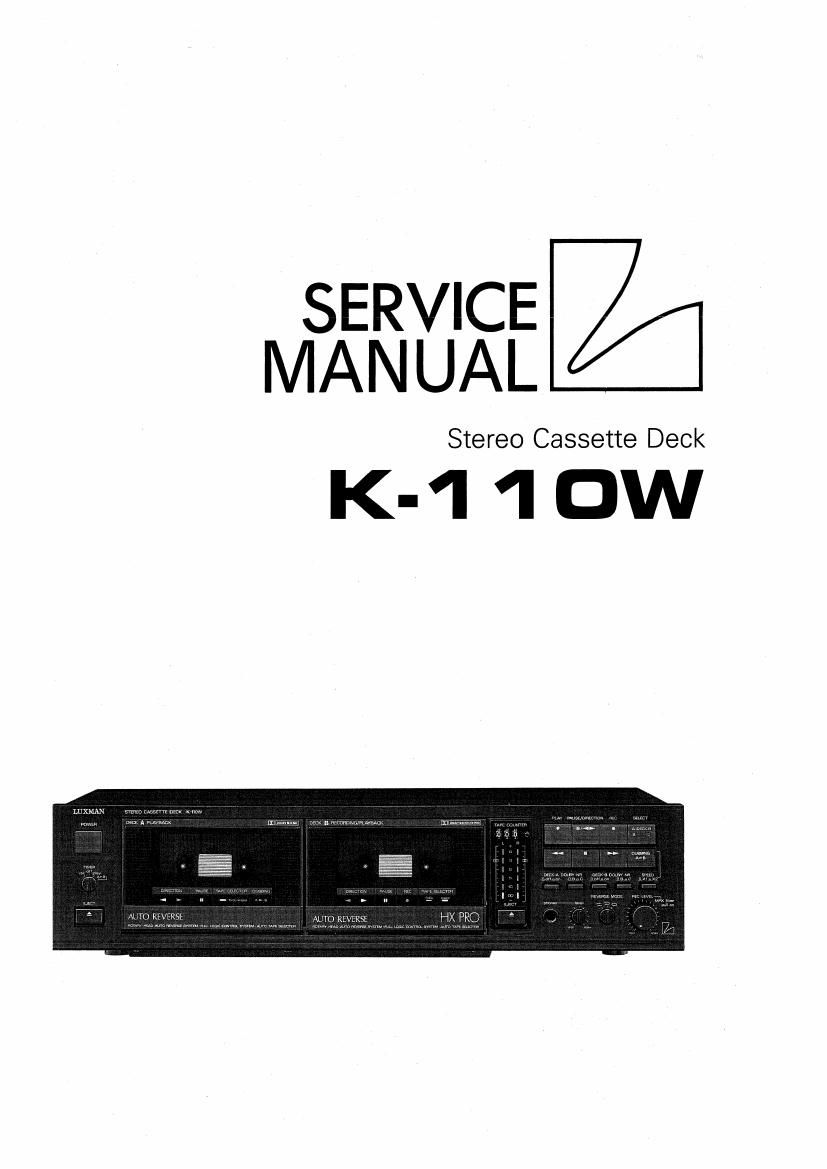

Luxman k 110 w service manual
This is the 36 pages manual for luxman k 110 w service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from luxman k 110 w service manual (Ocr-read)
Page 2
K-110W
Contents
Specifications ......................................................................................................... 2
Parts Locations and Disassembiy Instructions ----------------------------------------------------------- 3 to 6
Block Diagram
Adjustment Locations
Adjustment Procedures -
Parts Layout on F. C. Boards and Wiring Diagram -------------------------------------------------------- 13 to 15
Schematic Diagram (1/2) ~~~~~~~~~ 16 to 19
Schematic Diagram (2/2) - 20 to 23
Electrical Parts List ---------- 24 to 31
Parts LiSt by the Destination ....................................................................................... 32
Cabinet Assembly Parts List
Exploded View (Cabinet)
Exploded View (Cassette Deck)
Cassette Deck Assembly Parts List ------------------------------------------------------------------------- 38 to 39
Packing Assembly Parts List --
Packing Method View
Semiconductor Lead Identifications ..
.......... 36 to 37
Specifications
Power Source ................................................................ AC 120V, 60HZ (UC, UQ model only)
AC120V/220/240V, 50/50HZ (AD model only)
Tape Speed (MTT-iii) ................................................................... 4.75cm/sec. 4.3%, _2%
Wow & Flutter (MTT-111,JIS WRMS) ----------------- $0.1i%
FF/REW Time (060) .................................................................................... $105 sec.
Frequency Response (Playback, i4dB) -------------------------------------------------------- Normal : 4OHz~14kHz
Cr02 : 40Hz~16kHz
Metal : 40Hz~16kHz
S/N Ratio (Over all JiS weighted "A curve) ---------------- Dolby NR»OFF:Norma|;50dB. CrO;/Meta|:52dB
Dolby NR-B : Normal/CrO;/Metal§57d8
Dolby NR-C : Normal/CroggGSdB. Metala65d8
input Sensitivity ------------------------------------ Line§100mV
Output Level at OdB playback --------------------------------------------------- Line: 500mVi1.5dB/47k ohm
Headphoneé100mV/8 ohm
Distortion 3rd (OdBm input at 333Hz) ------------------------------------------------------------ Normal: $2.5%
Croz /Meta|: $396
Semiconductors ------------------------------------ 22 lCs, 82 Transistors, 39 Diodes, 4 Zener Diodes, 25 LEDs
Chassis Dimensions ------------------------------------------------------------- 438 (W) X100 (H) X250 (D) mm
Weight ............................................................................................................ 4'8kg
NOTE: Due to continuing product improvement, specifications and designs are subject to change without notice.
