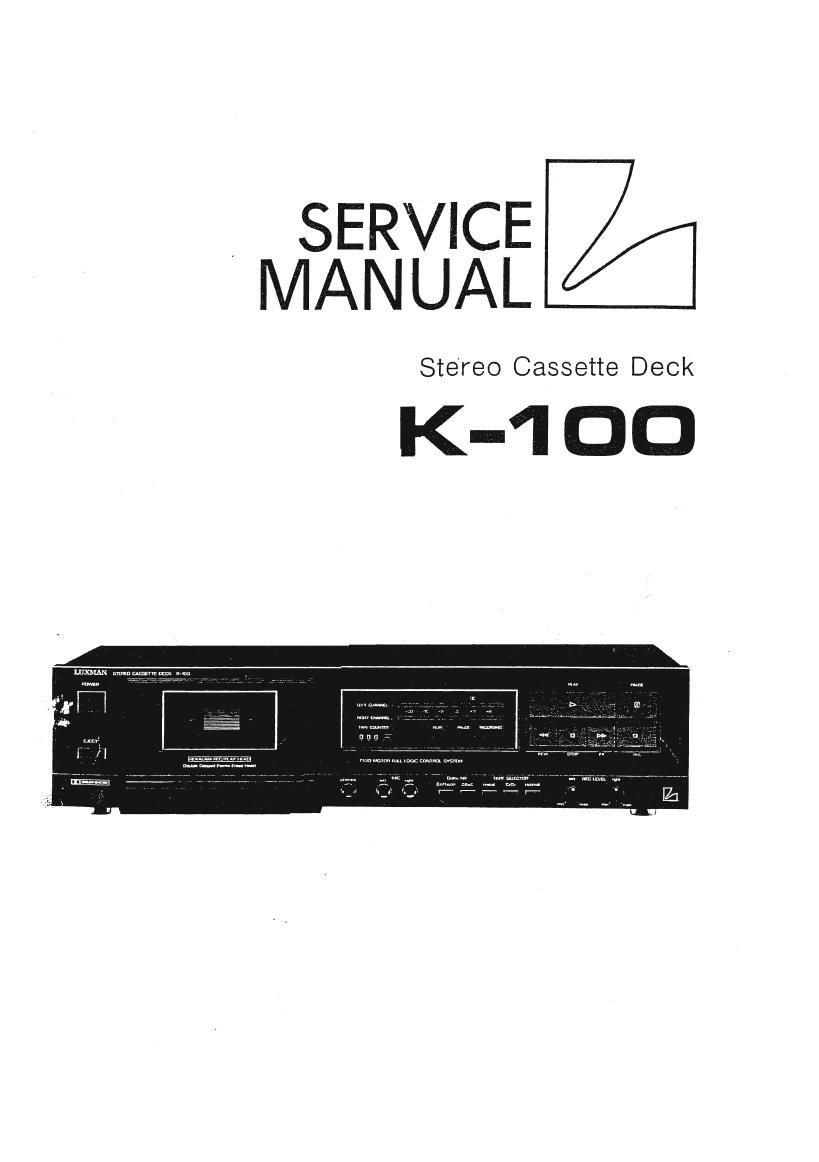

Luxman K 100 Service Manual

Page 2

Ll

Contents
Specifications ................................................................. 3
Parts Locations and Disassembly instructions ......................................... 4 to 6
Block Diagram ................................................................. 7
Adjustment Locatins .......................................................... 8
Adjustment Procedures ........................................ . ............. 9 to 10
Electrical Parts List ....... , ................................................... 1 1 to 17
Parts List by the Destination ........................................................ 18
Schematic Diagram ......................................................... 19 to 22
Parts Layout on P.C. Boards and Wiring Diagram ....................................... 23 to 26
Packing Assembly Parts List ...................................................... 27
Packing Method View ................................................ , . ....... 27
Cabinet Assembly Parts List ....................................................... 28
Explodeo View (Cabinet) ..................................................... 29 to 30
ExplodedView(CassetteDeck).....r..l.t.t................r.............,...r.l 31to32
Cassette Deck Assembly Parts List ................................................... 33
Semiconductor Lead identifications ............................................... 34 to 36

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass on
noticed and the protection afforded by them cannot necessariiy be obtained by using replacement components rated for
higher voltage] wattage, etc. Replacement parts that have these special safety characteristics are ioentified in this manual
and its supplements, electrical components having such features are identified by a [b in the schematic diagram and the
parts list.

Before replacing any of these components, read the parts list in this manual carefully. The use or substitute replacement
parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazarfls.

Pi? _i_4

CAUTlON:

Check the leakage-current between the exposed metal part and a pole of power cord, before returning the appliance to the
customer, It must be measured less than 0.5mA in 120V AC in accordance with the measurements of Appliance Leakage
Current" in UL 1270 paragraph 34,1 to 34.8.
