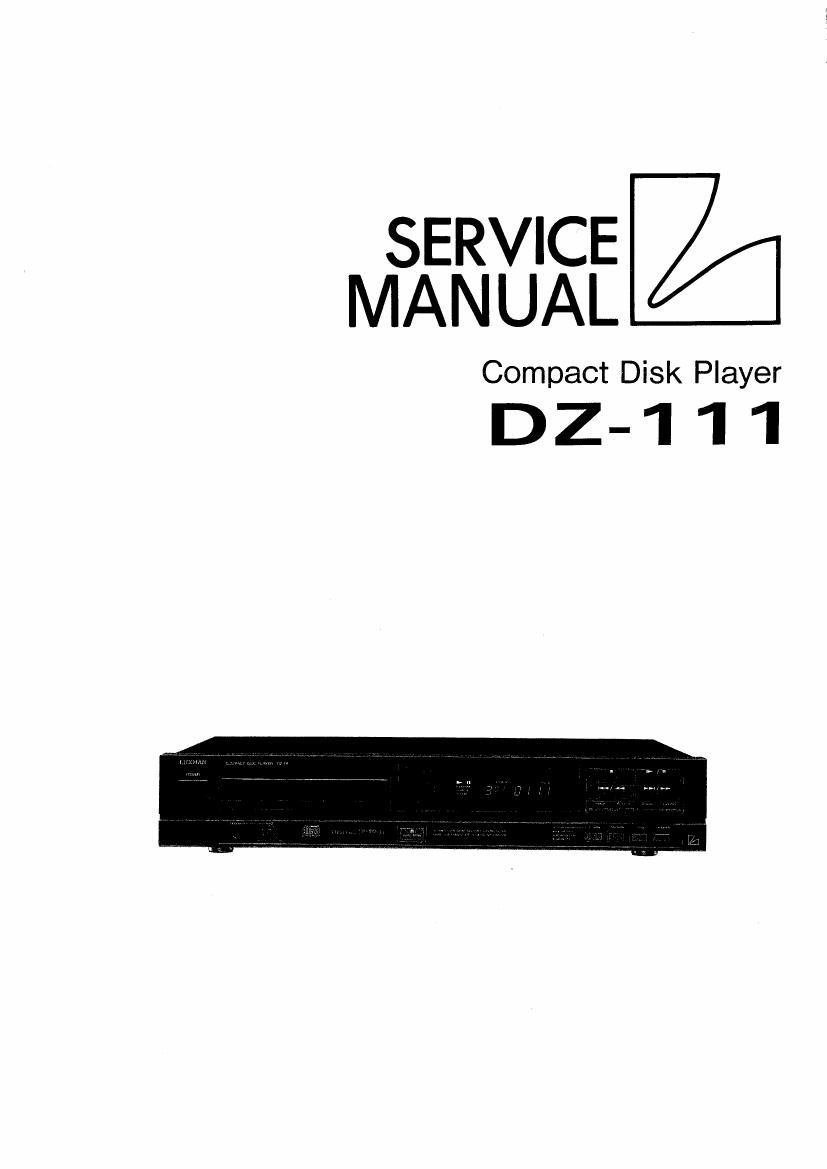

Luxman dz 111 service manual
This is the 29 pages manual for luxman dz 111 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from luxman dz 111 service manual (Ocr-read)
Page 2
Contents
Specifications .......................................................................
Parts Locations and Disassembly Instructions
Adjustment Procedures .......................................................
Adjustment Locations .....
Block Diagram ........
Schematic Diagram ....... .....................
Parts Layout on PC Boards and Wiring Diagram .................................. 15 to 18
Electrical Parts List .................................... 19 to 22
Cabinet Assembly Parts List ......................
Exploded View (Cabinet) ........................................... 23 to 24
Exploded View (Deck) ...... 25
Mechanism Assembly Parts List .......................................................... 26
Packing Assembly Parts List ............................................... 27
Packing Method View ........... 27
Semi-Conductor Lead Identifications .................................. 28 to 36
Specifications
Systems .......................................................................................................... Optical (Compact Disc System)
Quantizing Bit Number .................. 16 Bit Linear System
Channels ...... 2 Channels, Stereo
Pick up ..... Semiconductor Laser Pick-up
Output Voltage .................................... 2Vi1 dB
Frequency Response .. 50 ~ 20kHzi1dB
T.H.D (1kHz) ........................................ 0.08%
S/N Ratio ........................................... 100dB
Dynamic Range .......... . 85dB
Channel Separation (1kHz) .............................. 90dB
Headphone Output Voltage (1kHz, -20dB/80hm) ................................................................ 190mV¢1dB
Power Supply ..................................................................... A0120/220/240V, 50Hz (EK, AD Model Only)
AC120V, 60HZ (U2, U0 Model Only)
Power Consumption ............................................. 10W
Semicondutors ............ .. 16 IC's, 21 Transistors, 2 FETs,
27 Diodes, 1 Zener Diode
Dimension (WxHxD) ............... 438x85><314 mm
Weight ................................................................. 5.5 kg
