Page 1

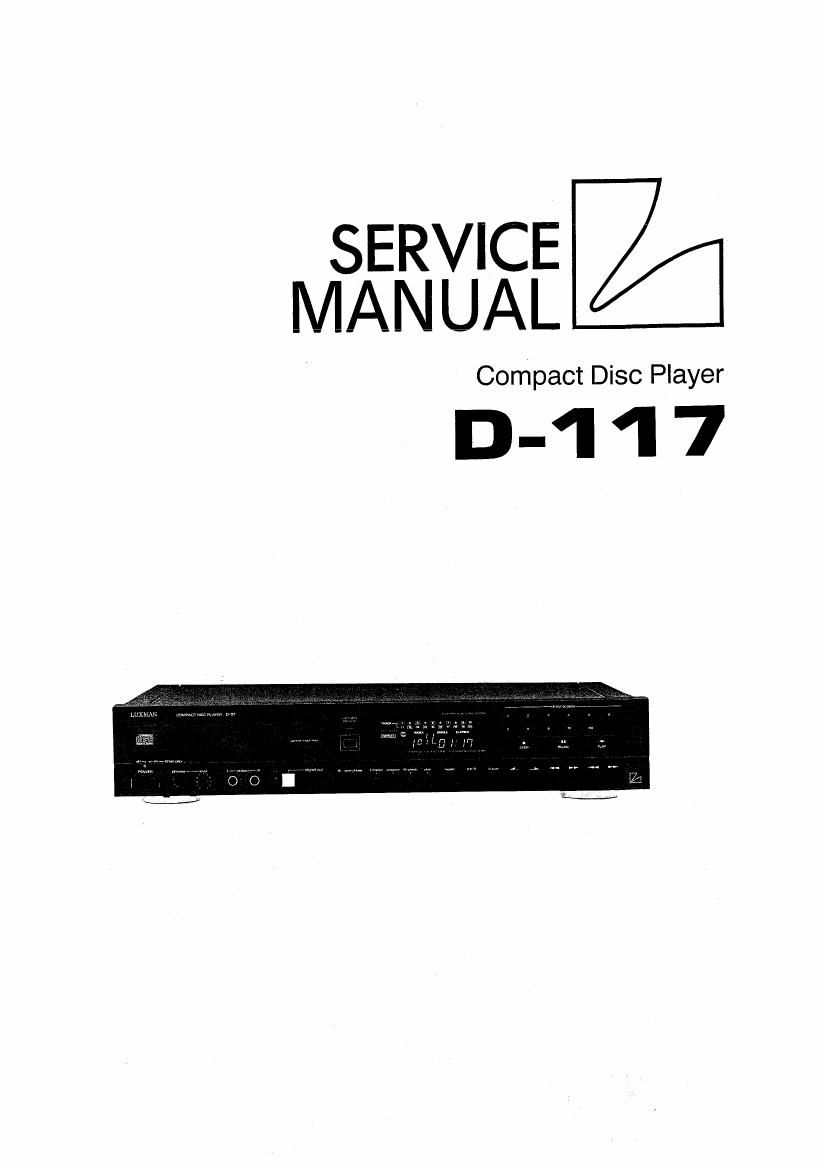

SERVICE 2:]
MANUAL

Compact Disc Player

D-117

Page 2

D-117

Contents
Specifications .................................................................................................... 2
Parts Locations and Disassembly instructions ------------------------------------------------------------- 3 lo 4
Adjustment Procedures ........................................................................ 5 m 8
Adjustment Locations ----------- 9
Block Diagram .................................. 10
Parts Layout on P. C. Boards and Wiring Diagram (1/2) (JA. AD and U2 model only) ---------------- 11 to 13
Parts Layout on P. Q Boards and Wiring Diagram (2/2) (UQ model only) ----------------------------- 14 to 16
Schematic Diagram (1/2) ----------------- 17 to 19
Schematic Diagram (2/2) to 22
Electrical Parts List to 27
Cabinet Assembly Parts List H 28
Exploded View (Cabinet) ................................................. . ................................ 29 to 30
Exploded View (CD Mechanism) .......................................................................... 31 to 32
CD Mechanism Assembly Parts List ............................................................................. 33

Packing Assembly Parts List -------------------------------------------- --34

Packing Method View ------------------------- 34

Semi-Conductor Lead Identifications 43

Specifications

CD SECTION
Systems

---Optica| (Compact Disc System)

Quantizing Bit Number -- --------- 16 Bit Linear System
Channels --------------- 2 Channels, Stereo
Pick-up ~~~~~~ Semiconductor Laser Pick-up
Output Voltage ---------------------------- ZVildB
Frequency Response -------------- 4~20kHzi1dB
T.H.D (ikHz) ~ 0.008%
S/N .......... QidB
Dynamic Range ------- 88dB
Separation (1 kHz) ...................................................... 82dB
Headphone Output Votage (1kHz, lOdB/B ohm) -
power Supply ............................................................. "AClOOV. 50/60Hz (JA Model only)
A6120/220/24OV, 50H: (AD Model only)
ACiZOV, 60Hz (U2 and U0 Model only)
Power Consumption ................................ 15W
Semiconductors --------------- ~24 ICs, 26 Transistors, 2 FETs,

10 Diodes. 8 Zenar Diodes (JA, AD and U2 Model only)
24 IC's, 25 Transistors, 2 FETs,
10 Diodes, 8 Zener Diodes (U0 Model only)

Dimension (W X H X D) 438 X 85 X 314mm

Weight .......................................... 5kg
COMPACT DISC

Track Pitch ..... 15 u m
Modulation Frequency .......... 44.1kHz
Transfer Rate -------------------------- 4.3218M Bit/sec.
Dimension 120 X 1.2mm

NOTE: Due to continuing product improvement, specifications and design are subject to change without notice.

-2-
