Luxman D 113 Service Manual

Page 1

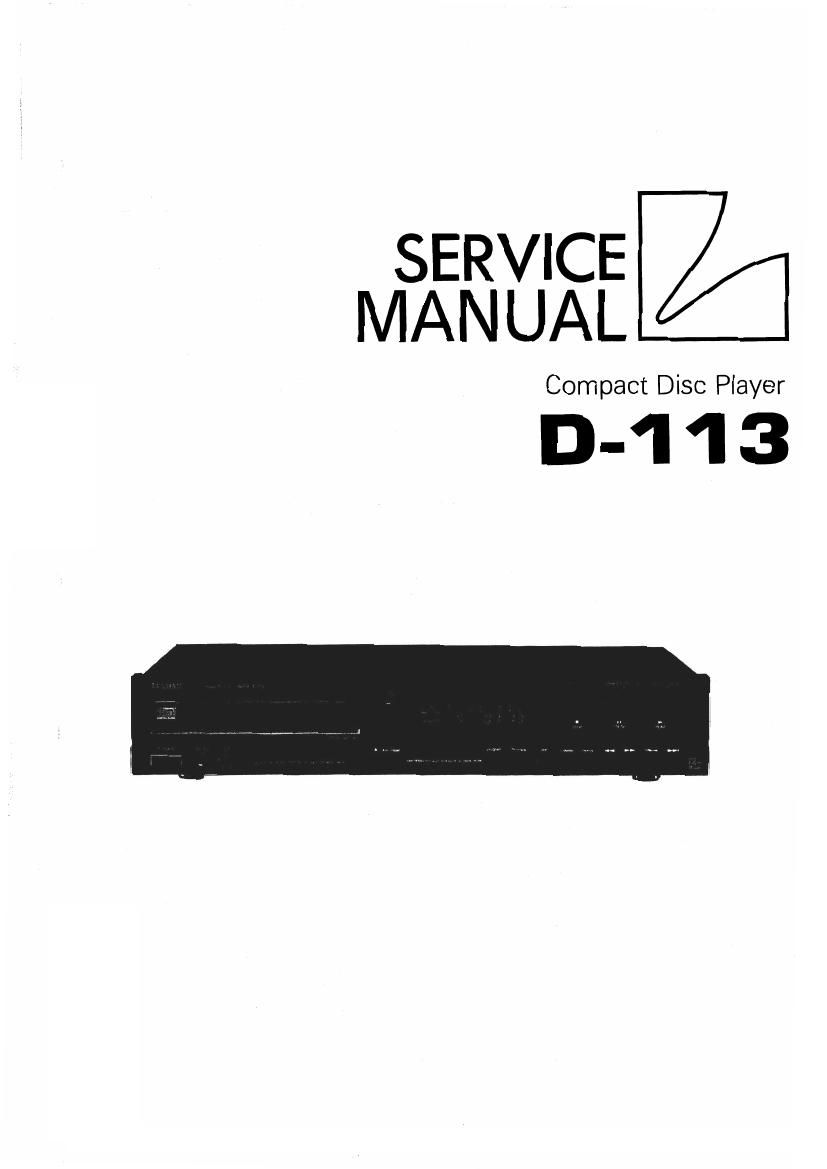

SERVICE 2:]
MANUAL

Compact Disc Player

D-113

Page 2

D-113

Contents

SDeCiiiCaiiDns ..................................................................................................... 2
Parts Locations and Disassembly instructions -------------------------------------------------------------- 3 to 4
Adjustment Procedures ------------- 4 to 5

Adjustment Locations

Block Diagram -----------------
Parts Layout on P. C. Boards and Wiring Diagram (1/2) (U2. U0 Model only) ----------------------------- 9 to 11
Parts Layout on P. C. Boards and Wiring Diagram (2/2) (AD Model only) -------------------------------- 12 to 14
Schematic Diagram ------------- -- 15 to 17
Electrical Parts» List -------- 18 to 21
Packing Assembly Parts List ~~~~~~~~ 22
Packing Method View ............................................................................................ 22
CabinEt Assembly Parts List ..................................................................................... 23
Exploded View (Cabinet) ................................................................................ 24 to 25
Exploded View (CD Mechanism) .......................................................................... 26 [O 27
CD Mechanism Assembly Parts List --------- 28
Semi-Conductor Lead Identifications ~ 29 to 33
. . .
SpeCIflcatIons
CD SECTION
System ---------------------------- Optical (Compact Disc System)
Quantizing Bit Number ------------------------------------- 16 Bit Linear System
Channe[s .1 ................................................ 2 channel, Stereo
Pickup ---------------------------- Semiconductor Laser Pickup
Output Voltage .............................. ZVildB
Frequency Response 20Hz~20kHz-2dB
T.HiD <1kHz) H ------ -0.01%
S/N ------------ -- 85dB
Dynamic Range ----- -- 83dB
Separation (1kHz) ........ 75dB
Head Phone Output Voltage (1kHz, ZOdB/BO ohm) ------------------------------- 200mV:1dB
Power Supply --------------------------------------------------------- AC120/220/240V, 50H: (AD Model Only)
AC120V. 6OHZ (U2. U0 Model Only)
Power Consumption ----------------------- 12W
Semiconductors ------------------ 14 IC'54 21 Transistors
28 Diodes. 1 Zener Diodes
Dimension (W X H x D) .................................................................... 438 X 85 X 314mm
Weight ............................................................................................................ 4.3kg
COMPACT DISC
TlECk Pitch .................................................................................................... 1_6 U m
Modulation Frequency ----------------------------- 44.1kHz
Transfer Rate ------------------------- 4.3218M bit/sec
Dimensions ............................................................................................. 120 X 1.2mm

NOTE : Due to continuing product improvement, specifications and designs are subject to change without notice.
UZ : For North American model only
U0 : For Canadian model only
AD : For West Germany model only

Others : Common
