Page 1

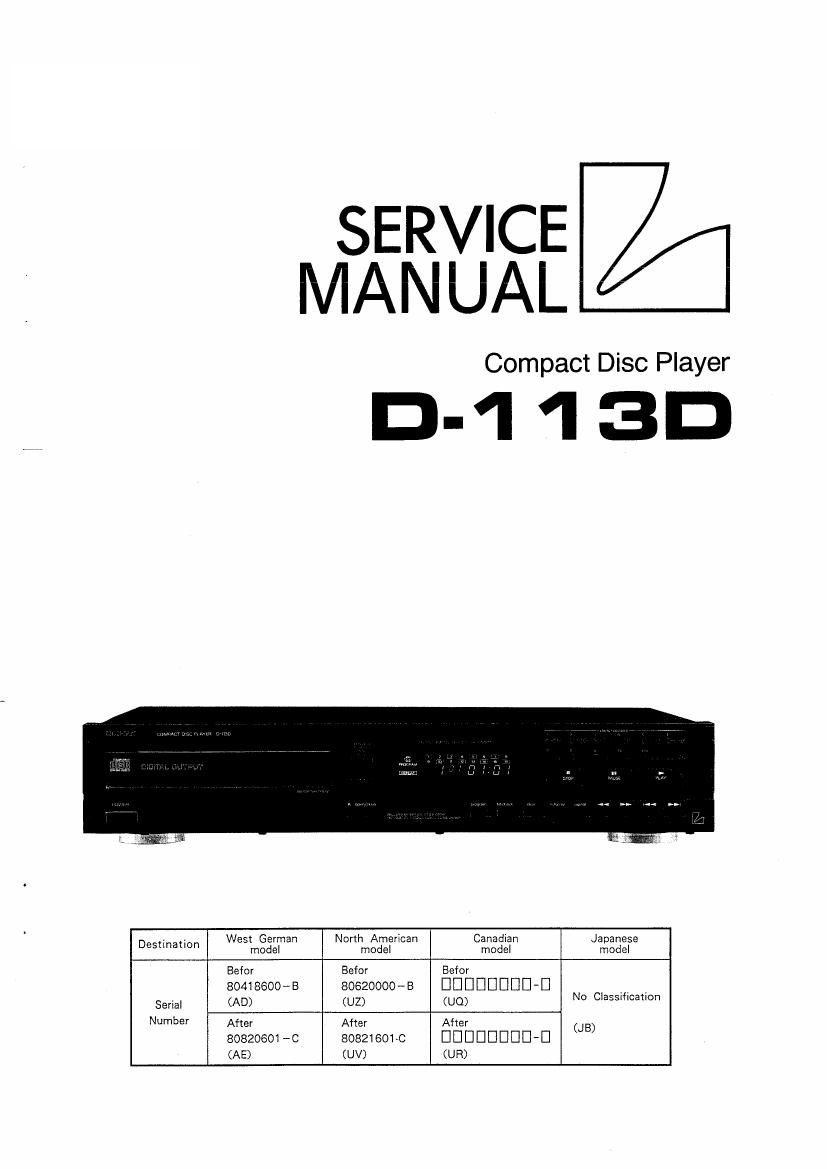

SERVICE
MANUAL
Compact Disc Player
D-1 1 3D
» - West German North American Canadian Japanese
Destination model model model mocel
Befor Befor Befor
804186008 80620000-8 DDDUDUDD-U .. _
Serial (AD) (U2) (U0) No Classmcatlon
Number After After After (JB)
80820807 -c 808216014: DDDDDUDD-U
(AE) (UV) (UR)
Page 2
D-1 13D
Contents
Specification .................................................................................................. . . . . . 2
Contro|s & SwitcheS Front Panel . ... ................................................................... 3 to 4
Jacks & Terminals Rear Panel
Operation Guidelines -------------
Disassembly Instructions ................................................................................... 8 0 13
(Cabinet Section> ............................................................................................ 8
Adjustment Procedures ~~~~~~~~
Adjustment Locations ..............................................
Block Diagram .......................................................................... . ......................... 17
Packing Assembly Parts List --
Packing Method View -------
Schematic Diagram .............................................................. .d......-.-19 0 21
Parts Layout on P. C. Boards and Wiring Diagram ------------------------------------------------------ 22 to 24
Electrical Parts List ---------- 25 to 27
Cabinet Assembly Parts List ----- 28
Exploded View (Cabinet) ------------------ 29 to 30
Exploded View (CD Mechanism) .......................................................................... 31 to 32
CD Mechanism Assembly Parts List ................................. ............................. 33
Semiconductor Lead Identification .................................... ............................ 34 to 37
. .
Specuficatlons
CD SECTION
System ............................................................................... Optical (Compact Disc System)
Quantizing Bit Number , ------------------ 18 Bit Linear System
Channels ...................................... 2 Channel Stereo
Pick-up -------------------------- Semiconductor Laser Pickup
Digital Output Voltage -- ---------------------- 0.5Vp-p/75 ohm
Frequency Response ,. ------------ 20~20kHz +1dB, -2dB
T.H.D (1kHz) ------------ 0.001%
S/ N Ratio BSdB
Dynamic Range 83dB
Separation (lkl-lz) 75dB
Power Supply -------------------------------- AC120/220/240V, SOHZ (AD model only)
AC12OV, (3on (U2, U0 model only)
AClOOV, 50/60HZ (JB model only)
Power Consumotion ..12w
Semiconductors -------------------------------------------------------- 12 lCs, 17 Transistors
23 Diodes, 1 Zener Diodes
Dimensions (W X H X D) .................................................................. 438 X 85 X 314mm
Weight ........................................................................................................... 4.4kg
COMPACT DISC
Track Pitch -------------
Modulation Frequency --------- 44.1kHz
Transfer Rate ----------------------- 4.3218M Bit/Sec
Dimension ---------------------------------- 120 X 1,2mm (AD/UZ/UO models only)
80 X l.2mm (JB/AE/UV/UR models only)
NOTE: Due to continuing product improvement. specifications and design are subject to change without notice.
