Luxman D 105 Service Manual
This is the 64 pages manual for Luxman D 105 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Luxman D 105 Service Manual (Ocr-read)
Page 1

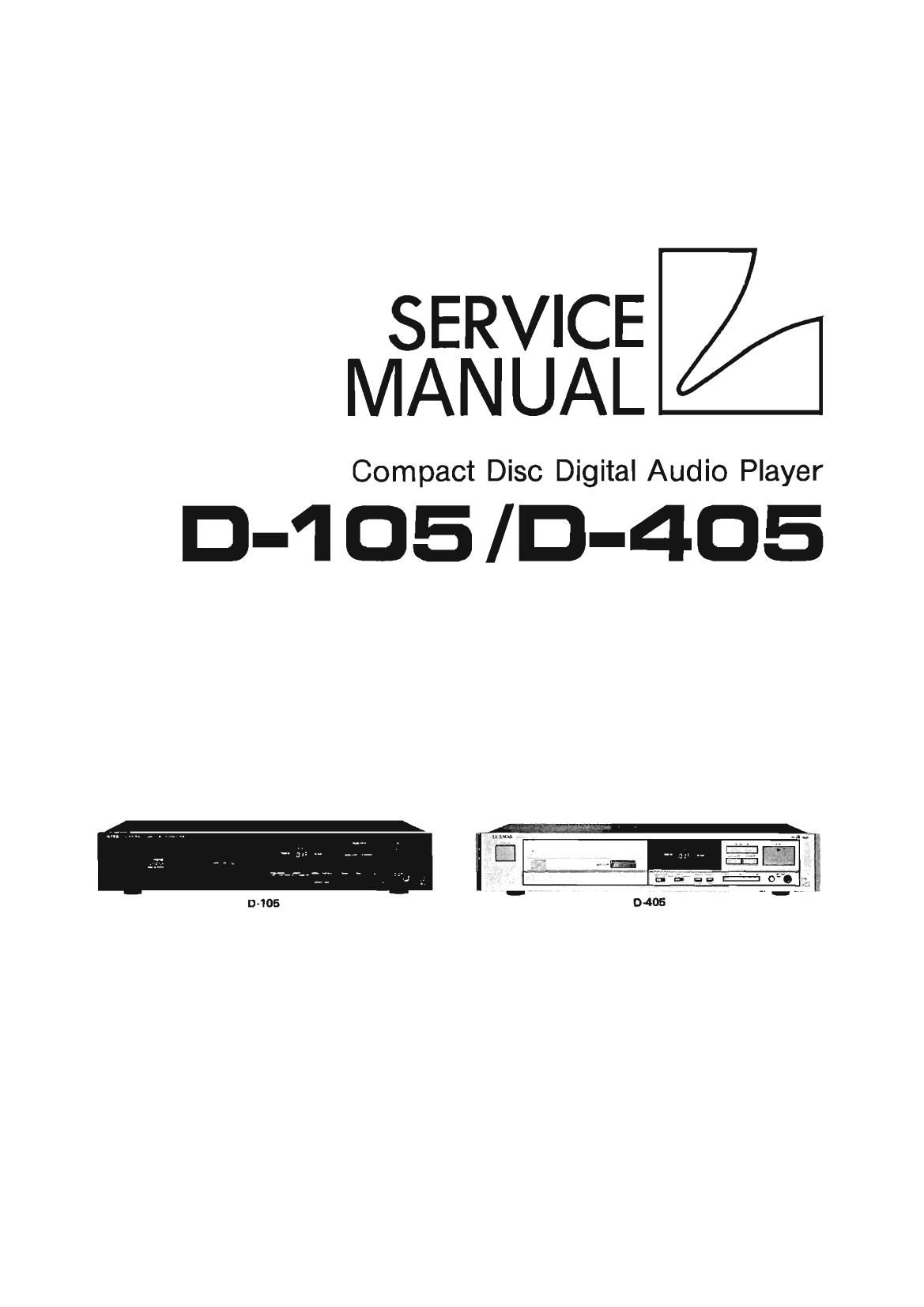

SERVICE h
MANUAL
Compact Disc Digital Audio Player
D-1 05 lD-405
Page 2
D-105/
0-405
Co ntents
Specifications ................................................................... 2
Parts Locations and Disassembly Instructions ........................................... 3 to 9
Cautions on Replacement of Pick-up ............................................... 10 to 11
Block Diagram ................................................................. 12
Adjustment Locations ............................................................ 13
Adjustment Procedures ........................................................ 14 to 47
Semi-conductor Load Identifications ................................................... 48
Parts Layout on PC. Boards .................................................... 49 to 50
Wiring Diagram ............................................................. 51 to 52
Schematic Diagram .......................................................... 53 to 54
Electrical Parts List .......................................................... 55 to 58
Exploded View (Cabinet)-D-105-D405 ............................................ 59 to 60
Cabinet Parts List ............................................................... 61
Exploded View (Cassette Deck) . i .................................................... 62
Mechanism Parts List ......................................................... 63 to 64
Packing Method View ............................................................. 65
Packing Assembly Parts List ........................................................ 66
SpeCIfIcatlons
Type .................................................... Compact Disc player with optical pickup
Quantization ................................................................. 16 bit linear
Channels ...................................................................... 2 (stereo)
Frequency response ..................................................... 5 Hz - 20 kHz 20.5 dB
Dynamic range ................................................................. Over 90 dB
Total harmonic distortion ....................................................... 0.003% (1 kHz)
Channel separation .............................................................. Over 90 dB
Wow and flutter ......................................... . .................... Unmeasurable
Output ....................................................................... 2.0 volts
Pickup ............................................................. Semiconductor laser type
Track location ...................................................... By track and index number
Power supply .......................................................... AC 220v, 50 H2 (AK)
AC 120V, 60 Hz (UZ, UCi
AC 100V, 50/60 Hz (AJ)
Power consumption ............................................................... 16 watts
Dimensions ...................................................... 453(W) x 84(Hi x 313(D) mm
Weight .......................................................................... 6.0 kg
Specifications are subject to change without notice.
