Luxman D 102 Service Manual

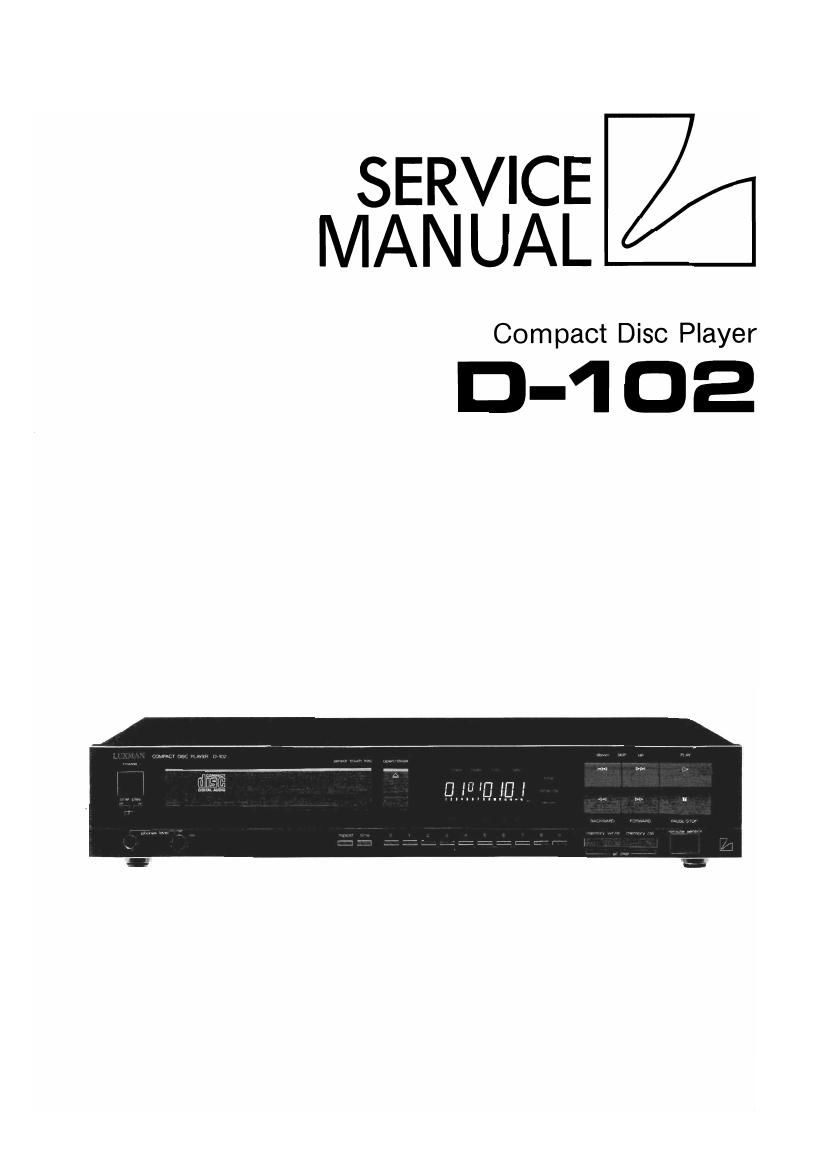

Page 1

SERVICE ; :1
MANUAL

D-1 (38126r

Page 2

D-102

Contents
Specifications .................................................................. 2
Before Use ..................................................................... 2
Parts Locations and Disassembly Instructions ........................................... 3 to 5
Adjustment Locations ............................................................. 6
Adjustment Procedures ......................................................... 6 to 7
Block Diagram .................................................................. 8
Schematic Diagram .......................................................... 9 to 11
Parts Layout on PC. Boards and Wiring Diagram ....................................... 12 to 14
Electrical Parts List ......................................................... 15 to 19
Cabinet Assembly Parts List ....................................................... 20
Exploded View (Cabinet) ...................................................... 21 to 22
Exploded View (Mechanism). . . . . 23 to 24
Mechanism Assembly Parts List ...................................................... 25
Packing Assembly Parts List ........................................................ 26
Packing Method View ............................................................. 26
SemivConductor Lead Identifications , . .......................................... 27 to 31
. . .
Specrflcatlons
Type ............ . . Compact Disc player with optical pickup
Quantization .............................................................. 16 bit linear
Channels ............................................................ 2 channels (Stereo)
Frequency Response ................................................. 20 Hz - 20 kHz :05 dB
Dynamic Range .............................................................. Over 90 dB
Total Harmonic Distortion ................................................... 0.005% (1 kHz)
Channel Separation ........................................................... Over 36 dB
Wow and Flutter ........................................................... Unmeasurable
Output ..................................................................... 2 Volts
Pickup .............................................................. Semiconductor laser
Track Search ........................................................... By track number
Power Supply ....................................................... 120V, 60 H2 (UC/UO)
220V, 50 Hz (EK)
Power Consumption ............................................................ 14 Watts
Dimensions ................................................... 438(W) x 82(H) x 309(0) mm
Weight ....................................................................... 4.4 kg
Accessories .................................................. Connection cables (Pin plugs) x 1

Remote control unit x 1
AC Cord x1(EK)

Due to product improvement, designs and specifications are subject to change.

Before Use

Trunsporl Lock

1. Remove two transport screws (Red) (Turn 5 or 6
rounds.) until they are fully released (The screws can
not be taken away out).

2. Release the transport lock by turning counterclock»
wise until it stops. (It turn half a turn.)

Note: When transporting the unit, take a disc away
and close the disc tray by pressing the Open/
Close button. Turn the Power off and fasten
with transport screws and lock.

When transfer screws and lock are fastened, normai
operations are not available.

Trmspori screw
