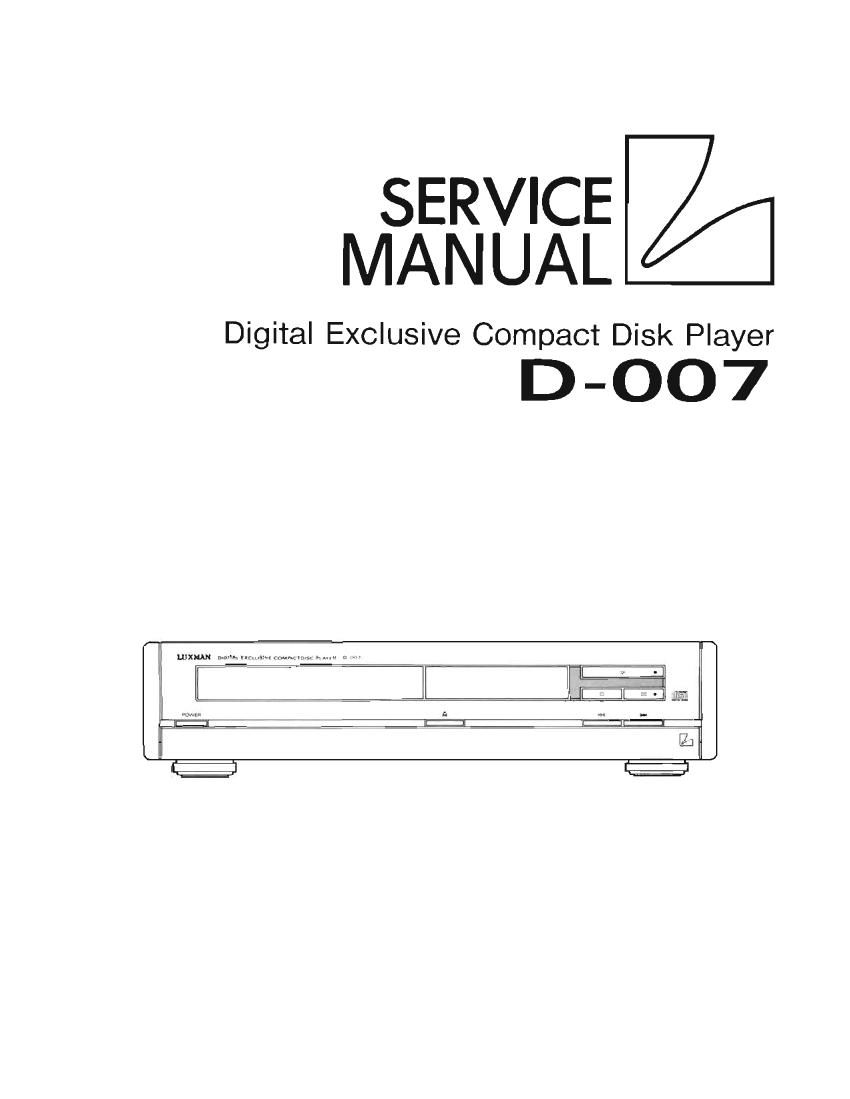

Luxman D 007 Service Manual
This is the 32 pages manual for Luxman D 007 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Luxman D 007 Service Manual (Ocr-read)
Page 2
Contents
Specifications ............................................................................................................................................. 2
Controls. Switches, Jacks & Terminals .............................................
Operation Guidelines ......
Care 8. Maintenance
Disassembly Instructions ,
Adjustment Procedures ....................
Adjustment Locations ......................
Block Diagram ..................................
Schematic Diagram .........................................................................
Parts Layout on PC. Boards and Wiring Diagram ...........................
Electrical Parts List ....................................
Cabinet Assembly Parts List ......................
Exploded View (Cabinet) ............................
Exploded View (Deck) ........
Mechanism Assembly Parts List .................
Packing Assembly Parts List ......................
Packing Method View ................................
Semi-Conductor Lead Identifications ..........
Specifications
System Optical (Compact Disc System)
Quantization .................................. 16 bit linear
Channels ...................................... 2 (stereo)
Wow and tlutter ..... Unmeasurable
Digital Output Level (Opt) ............................................... -21 ~ -15 dBm
Pickup ............................................................. Semiconductor laser type
Track location .................................................................................... By track
Power supply ................................................. AD, AG: AC120/220/240V, 50 Hz
UZ: AC120V, 60 Hz
JA: ACtOOV, 50/60 Hz
Power consumption ...................................................................................................................... UZ: 14 watts
AD, AG, JA: 11 watts
Dimensions ................................................ 360 (W) X 90 (H) X 352 (0) mm
Weight ............... 4.1 kg
