Luxman 5 m 21 owners manual
This is the 19 pages manual for luxman 5 m 21 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from luxman 5 m 21 owners manual (Ocr-read)

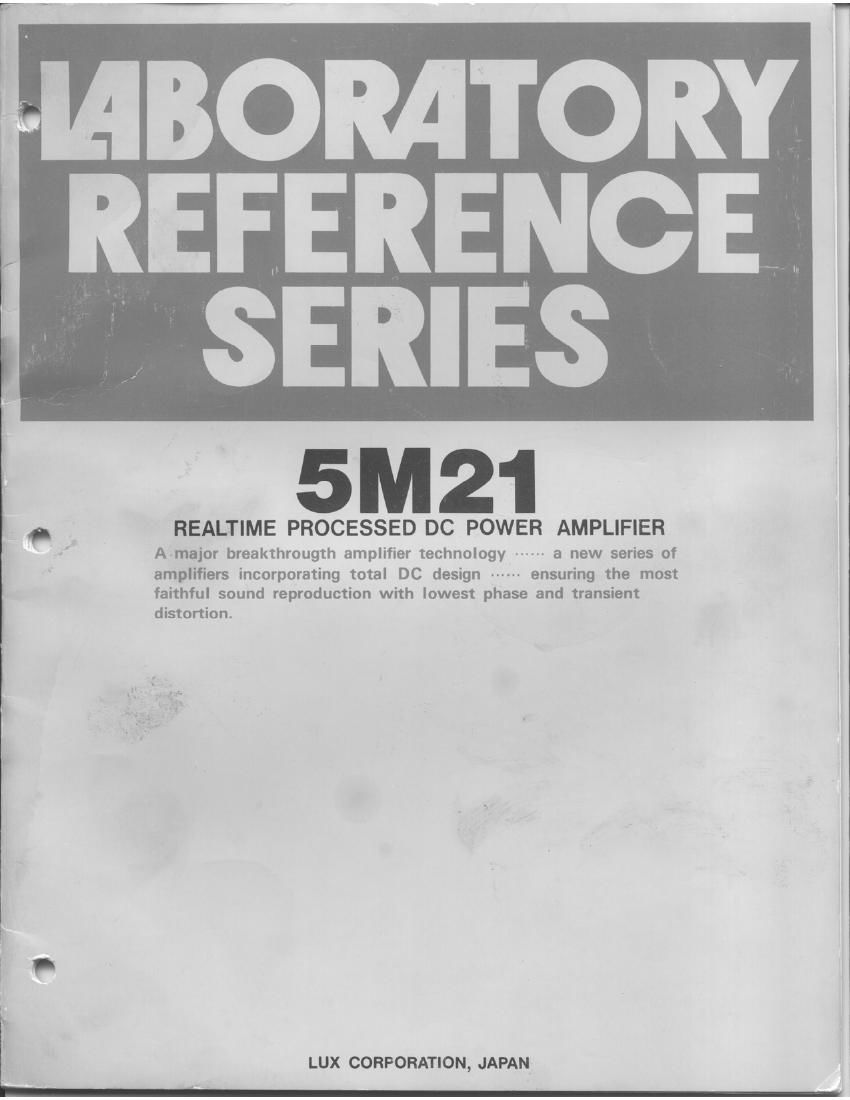

Page 1
MBOMTORY
REFERENCE I,
+ 1 SERIES
5M21
g REALTIME PROCESSED DC POWER AMPLIFIER
A-major breakthrougth amplifier technology ------ a new series of
amplifiers incorporating total DC design AAAAAA ensuring the most
faithful sound reproduction with lowest phase and transient
distortion.
r
'-
LUX CORPORATION, JAPAN
Page 2
- CONTENTS -
OSWITCHES & TERMINALS ----------------- 2
OCONNECTION PROCEDURE --------------- 6
OABOUT POWER OUTPUT ----------------- 8
OOPERATION PROCEDURE ------------------ 9
OPROTECTIVE CIRCUITS ---------------------- 10
.BLOCK DIAGRAM ............................. 12
oSTANDARD CURVES .................... 13
OSPECIFICATIONS ............................... 15
RNING- TO PREVENT FIRE 0R SHOCK HAZARD
WA I DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
