luxman 5 e 24 service manual

Extracted text from luxman 5 e 24 service manual (Ocr-read)

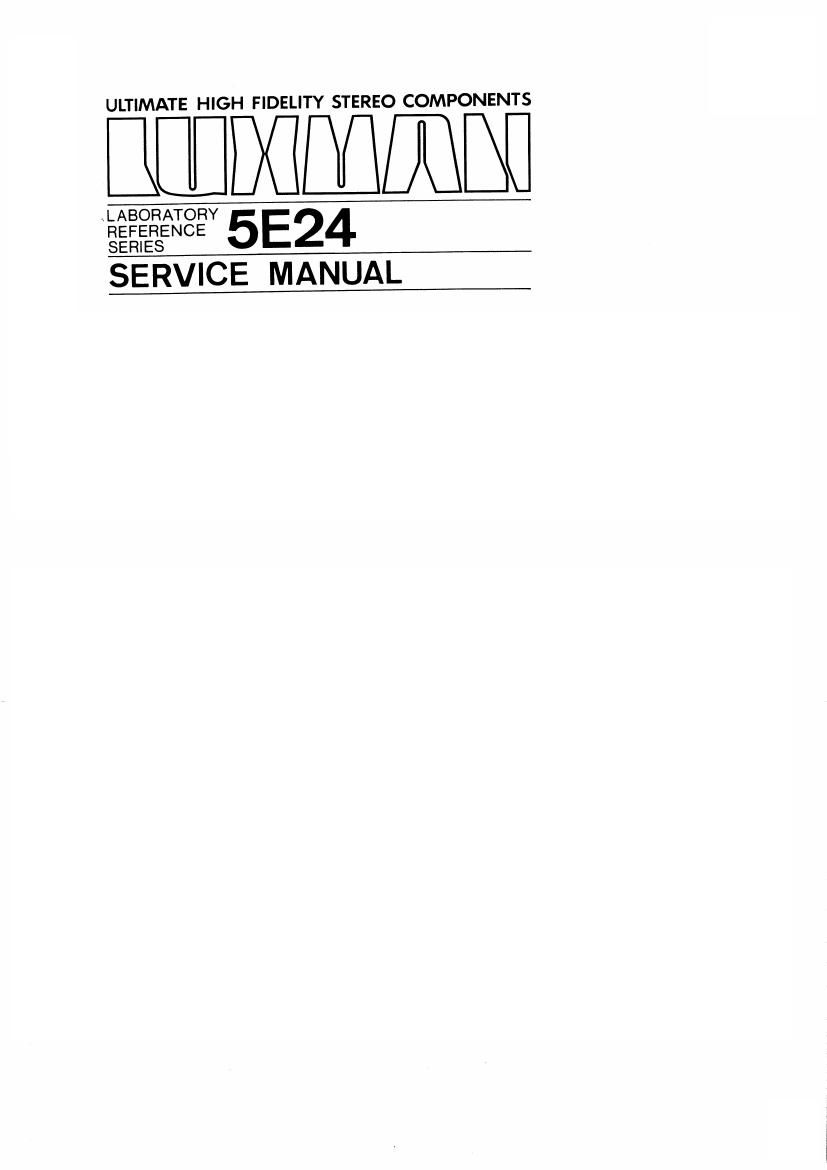

Page 1

ULTIMATE HIGH FIDELITY STEREO COMPONENTS

III [HINDI]

.VLABOFIATORY
5E24
SERIES

SERVICE MANUAL

Page 2

1 1
o
g
e:
L
1. UW1073 Spacer 11. AL0041 Lamp 12V 7SmA
2. UW1072 Spacer 12. WJ1073 Mould Knob
3. UG1001 Bonnet 13. TDOO96 LED SLCZSUR (RED)
4. WC1029 Side Mould Plate 14. PT2113 Power Transformer
5. WNlOlO Leg PT2114 Power Transformer
6. UE1089 Bottom Plate PT2123 Power Transformer
7. W01063 Escutcheon PT2124 Power Transformer
8. WA1078 Front Panel 15. SP0037 Push Sw.(power) 10A
9. WK1091 Metal Knob 16. SP0062 Multi Sw.
10. WJ1076 Mould Knob 17. SP0090 Push Sw. (Peak Hold)

Level Adjust

Set the Sw201 (input selector switch) to the OdBV position. Connect an oscillator to
the LOW LEVEL INPUT jack of the SE24 and apply 1V r.m.s. sine-wave. »

Adjust VRlOla (L-ch) and VRlOlb (R-ch) so that the two L.E.D.s D1063 (L-ch) and D106b
(R-ch), which indicate OdB position of the meter, may light up.
