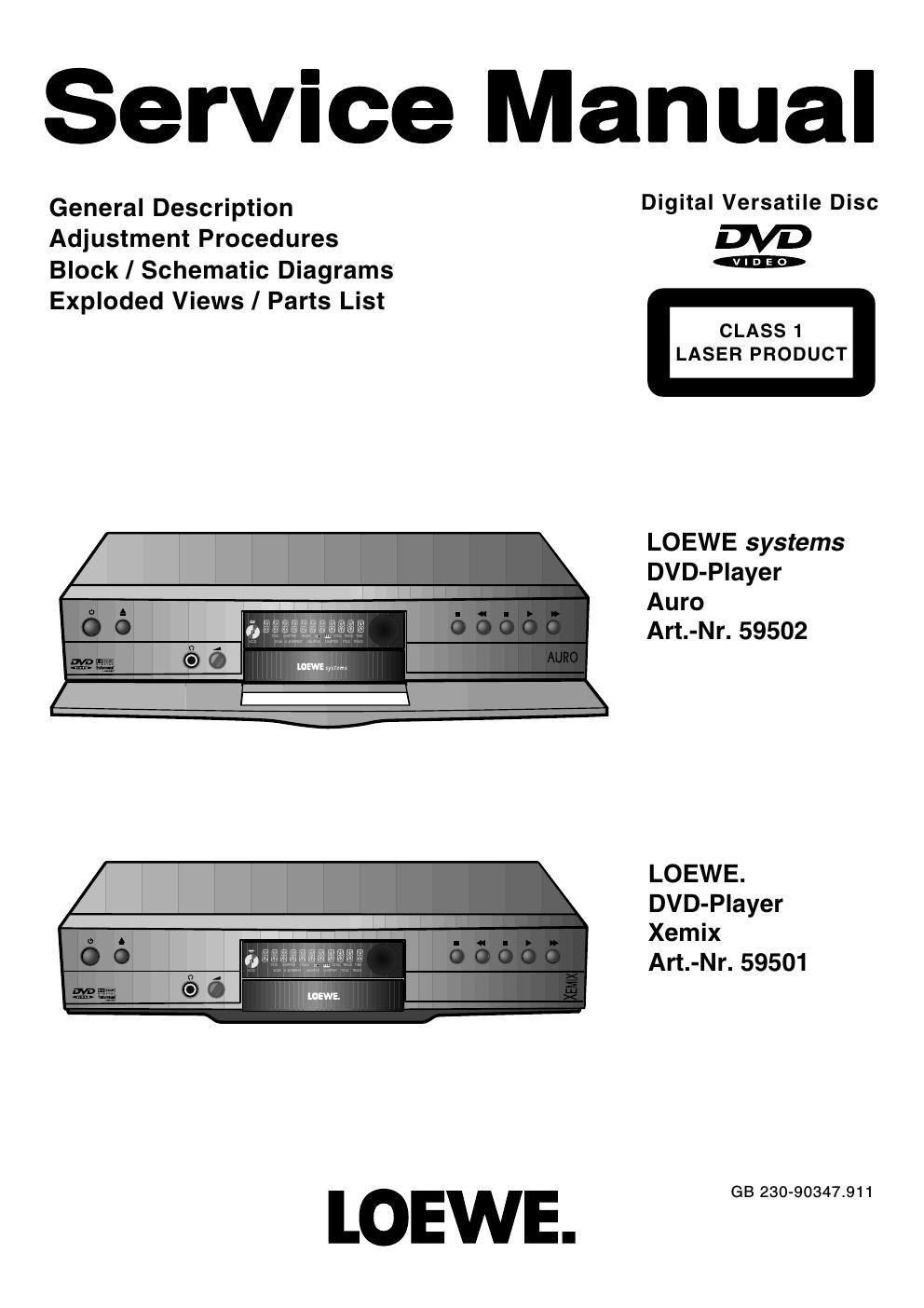

Loewe xemix 59501 service manual
This is the 55 pages manual for loewe xemix 59501 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from loewe xemix 59501 service manual (Ocr-read)
Page 1
Technical specifications GB 2 59502 & 59501 1. 1. Technical specifications 1.1 General: Mains voltage : 230V (196 - 263V AC) Mains frequency : 50 Hz -60Hz Power consumption : 20W Power consumption standby : <10W (≤ 5W for low power standby; without P50) 1.2 Audio performance Test equipment : Audio Precision Testdiscs : CDDA: Philips audio signal testdisc 1 : VCD: Philips A/V testdisc & ABEX A/V testdisc : DVD: Philips LVP09.00 audio testdisc 1.3 Line output 1.3.1 'Normal' mode (stereo) Output voltage : 2 channel mode : 2Vrms +/- 1.5dB 5.1 channel Dolby : 1.41 +/- 1.5 dB Channel unbalance (1kHz) : <0.85dB Crosstalk : 1kHz : >105dB 20Hz-20kHz : > 95dB Frequency response : 20Hz- 12kHz : +/- 0.1dB max Signal to noise ratio : >100 dB Dynamic range : 1kHz : >90dB 20Hz-20kHz : >88dB Distortion and noise : 1kHz : >90dB 20Hz-20kHz : >80dB Intermodulation distortion : >87dB Phase non linearity : +/- 1° max. Level non linearity : +/- 0.5dB max. Mute (spin-up, pause, access) : >100dB Outband attenuation : > 50dB above 25kHz 1.3.2 'Center on' mode (mono) Output voltage : 2Vrms typ Channel unbalance (1kHz : <0.85dB Crosstalk: : mono Frequency response(20Hz- 12kHz) : 0.1dB max Signal to noise ratio : >85 dB Dynamic range 20Hz-20kHz : >85 dB Distortion and noise 20Hz-20kHz : >80 dB Intermodulation distortion : >87 dB Phase non linearity : not applicable Level non linearity : +/- 1 dB Mute (spin-up, pause, access) : >100dB Outband attenuation : > 50dB above 25kHz Centerdelay adjusting : 0-5 msec (steps 1 msec) 1.4 6-channel output 1.4.1 Front Line out(channel 1 and 2) fully according to PQR class III Output voltage : channel mode : 1.41Vrms +/- 1.5dB 5.1 channel Dolby : 1.41V +/- 1.5 dB Channel unbalance (1kHz) : <0.85dB Crosstalk : 1kHz : >105dB 20Hz-20kHz : > 95dB Frequency response 20Hz- 12kHz : +/- 0.1dB max Signal to noise ratio : >100 dB Dynamic range : 1kHz : >90dB 20Hz-20kHz : >88dB Distortion and noise : 1kHz : >90dB 20Hz-20kHz : >80dB Intermodulation distortion : >87dB Phase non linearity : +/- 1° max. Level non linearity : +/- 0.5dB max. Mute (spin-up, pause, access) : >100dB Outband attenuation : > 50dB above 25kHz 1.4.2 Surround channels (channel 3,4,5 and 6) Surround channels are according to dolby group C products (*1) Testequipment: audio precision (*2) LFE + Center + Rear line out Output voltage : 2 channel mode : muted 5.1 channel Dolby : 1.41Vrms +/-1.5dB : Adjustable 0.7V-2.82 V : (+/- 6dB to front channels) Channel unbalance : <0.85 dB Signal to noise ratio : >100 dB (A-weighted) Dynamic range : >85 dB Distortion and noise : >80 dB (90 typical) Crosstalk: : >95 dB (*3) *1 : referenced to dolby digital licensee information manual version 2.0 *2 : measured in normal mode and with balance control neutral *3 : crosstalk from channels 1,3,5(channel 1 is ref) to 2,4,6(measured channels) 1.5 Headphone output According PQR1 IMS 30mW at 32 Ohm load. Headphone impedance: 8-2000 Ohm 1.6 Video performance VCD testdisc : Philips A/V disc & ABEX A/V disc
Page 2
Technical specifications GB 3 59502 & 59501 1. DVD testdisc : Philips MPTD PAL CVP0213 / Philips LVP10.00 video testdisc 1.6.1 CVBS Fully according PQR3 IMS Video output : 1Vpp(0.1V into 75 Ohm) 1.6.2 S-video (Y/C) Fully according PQR3 IMS 1-GND 2-GND 3 - Y 1Vpp +/- 0.1V into 75 Ohm 4 - C burst 300mVpp +1/-4dB into 75 Ohm Aspect ratio switching by DC on C(pin4). Connector type : 4 pin mini- DIN 1.7 Scart Fully according PQR3 IMS Connector implementation according EN50049-1; color = black; dual SCART Fully according to prEN1057-2-1 Signal switching is P50 controlled; supported features of mode 3 see survey of applicable standards. 1.7.1 SCART II (connected to TV) Pin signals: 1 - Audio R 1.8V RMS 2 - Audio R 3 - Audio L 1.8V RMS 4 - Audio GND 5 - Blue/Chroma GND 6 - Audio L 7 - Blue out/ Chroma in 0.7Vpp +/- 0.1V into 75 Ohm (*) 8 - Function switch <2V = TV >4.5V / <7V = asp. ratio 16:9 DVD >9.5V / <12V = asp. ratio 4:3 DVD 9 - Green GND 10- Nc 11- Green 0.7Vpp +/- 0.1V into 75 Ohm (*) 12- Nc 13- Red/Chroma GND 14- Fast switch GND 15- Red out/ Chroma out 0.7Vpp +/- 0.1V into 75 Ohm (*) +/- 3dB 0.3Vpp in case of Chroma 16- Fast switch RGB/ CVBS or Y <0.4V into 75 Ohm = CVBS >1V / <3V into 75 Ohm = RGB 17- Y/CVBS GND 18- Fast switching GND 19- CVBS/Y/RGB sync 1Vpp +/- 0.1V into 75 Ohm (*) 20- CVBS/Y 21- Shield 1.7.2 SCART I (connected to AUX) Pin signals: 1 - Audio R 1.8V RMS 2 - Audio R 3 - Audio L 1.8V RMS 4 - Audio GND 5 - Blue/Chroma GND 6 - Audio L 7 - Blue in/ Chroma out +/- 3dB 0.3vpp Chroma (burst) 8 - Function switch 9 - Green GND 10- P50 Control 11- Green 12- Nc 13- Red/Chroma GND 14- Fast switch GND 15- Red in/ Chroma in 16- Fast switch RGB/ CVBS or Y 17- CVBS GND 18- Fast switching GND 19- CVBS/Y/RGB sync 1Vpp +/- 0.1V into 75 Ohm (*) 20- CVBS/Y 21- Shield (*) for 100% white 1.8 Digital output 1.8.1 Coaxial CDDA/ LPCM (incl MPEG1) : According IEC958 MPEG2, AC3 audio : According IEC1937 Remark: DTS audio output mode is only available on digital out 1.8.2 Optical Identical to coaxial 1.9 Dimensions and weight Place and height of feet : acc. to Loewe Harmonisation line Apparatus tray closed : WxDxH: 435 x 315x 75/88 Apparatus tray open : WxDxH: 435 x 442 x 75/88 Weight without packaging : ca. 4 Kg Weight in packaging : ca. 6 Kg 1.10 Laser output power & wavelength 1.10.1 DVD Output power : 7mW Wavelength : 650nm 1.10.2 CD Output power : 10mW Wavelength : 785nm
