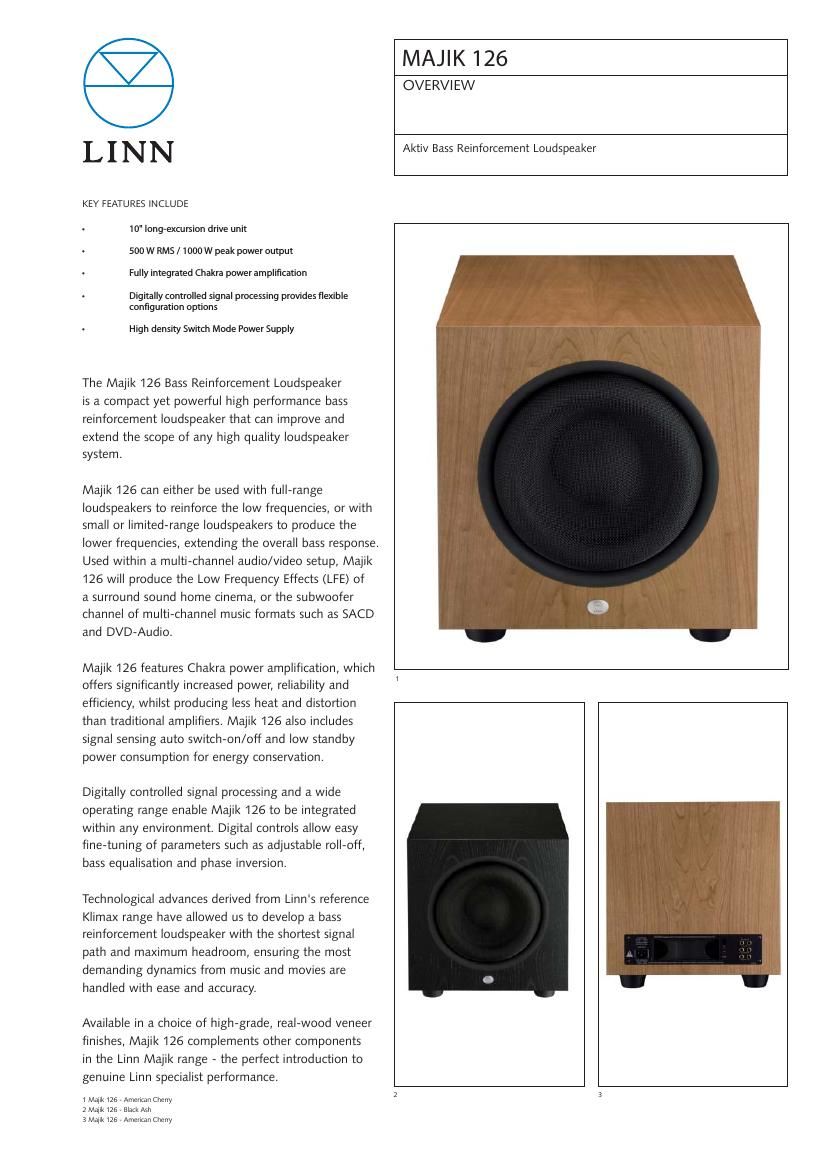

Page 1

MAJIK 126 TECHNICAL SPECIFICATIONS Bass Reinforcement Loudspeaker Introduced February 2009 Type Pitch-accurate bass reinforcement loudspeaker with integral active amplifi cation and equalisation circuitry Drive unit 10 inch (254 mm), paper coned, long throw, high motor force, bass driver Output Power 500 W RMS, 1000 W PEAK Operating volume 25 litres Internal Frequency Response Adjustable roll-off from 55 Hz - 130 Hz in 3 steps and fl at (to allow external low pass fi ltering). Default is 55 Hz High Pass Filtered Output Frequency Response Adjustable from 10 Hz - 235 Hz in 9 steps. Default is 10 Hz. Audio Connections Line level audio input RCA phono (A IN) Line level audio loop out RCA phono (AL OUT ) Line level high pass output RCA phono (HP OUT ) Line Input Impedance 18 k Ω Parameter Adjustment - 4 step internal low pass frequency @ 55, 85, 130 Hz and fl at - 6 step internal high pass frequency from 18 Hz - 40 Hz - 9 step external high pass frequency from 10 Hz - 235 Hz - Gain adjustable 34 dB in 1 dB steps (-15 to +19 dB) - 3 step Bass equalisation - 4 step Time out (standby time after signal end), including 'Always On' - Phase inversion (normal/inverted) Magnetic shielding Yes Protection Fully protected against overload, temperature, full short circuit and overdrive Mains Input voltage (auto-sensing)100 - 120 V 220 - 240 V Mains Supply Frequency 50 - 60 Hz Standy Power Consumption 9 W Dimensions H 391 mm (including feet) x W 360 mm x D 381 mm H 15.4 inches (including feet) x W 15 inches x D 14.1 inches Weight 19 kg / 41 lbs 14 oz Standard fi nishes American Cherry, Black Ash, Maple, White Linn Products Limited Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK. Telephone: +44 (0) 141 307 7777, Facsimile: +44 (0) 141 644 4262, Helpline: 0500 888909, E-mail: helpline@linn.co.uk, Website: www.linn.co.uk Linn Records Limited Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK. Telephone : +44 (0) 141 303 5027, Facsimile : +44 (0) 141 303 5007, Helpline/Mail order: +44 (0) 141 303 5029, E-mail : records@linn.co.uk, Website: www.linnrecords.com Copyright © 2009, Linn Products Limited. All rights reserved. Linn, the Linn logo and all other Linn product names and slogans are trade marks or registered trade marks of Linn Products Limited, registered in at least the UK and/or the EU. Linn Products Limited disclaims any proprietary interest in trade marks and trade names other than its own. 02/09
