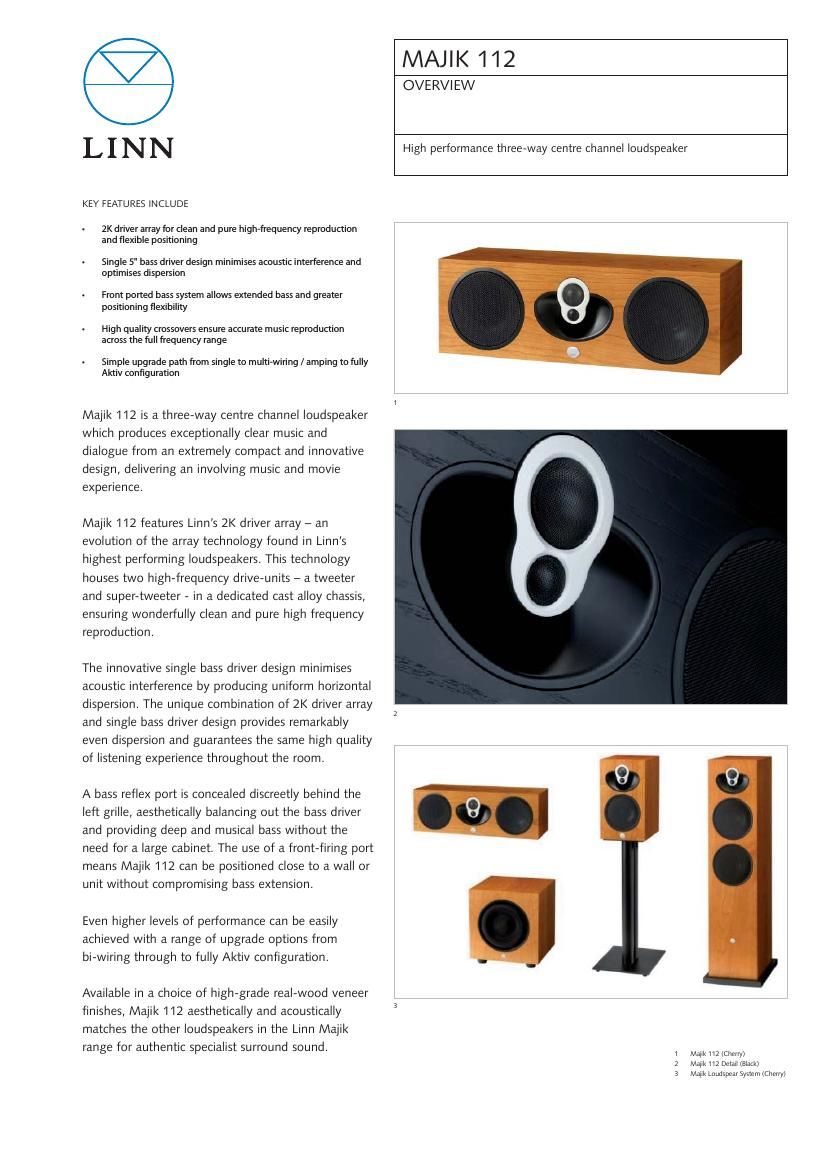

Linn Majik 112 Brochure

Page 1

MAJIK 112 TECHNICAL SPECIFICATIONS High performance three-way centre channel loudspeaker - Date of introduction August 2009 - Type 3-way centre channel loudspeaker - Dimensions (H) 169 mm x (W) 510 mm x (D) 176 mm (H) 6.65 inches x (W) 20.08 inches x (D) 6.93 inches - Weight 6.51 kg / 14.34 lb - Cabinet Volume 9 litres - Impedance (passive) 4 Ω - Impedance (Aktiv bass/mid) 7 Ω - Impedance (Aktiv tweeter) 7 Ω - Impedance (Aktiv super-tweeter) 7 Ω - Efficiency 88 dB for 1 watt at 1 metre (1 kHz) - Frequency response (passive) 72 Hz - 20 kHz + - Frequency response (Aktiv) 65 Hz - 20 kHz + - Crossover options Fully passive or fully Aktiv - Connection options Up to three-way multi-wire/amp passive; three-way Aktiv. 4mm banana plugs or spades - Finishes Cherry, Maple, Black Ash, White The above information is subject to change without prior notice. Linn Products Limited Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK. Telephone: +44 (0) 141 307 7777, Facsimile: +44 (0) 141 644 4262, Helpline: 0500 888909, E-mail: helpline@linn.co.uk, Website: www.linn.co.uk Linn Records Limited Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK. Telephone : +44 (0) 141 303 5027, Facsimile : +44 (0) 141 303 5007, Helpline/Mail order: +44 (0) 141 303 5029, E-mail : records@linn.co.uk, Website: www.linnrecords.com Copyright © 2009, Linn Products Limited. All rights reserved. Linn, the Linn logo and all other Linn product names and slogans are trade marks or registered trade marks of Linn Products Limited, registered in at least the UK and/or the EU. Linn Products Limited disclaims any proprietary interest in trade marks and trade names other than its own. 08/09
