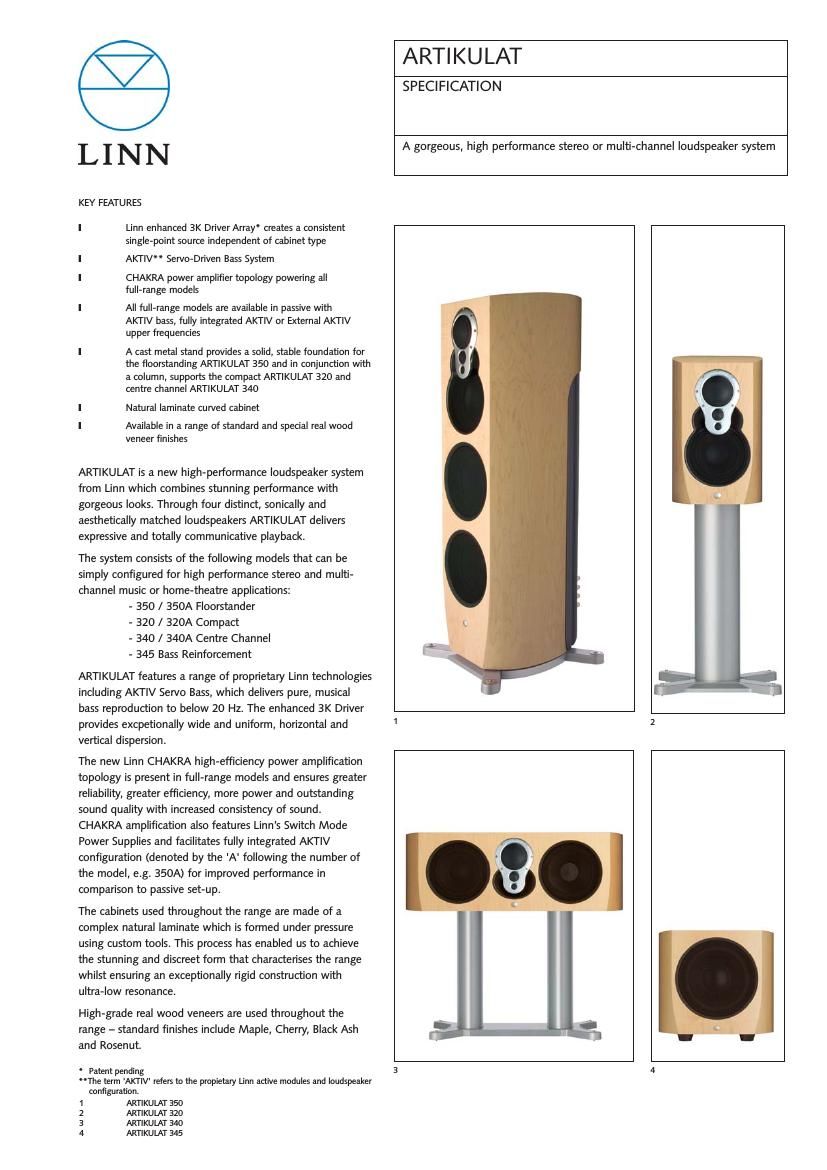

Linn Artikulat Brochure

Page 1

Linn Products Ltd Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK. Telephone: +44 (0) 141 307 7777, Facsimile: +44 (0) 141 644 4262, Helpline: 0500 888909, E-mail: helpline@linn.co.uk, Website: www.linn.co.uk Linn Products Inc 8787 Perimeter Park Boulevard, Jacksonville FL 32216, USA. Telephone: +1 (904) 645 5242, Facsimile: +1 (904) 645 7275, Helpline: 888-671-LINN, E-mail: helpline@linninc.com, Website: www.linninc.com Linn Deutschland GmbH Hühnerposten 1d, 20097 Hamburg, Deutschland. Telephone: +49 (0) 40 890 660 0, Facsimile: +49 (0) 40 890 660 29, E-mail: info@linngmbh.de, Website: www.linn.co.uk Linn Records Ltd Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK. Telephone: +44 (0) 141 303 5435, Facsimile: +44 (0) 141 303 5007, Helpline/Mail order: +44 (0) 141 303 5027, E-mail: records@linn.co.uk, Website: www.linnrecords.com © 2005, Linn Products Limited. All rights reserved. Linn, the Linn logo, ARTIKULAT, CHAKRA and AKTIV are trade marks of Linn Products Limited, registered in at least the UK and/or the EU. PACK 1095 (05/05) The above information is subject to change without prior notice. ARTIKULAT 350A 350 320A 320 340A 340 345 Type Fully integrated AKTIV 6-way floorstanding loudspeaker 6-way floorstanding loudspeaker with AKTIV bass Fully integrated AKTIV 4-way compact loudspeaker 4-way compact loudspeaker with AKTIV bass Fully integrated AKTIV 5-way centre-channel loudspeaker 5-way centre-channel loudspeaker with AKTIV bass 1-way AKTIV bass reinforcement loudspeaker Drive units 13 mm (0.5) 25 mm (1) 75 mm (3) domes 165 mm (6.5) upper bass 2 x 200mm (8) servo lower bass 13 mm (0.5) 25 mm (1) 75 mm (3) domes 165 mm (6.5) upper bass 2 x 200mm (8) servo lower bass 13 mm (0.5) dome 25 mm (1) dome 75 mm (3) dome 165 mm (6.5) bass 13 mm (0.5) dome 25 mm (1) dome 75 mm (3) dome 165 mm (6.5) bass 13 mm (0.5) dome 25 mm (1) dome 75 mm (3) dome 200 mm (8) upper bass 200 mm (8) servo bass 13 mm (0.5) dome 25 mm (1) dome 75 mm (3) dome 200 mm (8) upper bass 200 mm (8) servo bass 300mm (12) servo bass Operating volume 50 litres 50 litres 20 litres 20 litres 40 litres 40 litres 45 litres Efficiency - 87 dB for 1 Watt at 1 m - 87 dB for 1 Watt at 1 m - 87 dB for 1 Watt at 1 m - Crossover options Fully AKTIV (internal modules) Fully AKTIV (internal lower bass / external upper bass & 3K Array), AKTIV lower bass / passive upper bass & 3K Array Fully AKTIV (internal modules) Fully AKTIV (internal bass / external 3K Array) AKTIV bass / passive 3K Array Fully AKTIV (internal modules) Fully AKTIV (internal bass / external 3K Array) AKTIV bass / passive 3K Array Fully AKTIV Crossover points 105 Hz, 392 Hz, 3.8 kHz, 10.9 kHz 105 Hz, 392 Hz, 3.8 kHz, 10.9 kHz 392 Hz, 3.8 kHz, 10.9 kHz 392 Hz, 3.8 kHz, 10.9 kHz 105 Hz, 392 Hz, 3.8 kHz, 10.9 kHz 105 Hz, 393 Hz, 3.8 kHz, 10.9 kHz - Bass and treble shelf settings 19 Hz, 40 Hz, 80 Hz 19 Hz, 40 Hz, 80 Hz 50 Hz, 80 Hz, 100 Hz 50 Hz, 80 Hz, 100 Hz 19 Hz, 40 Hz, 80 Hz 19 Hz, 40 Hz, 80 Hz Adjustable from 10 - 235 Hz in 9 steps Nominal impedance - 4 Ω - 4 Ω - 4 Ω - Frequency Range 20 Hz - 33 kHz 20 Hz - 33 kHz 55 Hz - 33 kHz 55 Hz - 33 kHz 30 Hz - 33 kHz 30 Hz - 33 kHz 10 Hz - 235 Hz Mains Supply Frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz Mains Input Voltage (auto-sensing) 90 - 135 V 180 - 265 V 90 - 135 V 180 - 265 V 90 - 135 V 180 - 265 V 90 - 135 V 180 - 265 V 90 - 135 V 180 - 265 V 90 - 135 V 180 - 265 V 90 - 135 V 180 - 265 V Connection options - Up to 4-way by wire or amplifier - Up to 3-way by wire or amplifier - Up to 4-way by wire or amplifier - Magnetic shielding Ye s Ye s Ye s Ye s Ye s Ye s Ye s Weight 54 kg/ 119 lb 54 kg/ 119 lb 20 kg/ 43 lb 20 kg/ 43 lb 46.5 kg/ 102 lb 46.5 kg/ 102 lb 27 kg/ 60 lb Dimensions 1130 mm (H) x 312 mm (W) x 430 mm (D) 1130 mm (H) x 312 mm (W) x 430 mm (D) 473mm (H) x 292mm (W) x 410 mm (D) 472mm (H) x 292 mm (W) x 410 mm (D) 290mm (H) x 840 mm (W) x 400 mm (D) 290mm (H) x 840 mm (W) x 400 mm (D) 420 mm (H) x 491 mm (W) x 410 mm (D) Standard Finishes Rosenut, Maple, Cherry, Black Ash Rosenut, Maple, Cherry, Black Ash Rosenut, Maple, Cherry, Black Ash Rosenut, Maple, Cherry, Black Ash Rosenut, Maple, Cherry, Black Ash Rosenut, Maple, Cherry, Black Ash Black Ash, Maple, Cherry, Rosenut Special Finishes High gloss Maple, Cherry and Piano Black High gloss Maple, Cherry and Piano Black High gloss Maple, Cherry and Piano Black High gloss Maple, Cherry and Piano Black High gloss Maple, Cherry and Piano Black High gloss Maple, Cherry and Piano Black High gloss Maple, Cherry and Piano Black ARTIKULAT TECHNICAL SPECIFICATION A gorgeous, high performance stereo or multi-channel loudspeaker system
