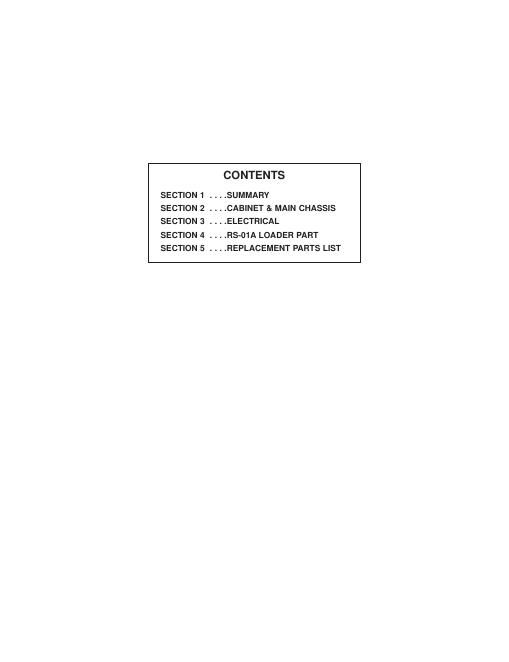

1-2 SECTION 1 SUMMARY CONTENTS NEW FUNCTIONS OF HDD/DVD-RECORDER ................................................................. 1-2 PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS .............. 1-3 SERVICING PRECAUTIONS .................................................................................................. 1-4 - General Servicing Precautions - Insulation Checking Prodedure - Electrostatically Sensitive Devices SERVICE INFORMATION FOR EEPROM IC SETTING ................................................. 1-5 SPECIFICATIONS ...................................................................................................................... 1-6
Page 2
1-3 NEW FUNCTIONS OF HDD/DVD-RECORDER - HDMI HDMI IS THE SPECIFICATION FOR THE HIGH-DEFINITION MULTIMEDIA INTERFACE. HDMI IS PROVID- ED FOR TRANSMITTING DIGITAL TELEVISION AUDIOVISUAL SIGNALS FROM HDD-DVD RECORDER TO TELEVISION SETS, OTHER VIDEO DISPLAYS. HDMI CAN CARRY HIGH QUALITY MULTI-CHANNEL AUDIO DATA AND CAN CARRY ALL STANDARD AND HIGH DEFINITION CONSUMER ELECTRONICS VIDEO FORMATS. CONTENT PROTECTION TECHNOLOGY IS AVAILABLE. HDMI CAN ALSO CARRY CONTROL AND STATUS INFORMATION IN BOTH DIRECTIONS. << OPERATING >> AUDIO, VIDEO AND AUXILIARY DATA IS TRANSMITTED ACROSS THE THREE TMDS DATA CHANNELS. THE VIDEO PIXEL CLOCK IS TRANSMITTED ON THE TMDS CLOCK CHANNEL AND IS USED BY THE RECEIVER AS A FREQUENCY REFERENCE FOR DATA RECOVERY ON THE THREE TMDS DATA CHAN- NELS. VIDEO DATA IS CARRIED AS A SERIES OF 24-BIT PIXELS ON THE THREE TMDS DATA CHANNELS. TMDS ENCODING CONVERTS THE 8BIT PER CHANNEL INTO THE 10BIT DC–BALANCED. VIDEO PIXEL RATES CAN RANGE FROM 25MHZ TO 165MHZ. THE VIDEO PIXELS CAN BE ENCODED IN EITHER RGB,YCBCR 4:4:4 OR YCBCR 4:2:2 FORMATS. IN ALL THREE CASES, UP TP 24 BITS PER PIXEL CAN BE TRANSFERRED. FAST DUBBING DUBBING MEANS A COPYING FUNCTION BETWEEN HDD TO DVD DISCS. COPYING BETWEEN HDD TO DVD IS A COMPLETELY DIGITAL PROCESS AND THEREFORE INVOLVES NO LOSS OF QUALITY IN THE AUDIO OR VIDEO. SO THIS MEANS THAT COPYING CAN BE CARRIED OUT AT THE MAXIMUM SPEED POSSIBLE. << DUBBING SPEED RATE >> NORMAL DUBBING : SPEED RATE MAX X1 FAST DUBBING : SPEED RATE MAX X4 WHEN FAST DUBBING FROM HDD TO DVD , THE SPEED OF COPYING DEPENDS ON THE RECORDING MODE AND THE KIND OF USING THE DVD DISC, AND THIS MODE IS NOT AVAILABLE FOR EDITED VIDEO TITLE IN HDD. WHEN FAST DUBBING FROM DVD TO HDD , ONLY AVAILABLE WHEN COPYING VR MODE DISC(DVD- RW) TO HDD , AND ONLY NORMAL DUBBING AVAILABLE WHEN COPYING VIDEO MODE DISC (DVD+R/RW, DVD-R) TO HDD
