Lg lpcbm 345 service manual
This is the 36 pages manual for lg lpcbm 345 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from lg lpcbm 345 service manual (Ocr-read)

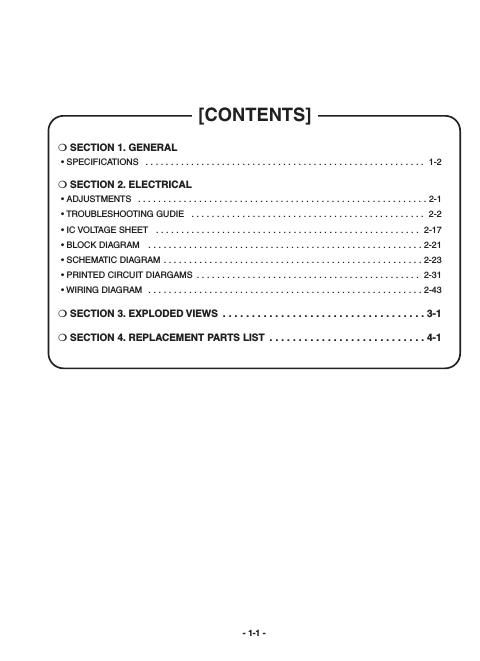

Page 1
- 1-2 - SECTION 1. GENERAL ❏SPECIFICATIONS MODEL LPC-LM340A/X, LPC-BM340A/X SECTION LPC-LM345A/X, LPC-BM345A/X Power supply Refer to the back panel of the unit. Power consumption 13W Mass 3.24kg External dimensions (W x H x D) 360 x 170 x 260mm Output Power 2.5W x 2 Speakers 8Ωx 2 Battery Operation DC 12V, eight C(R14) and four AA(R6) batteries (not supplied) Fequency response 100 ~18000Hz Signal-to-noise ratio 59dB T.H.D 0.7% Tuning Range 65~74MHz, 87.5~108MHz or 87.5 ~108MHz Intermediate Frequency 10.7MHz Antenna Telescopic antenna Tuning Range 522~1611kHz or 530 ~1610kHz Intermediate Frequency 450kHz Antenna Ferrite bar antenna Recording System 4 Tracks 2 channel stereo Frequency Response 125 ~8000Hz Signal to Noise Ratio 40/45dB (REC/PLAY) [General] [CD] [TAPE][TUNER] [AM] (MW) [FM] * Designs and specifications are subject to change without notice. Remote Control Operation Range Point the remote control at the remote sensor and press the buttons. Distance:About 23 ft (7 m)from the front of the remote sensor. Angle:About 30 °in each direction of the front of the remote sensor.
Page 2
- 2-1 - SECTION 2. ELECTRICAL ❏ADJUSTMENTS 1. TAPE DECK ADJUSTMENT DECK MODE TEST TAPE TEST POINT ADJUSTMENT ADJUST FOR DECK ADJUST PLAY BACK MTT-114 SPEAKER Output Azimuth adjusting screw STOP FWD: LEFT L/R Maximum RVS FWD: RIGHT RVS: LEFT 2. RECORD BIAS ADJUSTMENT DECK MODE TEST TAPE TEST POINT ADJUSTMENT DECK ADJUST FOR REC MODE MTT-5511 C241 L201AUTO-RVS 85kHz±5kHz AUTO-STOP 60kHz±5kHz
