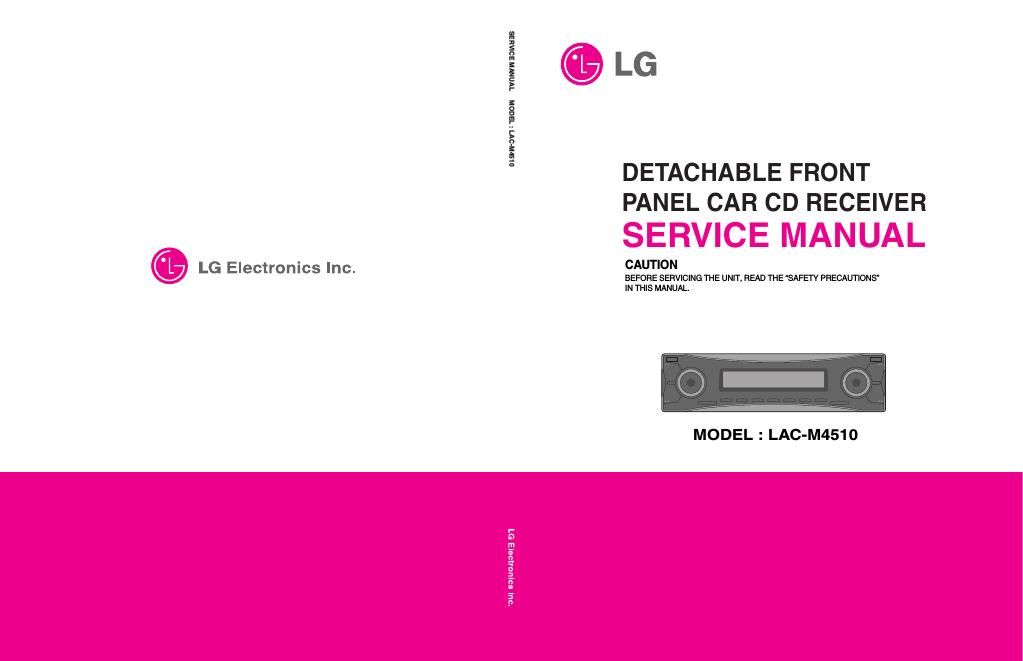

Lg lacm 4510 service manual
This is the 33 pages manual for lg lacm 4510 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from lg lacm 4510 service manual (Ocr-read)
Page 1
- 1-1 - ❍ SECTION 1. SUMMARY - SERVICING PRECAUTIONS.......................................................................................................... 1-2 - ESD PRECAUTIONS....................................................................................................................... 1-3 - SPECIFICATIONS........................................................................................................................... 1-4 ❍ SECTION 2. ELECTRICAL - ELECTRICAL TROUBLESHOOTING GUIDE................................................................................. 2-1 - WAVEFORMS OF MAJOR CHECK POINT.................................................................................... 2-6 - INTERNAL BLOCK DIAGRAM of ICs.............................................................................................. 2-7 - BLOCK DIAGRAM......................................................................................................................... 2-17 - SCHEMATIC DIAGRAM................................................................................................................ 2-19 - PRINTED CIRCUIT DIAGRAM...................................................................................................... 2-25 ❍ SECTION 3. CABINET MAIN CHASSIS & MECHANISM - EXPLODED VIEW........................................................................................................................... 3-1 ❍ SECTION 4. REPLACEMENT PARTS LIST .................................................................... 4-1 [CONTENTS]
Page 2
-1-2- ❏SERVICING PRECAUTIONS Always disconnect the power source before: 1) Removing or reinstalling any component, circuit board, module or any other instrument assembly. 2) Disconnecting or reconnecting any instrument electrical plug or other electrical connection. 3) Connecting a test substitute in parallel with an electrolytic capacitor in the instrument. CAUTION:A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard. Do not defeat any plug/socket B+ voltage interlocks with which instruments covered by this service manual might be equipped. ❸ Do not apply power to this instrument and or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed. ❹ Always connect a test instruments ground lead to the instrument chassis ground before connecting the test instrument positive lead. Always remove the test instrument ground lead last. 1) The service precautions are indicated or printed on the cabinet, chassis or components. When servicing, follow the printed or indicated service precautions and service materials. 2) The Components used in the unit have a specified conflammability and dielectric strength. When replacing any components, use components which have the same ratings. Components marked in the circuit diagram are important for safety or for the characteristics of the unit. Always replace with the exact components. 3) An insulation tube or tape is sometimes used and some components are raised above the printed writing board for safety. The internal wiring is sometimes clamped to prevent contact with heating components. Install them as they were. 4) After servicing always check that the removed screws, components and wiring have been installed correctly and that the portion around the service part has not been damaged. Further check the insulation between the blades of attachment plug and accessible conductive parts. SECTION 1. SUMMARY
