Lg ffh 286 ah service manual
This is the 49 pages manual for lg ffh 286 ah service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from lg ffh 286 ah service manual (Ocr-read)

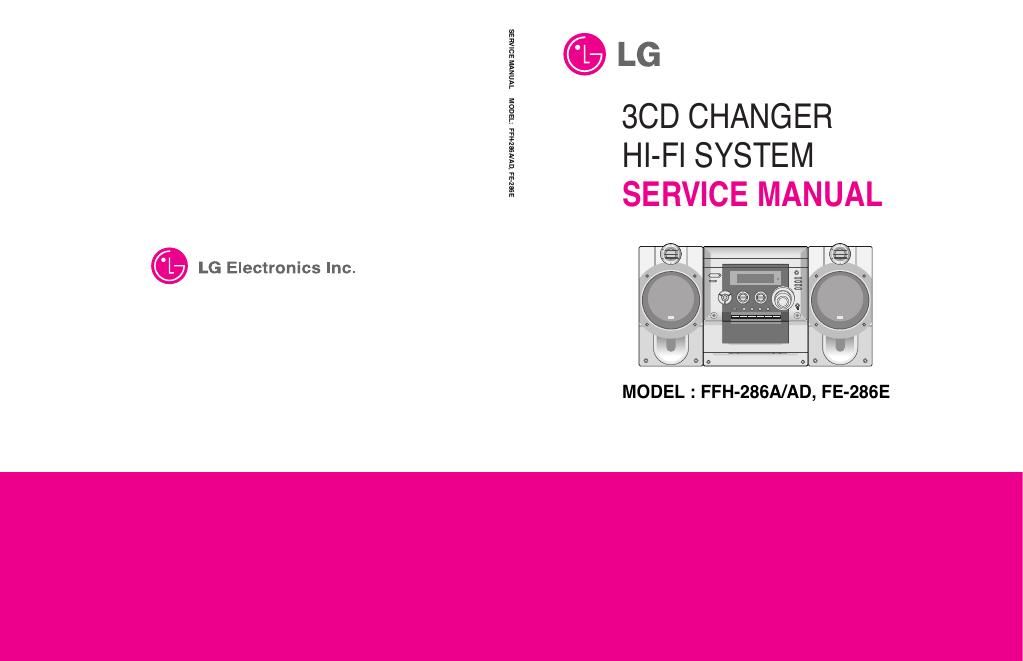

Page 1
- 1-1 - CONTENTS SECTION 1. GENERAL - SERVICING PRECAUTIONS.................................................................................................................... 1-2 - ESD PRECAUTIONS................................................................................................................................. 1-4 - SPECIFICATIONS..................................................................................................................................... 1-5 SECTION 2. ELECTRICAL - ADJUSTMENTS......................................................................................................................................... 2-1 - TROUBLESHOOTING............................................................................................................................... 2-3 - WAVEFORMS OF MAJOR CHECK POINT.............................................................................................. 2-7 - BLOCK DIAGRAM................................................................................................................................... 2-17 - SCHEMATIC DIAGRAMS........................................................................................................................ 2-19 - WIRING DIAGRAM.................................................................................................................................. 2-27 - PRINTED CIRCUIT DIARGAMS.............................................................................................................. 2-29 - INTERNAL BLOCK DIAGRAM OF ICs................................................................................................... 2-38 - REPAIRS REGARDING CD MECHANISM............................................................................................. 2-45 SECTION 3. EXPLODED VIEWS - CABINET AND MAIN FRAME SECTION ................................................................................................. 3-1 - TAPE DECK MECHANISM: AUTO STOP DECK(OPTIONAL).................................................................. 3-3 - TAPE DECK MECHANISM: AUTO REVERSE DECK................................................................................ 3-5 - CD MECHANISM........................................................................................................................................ 3-7 SECTION 4. SPEAKER.................................................................................................................. 4-1 SECTION 5. REPLACEMENT PARTS LIST.................................................................................. 5-1
Page 2
SECTION 1. GENERAL SERVICING PRECAUTIONS NOTES REGARDING HANDLING OF THE PICK-UP 1. Notes for transport and storage 1) The pick-up should always be left in its conductive bag until immediately prior to use. 2) The pick-up should never be subjected to external pressure or impact. 2. Repair notes 1) The pick-up incorporates a strong magnet, and so should never be brought close to magnetic materials. 2) The pick-up should always be handled correctly and carefully, taking care to avoid external pressure and impact. If it is subjected to strong pressure or impact, the result may be an operational malfunction and/or damage to the printed-circuit board. 3) Each and every pick-up is already individually adjusted to a high degree of precision, and for that reason the adjustment point and installation screws should absolutely never be touched. 4) Laser beams may damage the eyes! Absolutely never permit laser beams to enter the eyes! Also NEVER switch ON the power to the laser output part (lens, etc.) of the pick-up if it is damaged. 5) Cleaning the lens surface If there is dust on the lens surface, the dust should be cleaned away by using an air bush (such as used for camera lens). The lens is held by a delicate spring. When cleaning the lens surface, therefore, a cotton swab should be used, taking care not to distort this. 6) Never attempt to disassemble the pick-up. Spring by excess pressure. If the lens is extremely dirty, apply isopropyl alcohol to the cotton swab. (Do not use any other liquid cleaners, because they will damage the lens.) Take care not to use too much of this alcohol on the swab, and do not allow the alcohol to get inside the pick-up. - 1-2 - Storage in conductive bag Drop impact NEVER look directly at the laser beam, and dont let contact fingers or other exposed skin. Magnet How to hold the pick-upPressure Pressure Cotton swab Conductive Sheet
