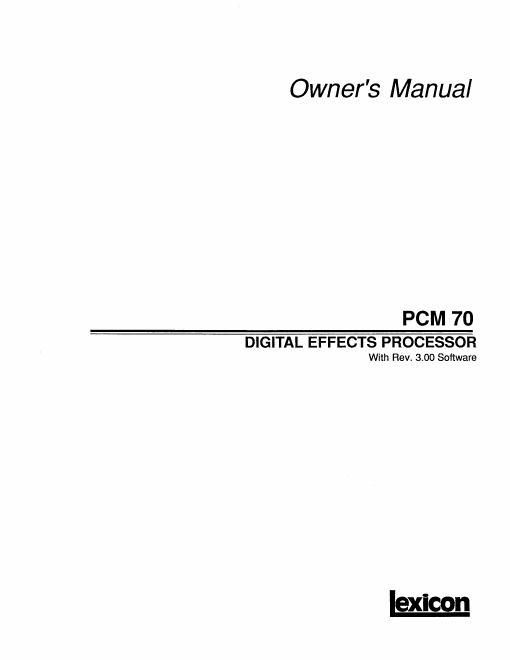

Lexicon PCM70 OM

This is the 67 pages manual for lexicon PCM70 OM.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 67

Extracted text from lexicon PCM70 OM (Ocr-read)

Page 2

Unpacking and Inspection
Alter unpacking the PCM 70, save all packing materials in case you ever need to ship the unit. Thoroughly

inspect the PCM 70 and its packing materials for signs of damage in shipment. Reprt any damage to the
carrier at once.

Precautions

The Lexicon POM 70 is a rugged device with extensive electronic protection. However, you should observe
the same reasonable precautions that apply to any piece of audio equipment.

- Always use the correct line voltage. Refer to Chapter 1 of this manual for power requirements.

- Don't install the PCM 70 in an unventilated rack, or directly above heat-producing equipment such as power
ampliﬁers. Maximum ambient operating temperature is 35°C (95°F).

- Never attach audio power amplifier outputs directly to any oi the PCM 70's connectors.

- Beiore turning the PCM 70 on or oil, mute your monitor speakers to avoid possible damage from transients.
- To prevent fire or shock hazard, do not expose the PCM 70 to rain or moisture.

Notice

Lexicon reserves the right to make improvements in this manual and the product it describes at any time and
without notice or obligation.

This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or
transmitted by any means or in any form, without prior consent in writing from Lexicon.

Printed in the United States of America

This manual accompanies
PCM 70 Software Version 3.00
Lexicon Part # 070-04971

Rev 1.1 03/87
