Lexicon IONIX FW810S manual 18 0489 A
This is the 28 pages manual for lexicon IONIX FW810S manual 18 0489 A.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from lexicon IONIX FW810S manual 18 0489 A (Ocr-read)

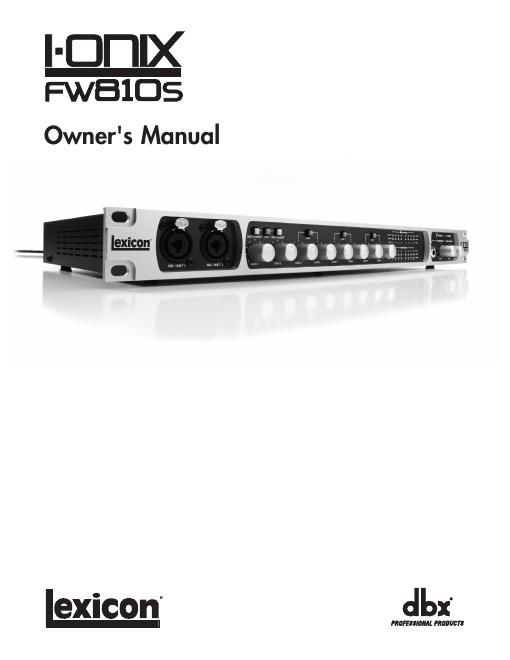

Page 1
IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING: KEEP THESE INSTRUCTIONS HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS THE APPARATUS SHALL NOT bE ExPOSED TO DRIPPING OR SPLASHING LIqUID AND NO ObjECT FILLED WITHI LIqUID, SUCH AS vASES, SHALL bE PLACED ON THE APPARA - TUS. CLEAN ONLY WITH A DRY CLOTH. DO NOT bLOCK ANY OF THE vENTILATION OPENINGS. INSTALL IN ACCORDANCE WITH THE MANUFACTURERS INSTRUC - TIONS. DO NOT INSTALL NEAR ANY HEAT SOURC - ES SUCH AS RADIATORS, HEAT REGISTERS, STOvES, OR OTHER APPARATUS (INCLUD - ING AMPLIFIERS) THAT PRODUCE HEAT. ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED bY THE MANUFACTURER. UNPLUG THIS APPARATUS DURING LIGHT - NING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME. Do not defeat the safety purpose of the polar - ized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or third prong are provided for your safety. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Use only with the cart stand, tripod bracket, or table specified by the manufacture, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Refer all servicing to to qualified service person - nel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. POWER ON/OFF SWITCH: The Power switch used in this piece of equipment DOES NOT break the connection from the mains. MAINS DISCONNECT: The plug shall remain readily operable. For rack-mount or installation where plug is not accessible, an all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated into the electrical installation of the rack or building. FOR UNITS EqUIPPED WITH ExTERNALLY ACCESSIbLE FUSE RECEPTACLE: Replace fuse with same type and rating only. MULTIPLE-INPUT vOLTAGE: This equipment may require the use of a different line cord, attachment plug, or both, depending on the avail - able power source at installation. Connect this equipment only to the power source indicated on the equipment rear panel. To reduce the risk of fire or electric shock, refer servicing to quali - fied service personnel or equivalent. Safety InStructIOnS Notice For customers iF Your uNit is equipped With A poWer cord. WArNiNG: this AppLiANce shALL Be coNNected to A mAiNs socKet outLet With A protectiVe eArthiNG coNNectioN. the cores in the mains lead are coloured in accordance with the following code: GREEN and YELLOW - Earth BLUE - Neutral BROWN - Live As colours of the cores in the mains lead of this appliance may not cor - respond with the coloured markings identifying the terminals in your plug, proceed as follows: - the core which is coloured green and yellow must be connected to the terminal in the plug marked with the letter e, or with the earth symbol, or coloured green, or green and yellow.- the core which is coloured blue must be connected to the terminal marked N or coloured black.- the core which is coloured brown must be connected to the terminal marked L or coloured red. this equipment may require the use of a different line cord, attachment plug, or both, depending on the available power source at installation. if the attachment plug needs to be changed, refer servicing to qualified service personnel who should refer to the table below. the green/yellow wire shall be connected directly to the units chassis. CONDUCTOR WIRE COLORNormal Alt L LIVE BROWN BLACK N NEUTRAL BLUE WHITE E EARTH GND GREEN/YEL GREEN WARNING: if the ground is defeated, certain fault conditions in the unit or in the system to which it is connected can result in full line voltage between chassis and earth ground. severe injury or death can then result if the chassis and earth ground are touched simultaneously.
Page 2
IMPORTANT SAFETY INSTRUCTIONS DecLaratIOn Of cOnfOrMIty manufacturers Name: Lexicon ® manufacturers Address: 8760 s. sandy parkway sandy, utah 84070, usA declares that the product: product name: i -oNiX FW810s Note: product name may be suffixed by the letters eu. product option: None conforms to the following product specifications: safety: iec 60065-01 + Amd. 1 emc: eN 55013 (2001+A1) eN 55020 (1998) supplementary information: the product herewith complies with the requirements of the Low Voltage directive 2006/95/ec and the emc directive 2004/108/ec. Vice president of engineering 8760 s. sandy parkway sandy, utah 84070, usA date: october 24, 2008 european contact: Your local Lexicon sales and service office or harman music Group 8760 south sandy parkway sandy, utah 84070, usA ph: (801) 566-8800 Fax: (801) 566-7005 If y ou w an t to dis pose th is p ro du ct, d o n ot mix it wit h gene ra l ho use ho ld w ast e. T here is a sepa rate collectio n sys te m fo r u se d e lec tr o nic p rod uct s in acco rd ance w ith leg islati on th at r eq uir es prope r tr ea tm ent, r ec ov ery a nd r ecycl ing. Private household in the 25 member states of the EU, in Switzerland and Norwa y ma y return their used electr onic products free of charge to designated collection facilities or to a retailer (if you pur chase a similar ne w one). F or Countries not mentioned abo ve , please contact y our local authorities f or a correct method of disposal. By doing so you will ensur e that your disposed product underg oes the necessar y treatment, r eco ver y and r ecycling and thus pr event potential negativ e effects on the en vironment and human health. eLectrOMaGnetIc cOMP atIBILIty this unit conforms to the product specifications noted on the Declaration of Conformity . operation is subject to the following two conditions: - this device may not cause harmful interference, and - this device must accept any interference received, including interference that may cause undesired operation. operation of this unit within significant electromagnetic fields should be avoided. - use only shielded interconnecting cables. U.K. MAINS PLUG WARNING A molded mains plug that has been cut off from the cord us unsafe. discard the mains plug at a suitable disposal facility. NeVer uNder ANY circumst ANces shouLd You iNsert A dAmAGed or cut mAiNs pLuG iNto A 13 Amp poWer socKet. do not use the mains plug without the fuse cover in place. replaceent fuse covers can be obtained from your local retailer. replacement fuses are 13 amps and must be AstA approved to Bs1362.
