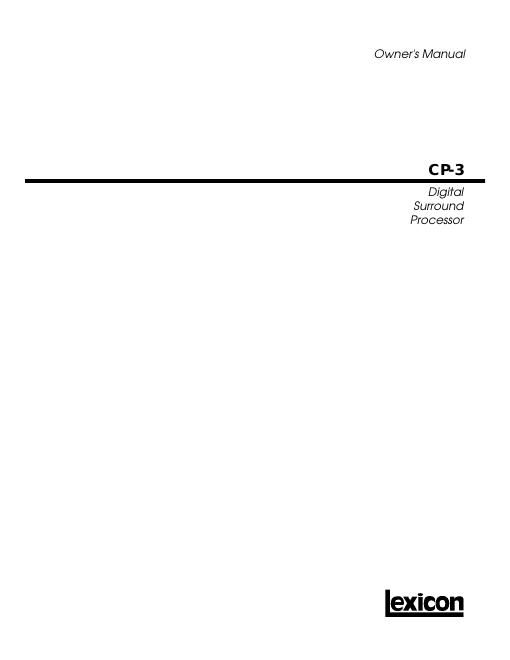

Lexicon cp 3 owners manual
This is the 59 pages manual for lexicon cp 3 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from lexicon cp 3 owners manual (Ocr-read)
Page 1
LexiconLexicon Part #070-08342 Rev 1Printed in the United States of America Lexicon, Inc.- 3 Oak Park Bedford, MA 01730 USA Tel 781-280-0300 Fax 781-280-0490 Acknowledgements The CP-3 is manufactured under license from Dolby Laboratories Licensing Corporation. Additionally licensed under one or more of the following patents: U.S. numbers 3,632,886, 3,746,792 and 3,959,590; Canadian numbers 1,004,603 and 1,037,877. "Dolby" and the double- D symbol are trademarks of Dolby Laboratories Licensing Corporation. The CP-3 is manufactured under license from LucasArts Entertainment Company. "THX" and "Home THX Cinema" are trademarks of LucasArts Entertainment Company. "Auto-Azimuth" and the A-Z logo are trademarks of Lexicon, Inc. Copyright ©1991 Lexicon. Inc. All Rights Reserved. Lexicon Patent: U.S. no. 4, 862, 502; other patents pending on the CP-3. Unpacking and Inspection After unpacking the CP-3, save all packing materials in case you ever need to ship the unit. Thoroughly inspect the CP-3 and packing materials for signs of damage. Remove the adhesive protective film from the CP-3 front- panel lens. Report any shipment damage to the carrier at once; report equipment malfunction to your dealer.AUTO AZIMUTHPrecautions This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This triangle, which appears on your component, alerts you to important operating and main- tenance instructions in this ac- companying literature.This triangle, which appears on your component, alerts you to the presence of uninsulated, dangerous voltage inside the enclosure... voltage that may be sufficient to constitute a risk of shock. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE.WARNING: DO NOT DEFEAT OR REMOVE GROUND PIN ON THE POWER PLUG.
Page 2
Safety Suggestions Read Instructions Read all safety and operating instruc- tions before operating the unit. Retain Instructions Keep the safety and operating instruc- tions for future reference. Heed Warnings Adhere to all warnings on the unit and in the operating instructions. Follow Instructions Follow operating and use instructions. Heat Keep the unit away from heat sources such as radia- tors, heat registers, stoves, etc., including amplifiers which produce heat. Ventilation Make sure that the location or position of the unit does not interfere with its proper ventilation. For example, the unit should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a cabinet which impedes the flow of air through the ventilation openings. Wall or Ceiling Mounting Do not mount the unit to a wall or ceiling except as recommended by the manufacturer. Power Sources Connect the unit only to a power supply of the type described in the operating instructions, or as marked on the unit. Grounding or Polarization* Take precautions not to defeat the grounding or polarization of the units power cord. *Not applicable in Canada. Power Cord Protection Route power supply cords so that they are not likely to be walked on or pinched by items placed on or against them, paying particular attention to cords at plugs, convenience receptacles, and the point at which they exit from the unit. Nonuse Periods Unplug the power cord of the unit from the outlet when the unit is to be left unused for a long period of time. Water and Moisture Do not use the unit near water - for example, near a sink, in a wet basement, near a swimming pool, near an open window, etc. Object and liquid entry Do not allow objects to fall or liquids to be spilled into the enclosure through openings. Cleaning The unit should be cleaned only as recommended by the manufacturer. Servicing Do not attempt any service beyond that described in the operating instructions. Refer all other service needs to qualified service personnel. Damage requiring service The unit should be serviced byqualified service personnel when: the power supply cord or the plug has been damaged, objects have fallen, or liquid has been spilled into the unit, the unit has been exposed to rain, the unit does not appear to operate normally or exhibits a marked change in performance, the unit has been dropped, or the enclosure damaged. Outdoor Antenna Grounding If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the Na- tional Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, loca- tion of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See figure below. Power Lines An outside antenna should be located awayfrom power lines.
